Fog/Driving Lamp
Component Connector End Views

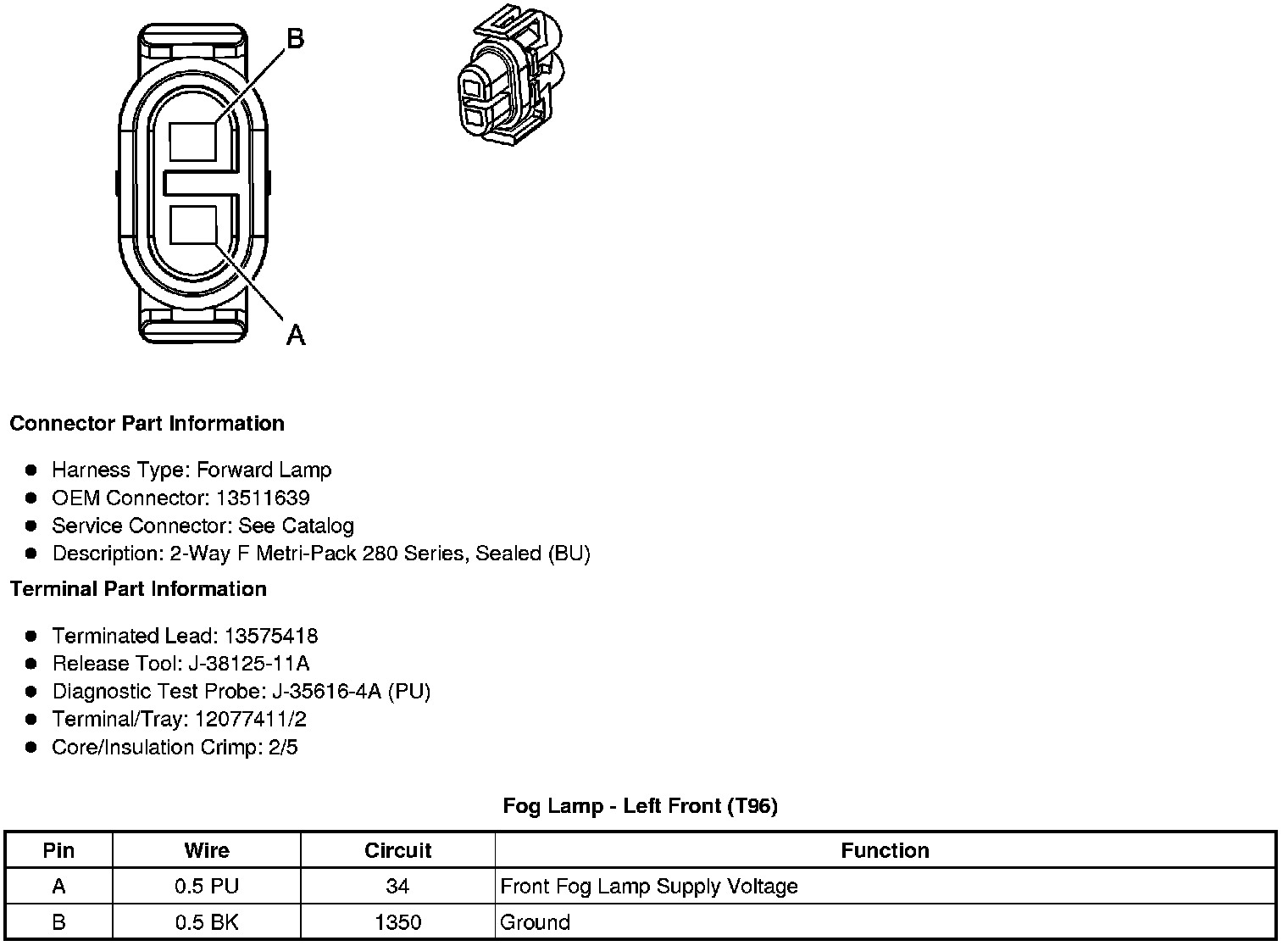

Fog Lamp - Left Front (T96)

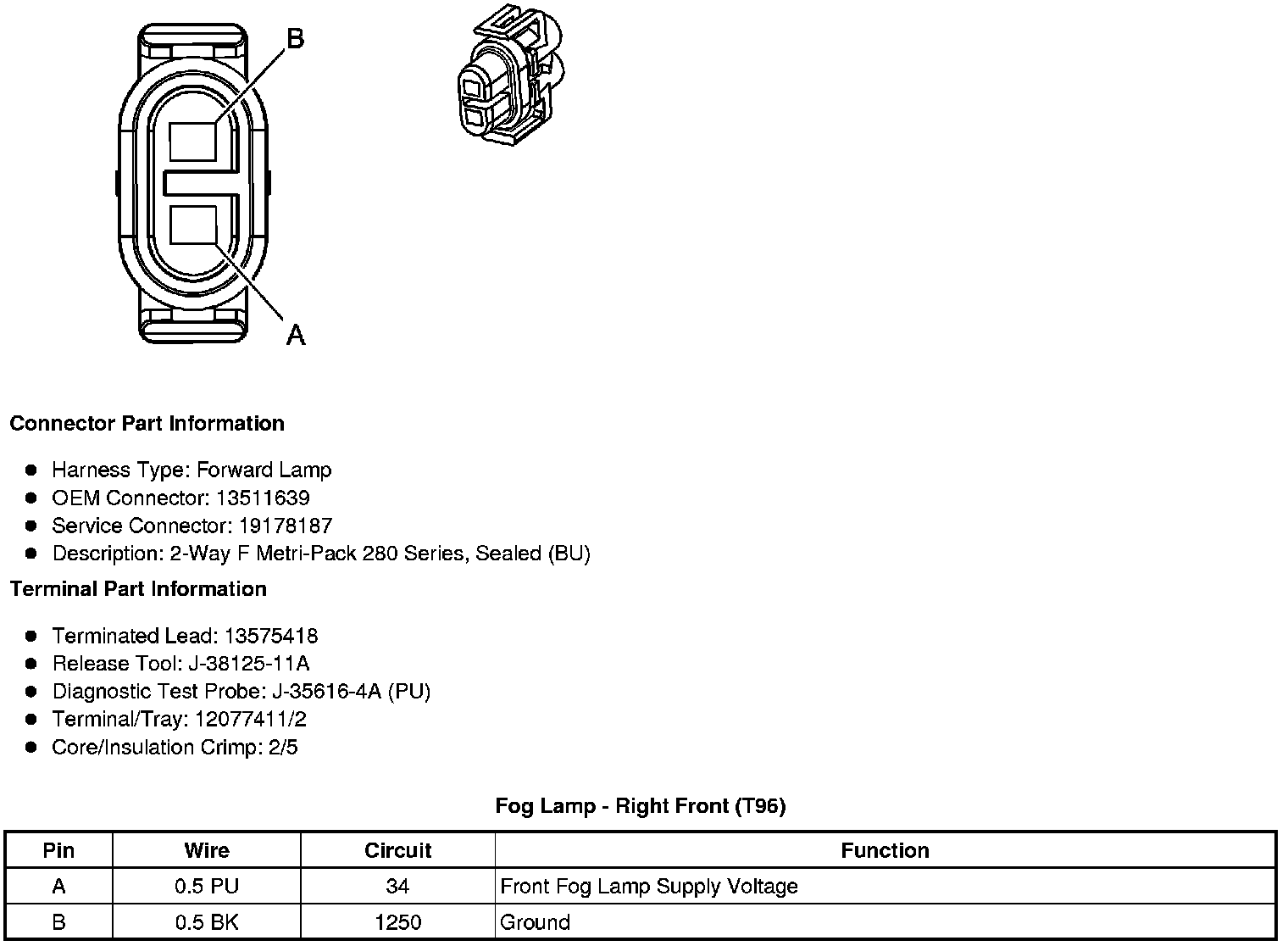

Fog Lamp - Right Front (T96)
