Turn Signal Switch




Component Connector End Views

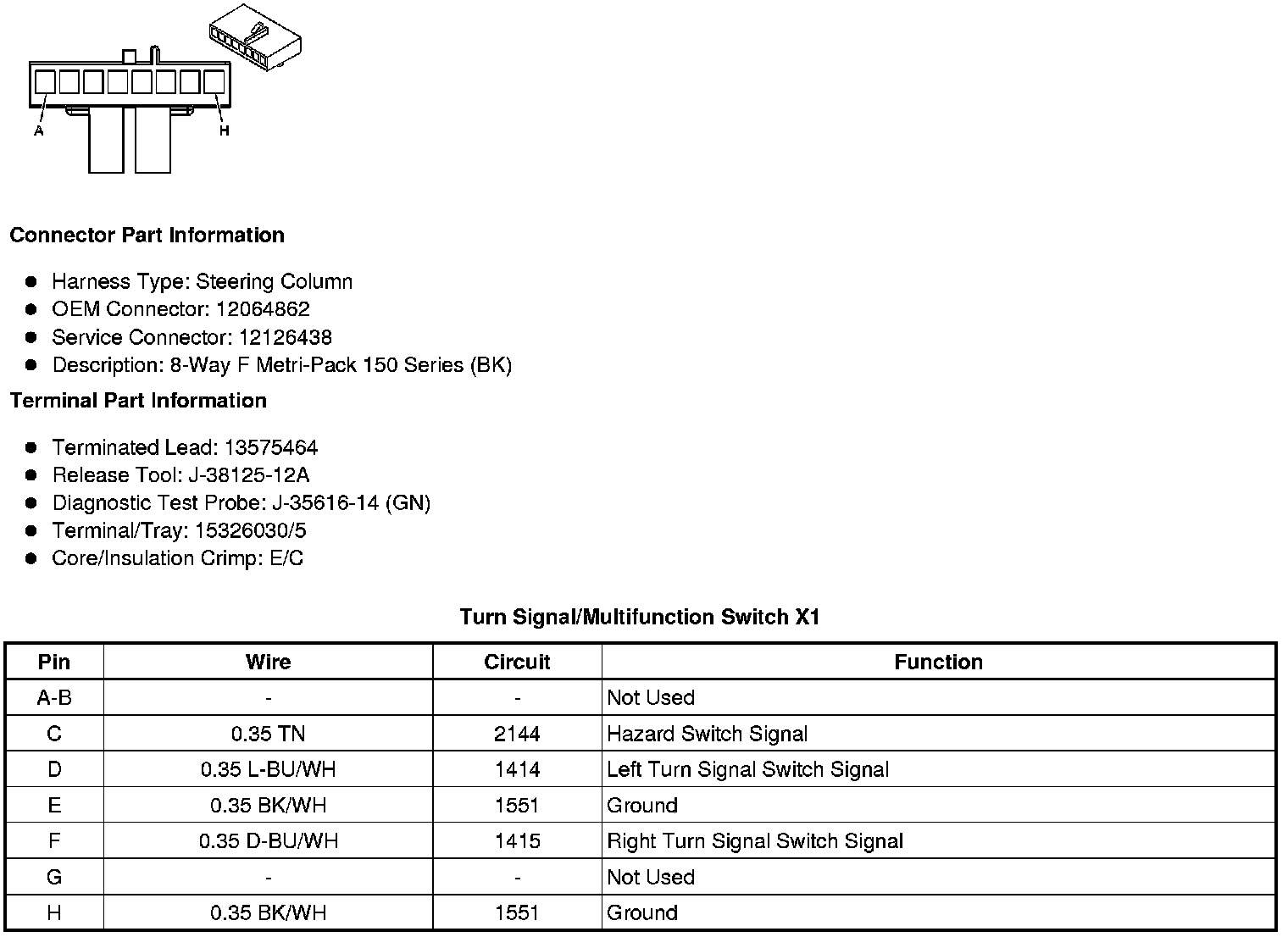

Turn Signal/Multifunction Switch X1

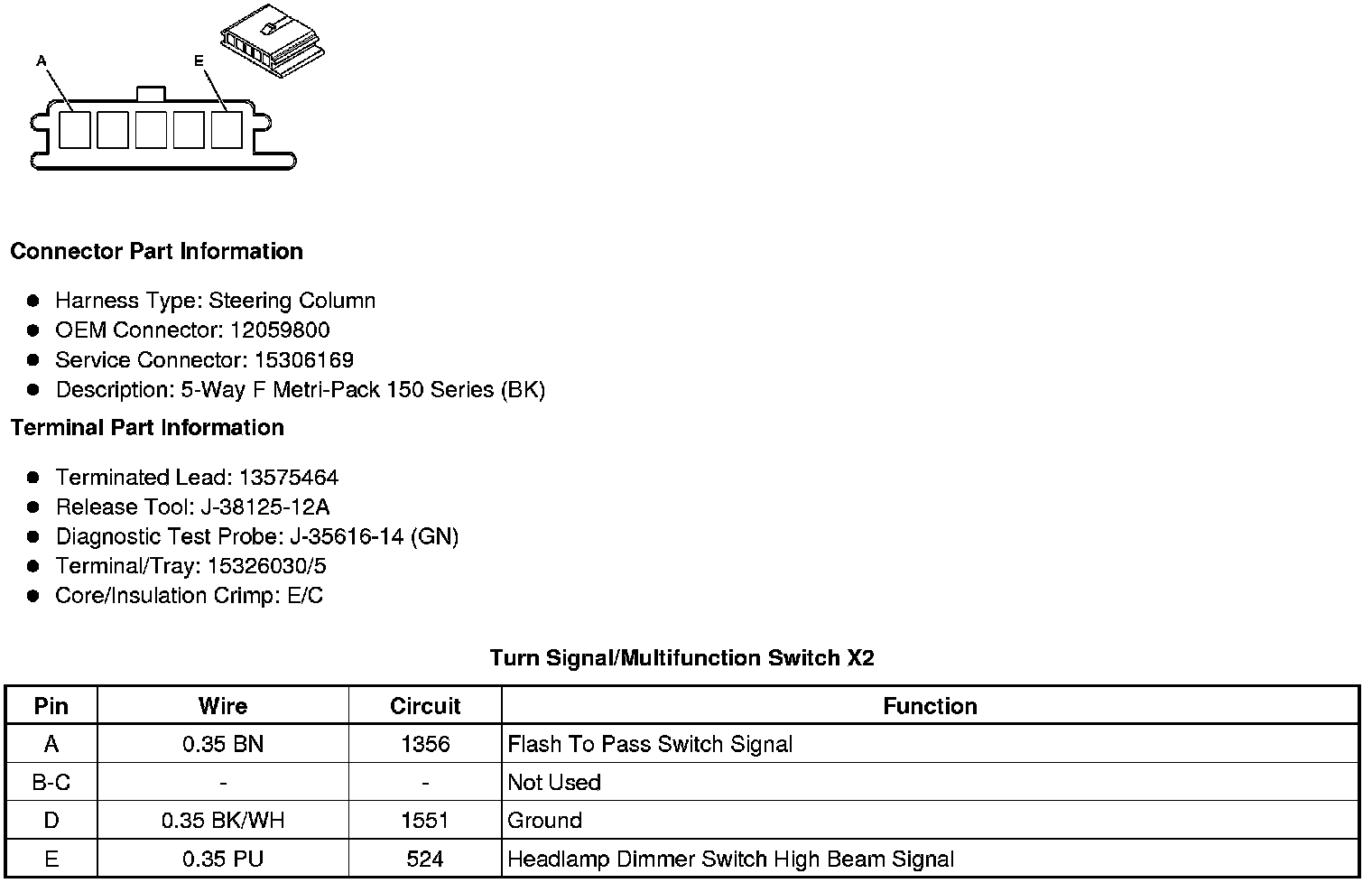

Turn Signal/Multifunction Switch X2





Component Connector End Views

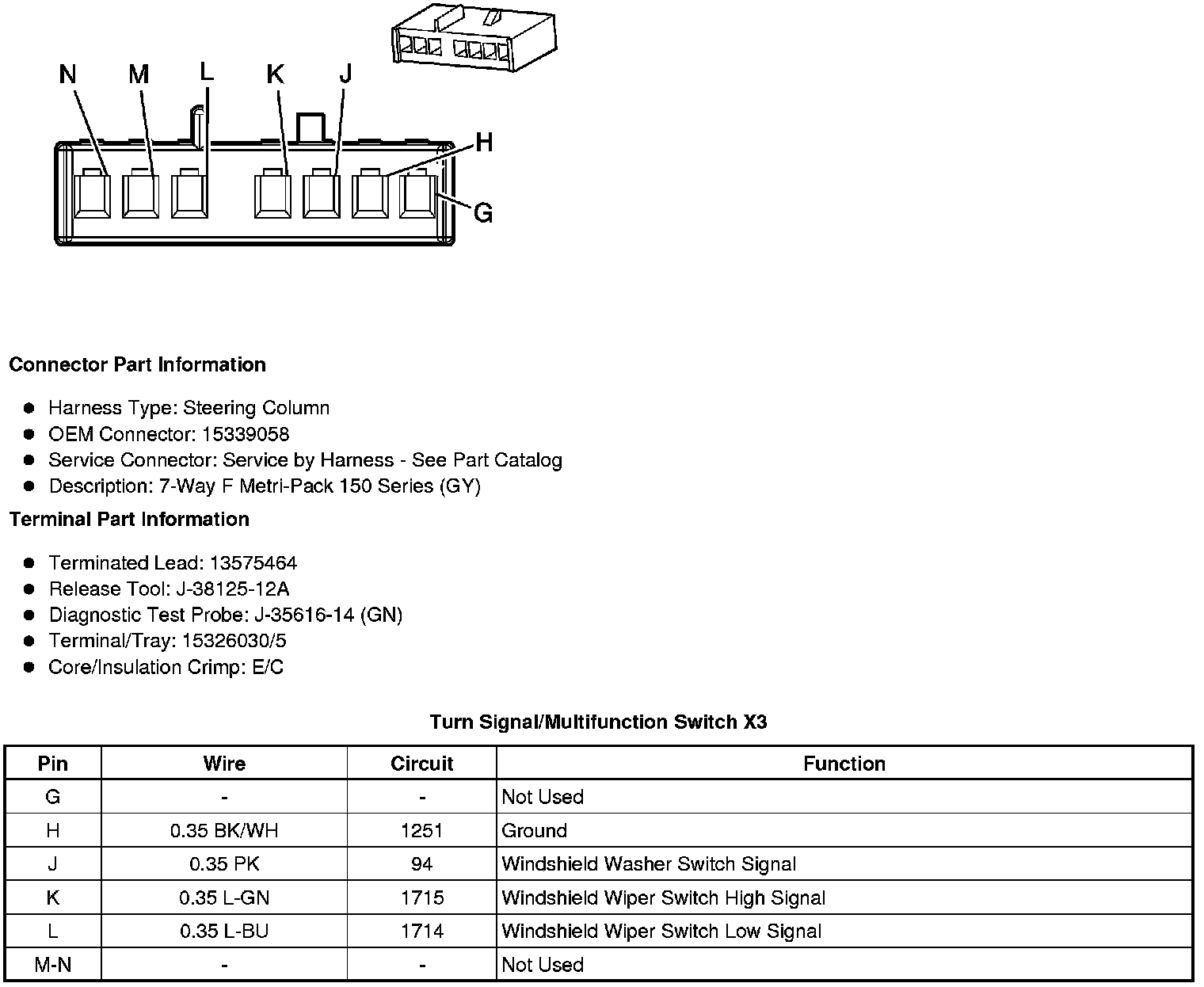

Turn Signal/Multifunction Switch X3
