Control Assembly: Locations




Harness Routing Views

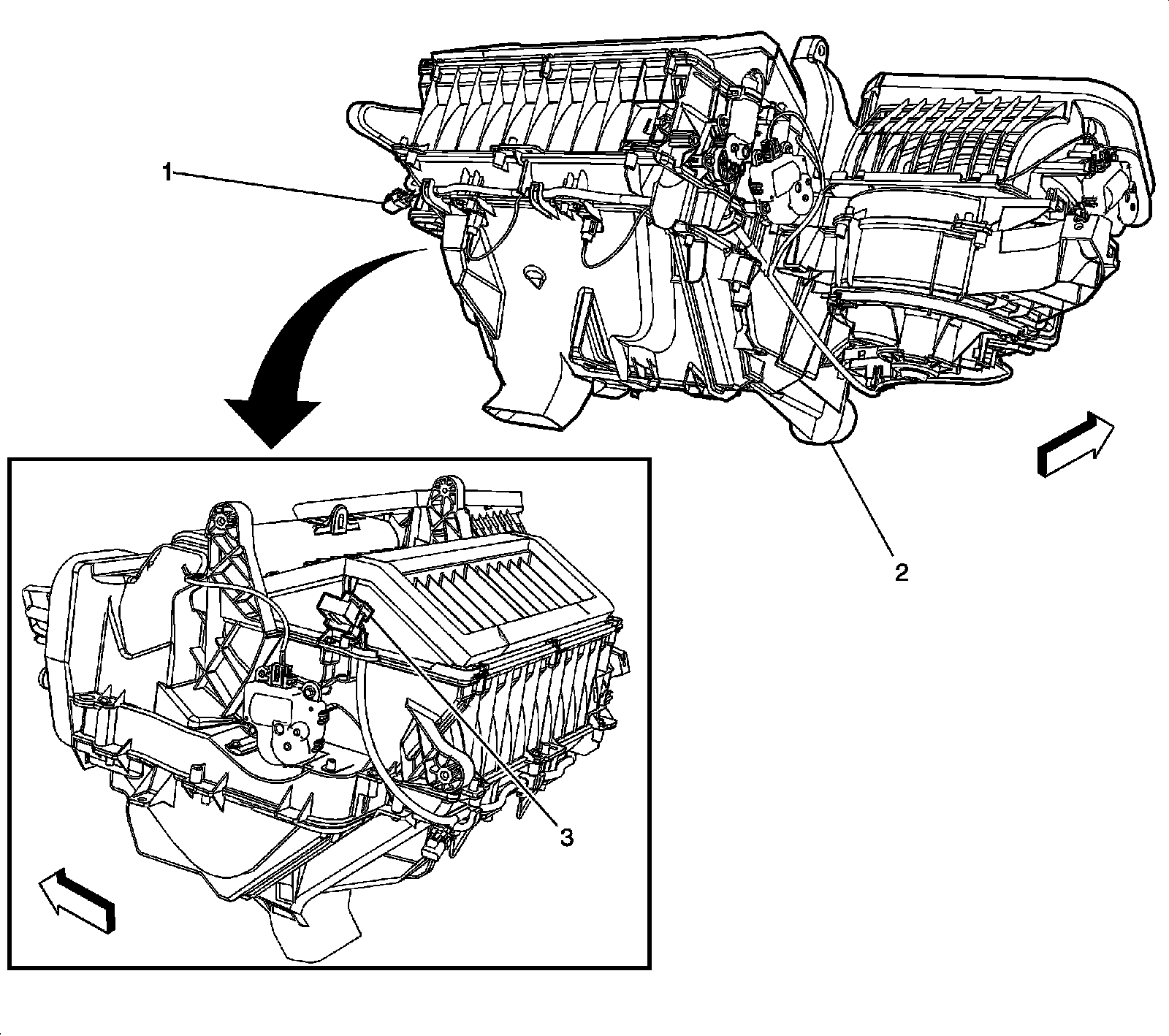

HVAC Module Wiring Harness Routing




1 - X210
2 - HVAC Module
3 - HVAC Control Module - X2
