Rear Toe Adjustment

Rear Toe Adjustment

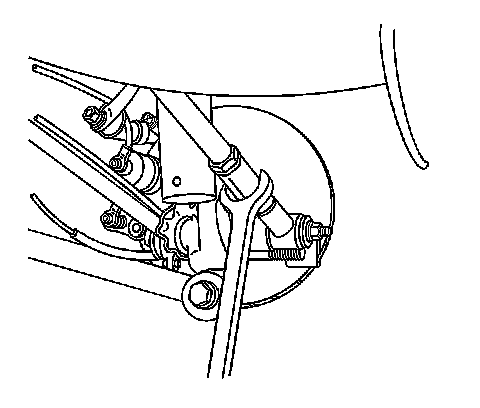

1. Loosen the jam nuts at the rear wheel spindle rod - rear.

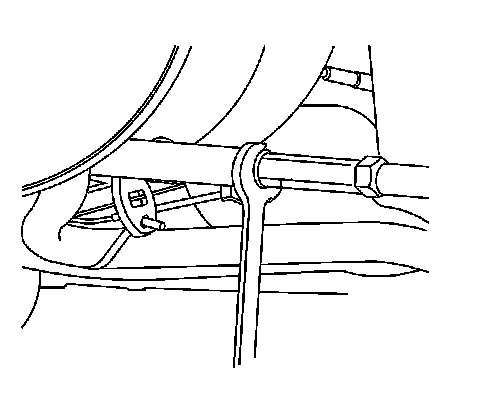

2. Turn the adjusting nut to change the toe angle.
3. Adjust the toe to the proper setting. Refer to Wheel Alignment Specifications (Wheel Alignment Specifications).





Caution: Refer to Fastener Caution (Fastener Caution).

4. Tighten the jam nuts on the rear wheel spindle rod - rear.

Tighten the rear wheel spindle rod end jam nuts to 70 Nm (52 lb ft).
