Engine Oil: Service and Repair

Engine Oil and Oil Filter Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

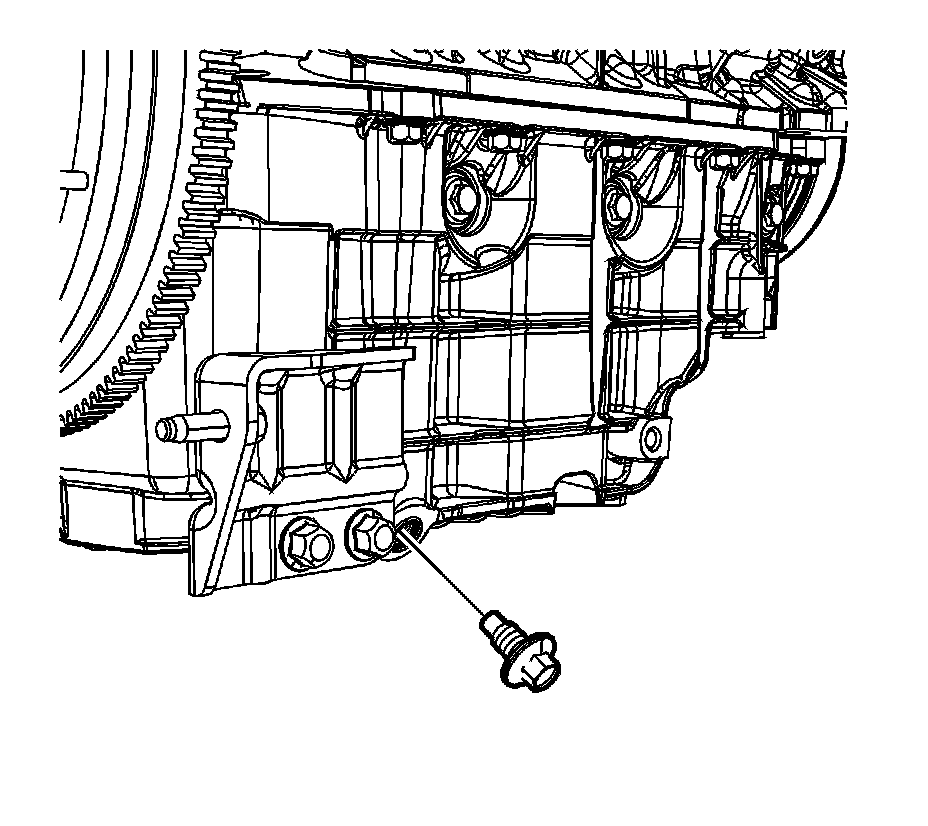

2. Remove the oil pan drain plug.
3. Allow the engine oil to drain completely.

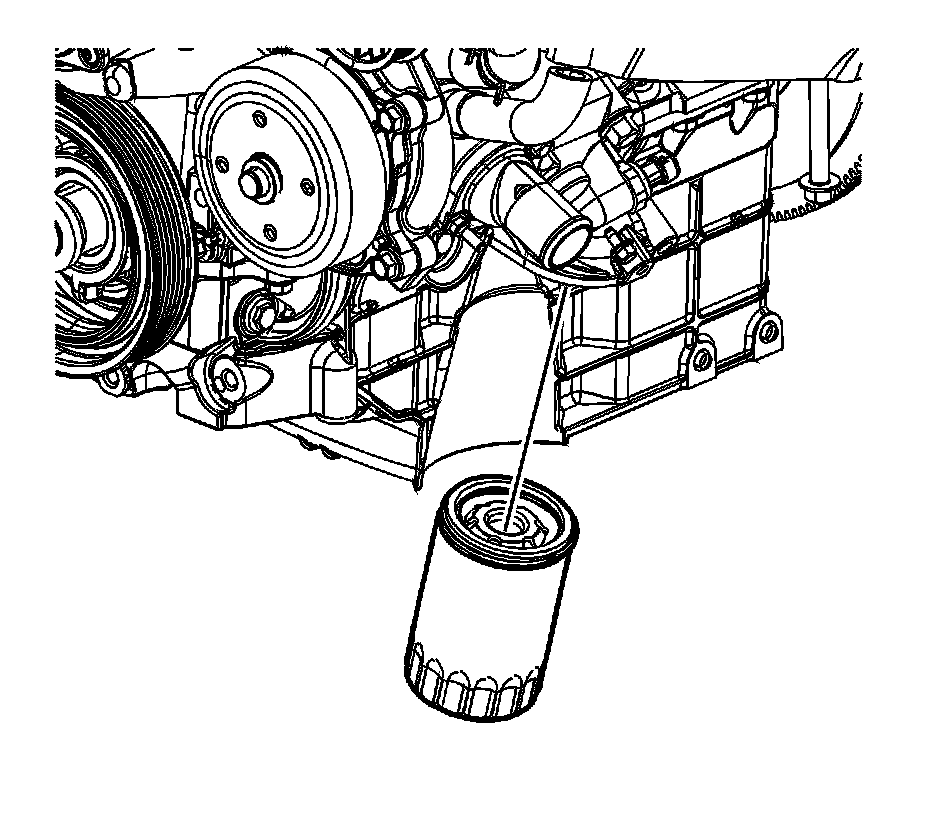

4. Remove the oil filter.

Installation Procedure




1. Install the oil filter.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the oil pan drain bolt.

Tighten the bolt to 26 Nm (19 lb ft).

3. Lower the vehicle.
4. Fill the engine with oil to the appropriate level.
5. Start engine and inspect for leaks.
