Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure




1. Remove the left instrument panel (I/P) sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Instrument Panel Insulator Panel Replacement - Left Side).

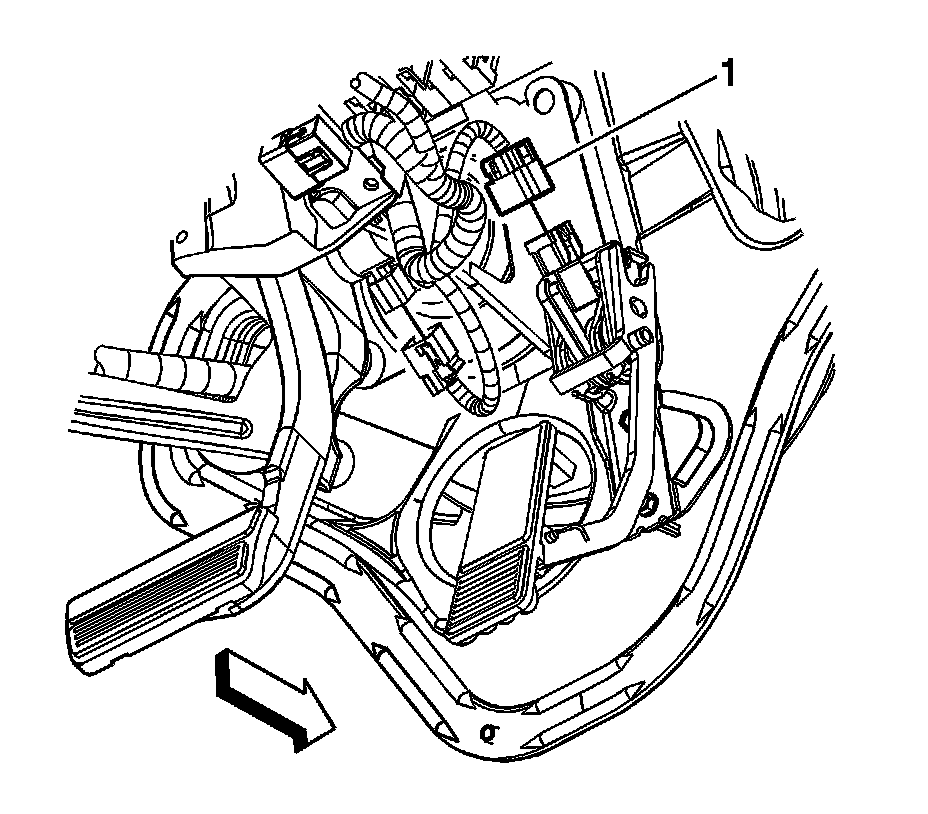

2. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).

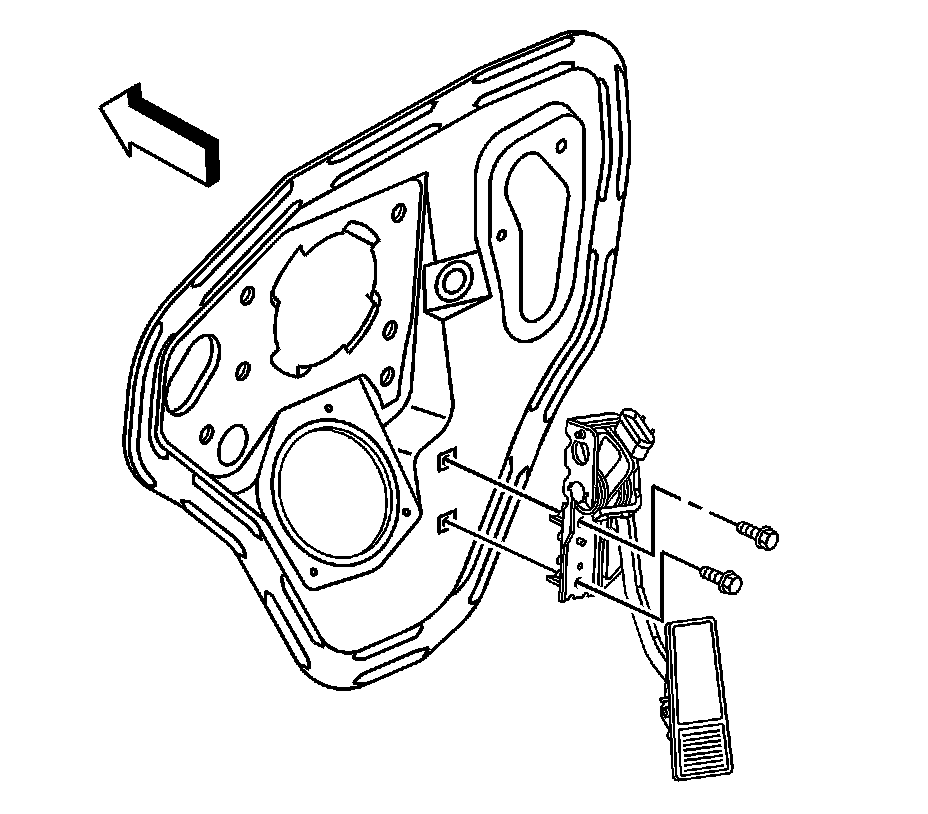

3. Remove the APP sensor assembly bolts.
4. Remove the APP sensor assembly from the vehicle.

Installation Procedure




1. Position the APP sensor assembly to the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the APP sensor assembly bolts.

Tighten the bolts to 5 Nm (44 lb in).




3. Connect APP sensor electrical connector (1).
4. Install the left I/P sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Instrument Panel Insulator Panel Replacement - Left Side).
