Battery Current Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

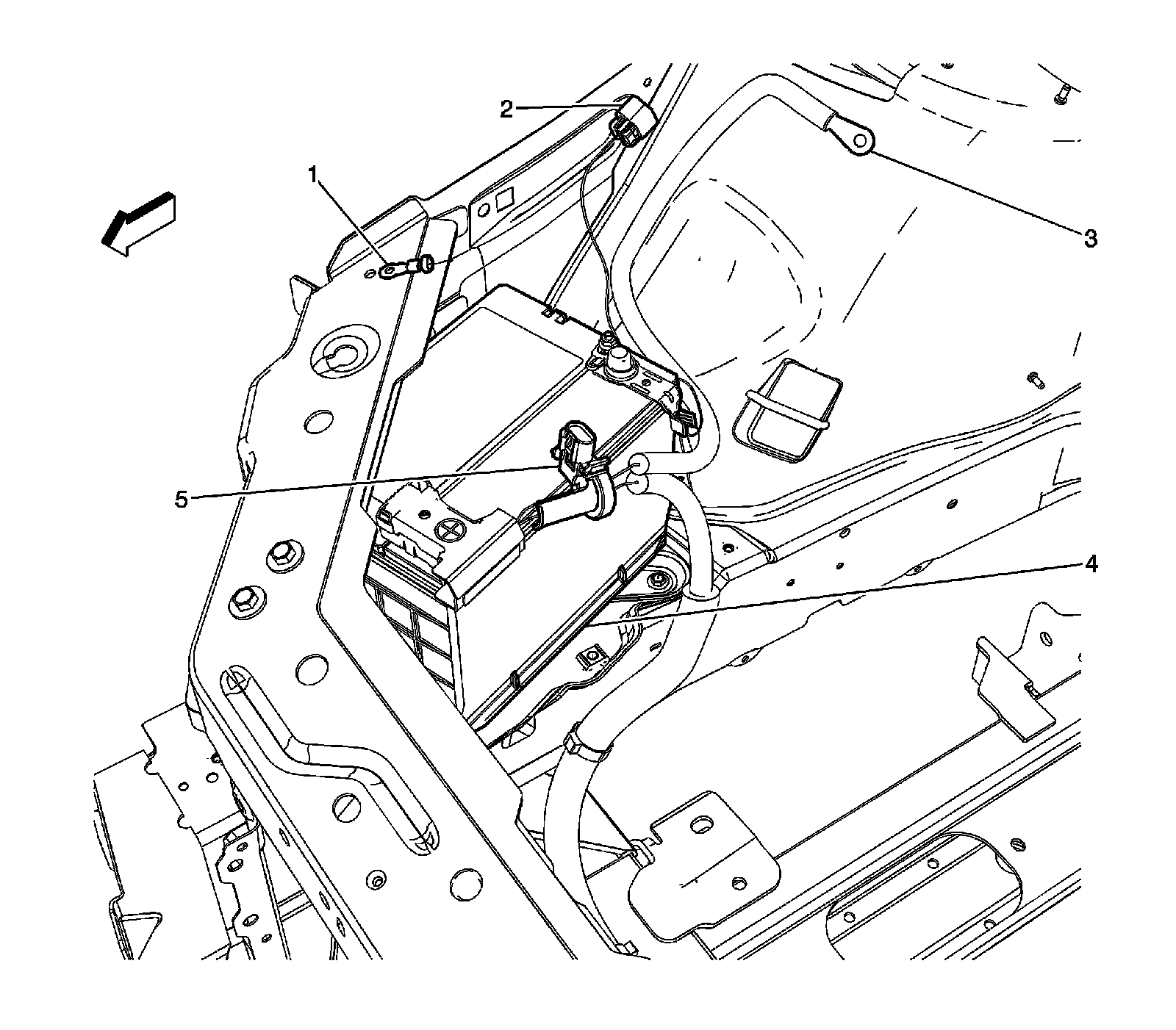

Right Front of the Engine Compartment Components (2 of 2)




1 - G102
2 - X105
3 - Fuse Block - Underhood Positive Battery Cable Terminal
4 - Battery
5 - Battery Current Sensor
