Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

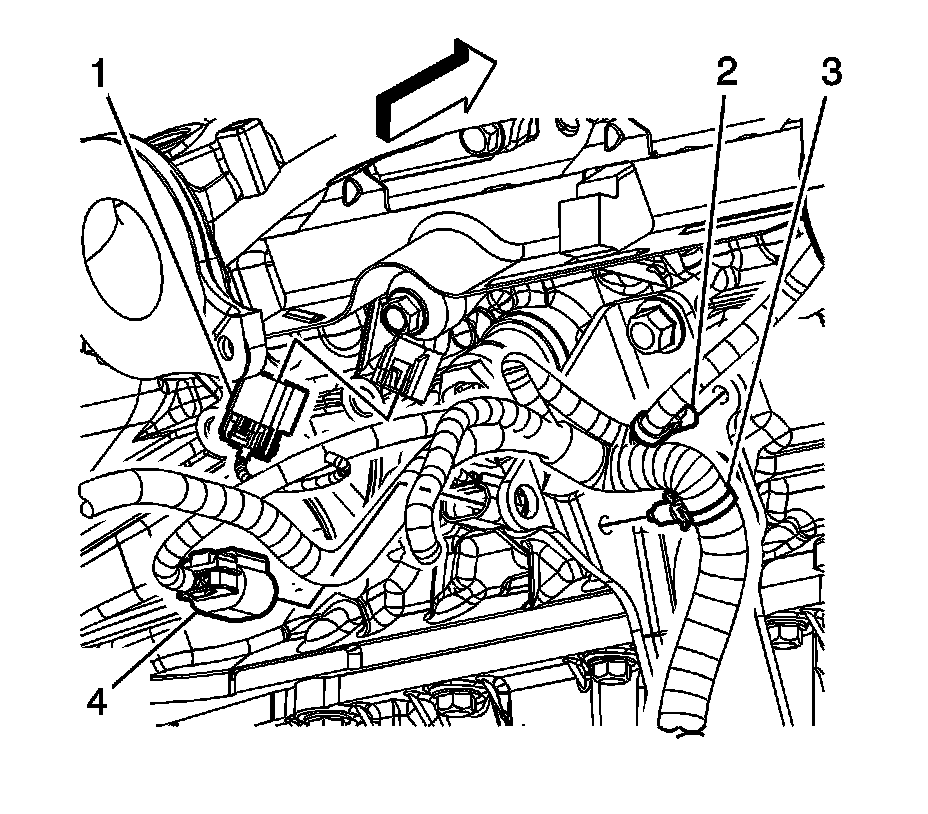

2. Disconnect the crankshaft position (CKP) sensor electrical connector (4).




3. Remove the CKP sensor stud.
4. Remove the CKP sensor.

Installation Procedure




1. Lubricate the CKP sensor O-ring with clean engine oil.

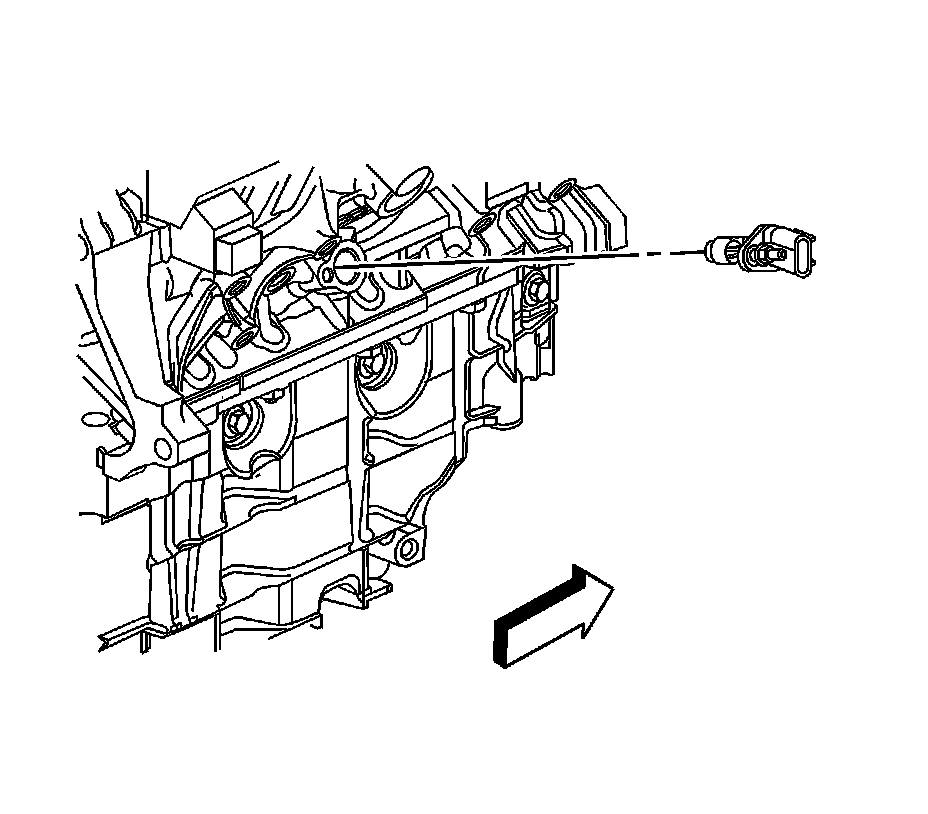

2. Install the CKP sensor.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the CKP sensor stud and tighten to 10 Nm (89 lb in).




4. Connect the CKP sensor electrical connector (4).
5. Lower the vehicle.
