Throttle Position Sensor: Locations

Instrument Panel/Center Console Component Views

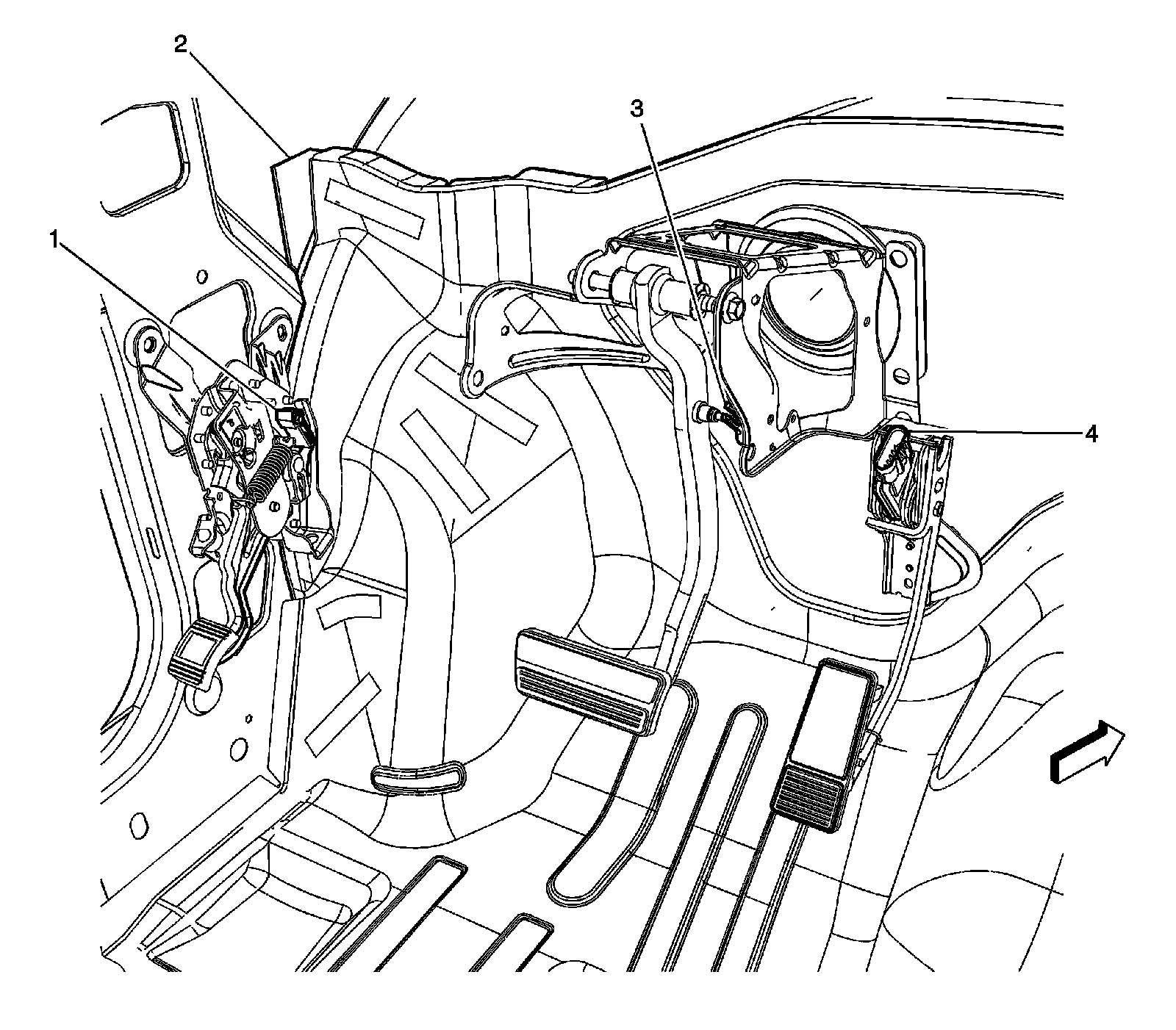

Below the Instrument Panel Components - Pedal Assemblies




1 - Park Brake Switch
2 - Dash Panel
3 - Brake Pedal Position (BPP) Sensor
4 - Accelerator Pedal Position (APP) Sensor
