Ignition Control Module: Locations

Powertrain Component Views

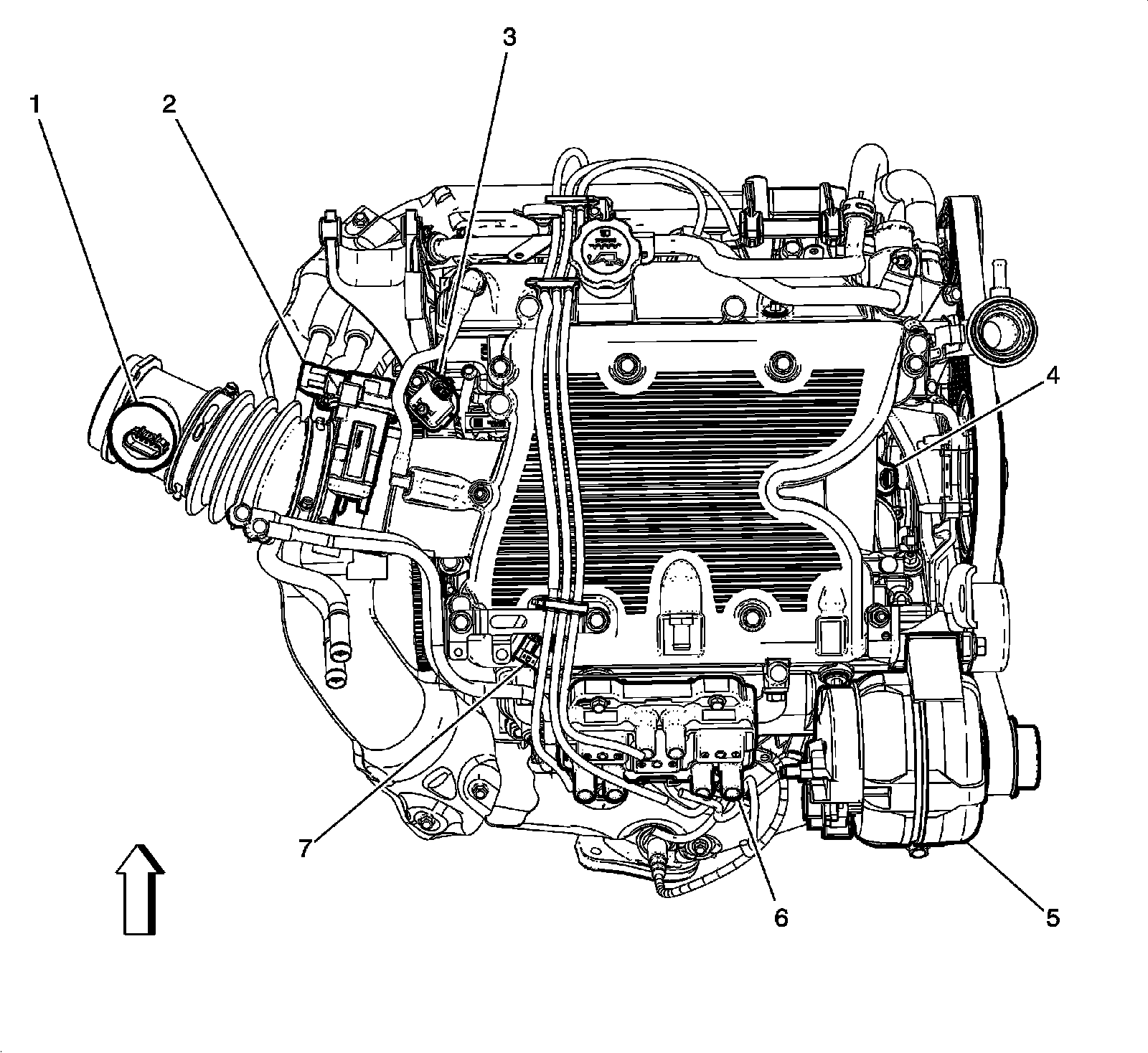

Top of the Engine Components




1 - Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Throttle Body
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Camshaft Position (CMP) Sensor
5 - Generator
6 - Ignition Control Module (ICM)
7 - Manifold Absolute Pressure (MAP) Sensor
