Intake Manifold
Upper intake manifoldBolts and stud 25 Nm (18 lb ft)

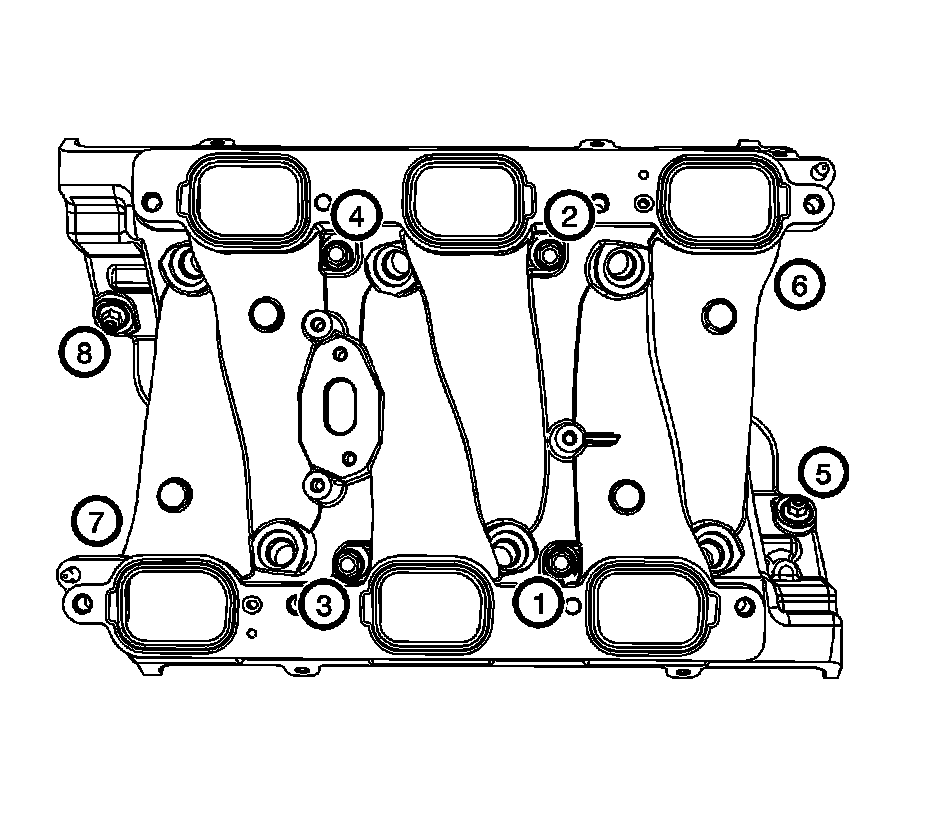

Lower intake manifold
1, 2, 3, 4, 5, 8, 6, 7, 8 7 Nm (62 lb in)
1, 2, 3, 4 16 Nm (12 lb ft)
5, 8 25 Nm (18 lb ft)
6, 7 25 Nm (18 lb ft)
Bolts and stud 25 Nm (18 lb ft)
Lower intake manifold
1, 2, 3, 4, 5, 8, 6, 7, 8 7 Nm (62 lb in)
1, 2, 3, 4 16 Nm (12 lb ft)
5, 8 25 Nm (18 lb ft)
6, 7 25 Nm (18 lb ft)
