Backup Lamp




Component Connector End Views

Backup Lamp - Left (W49)





Backup Lamp - Left (X88)





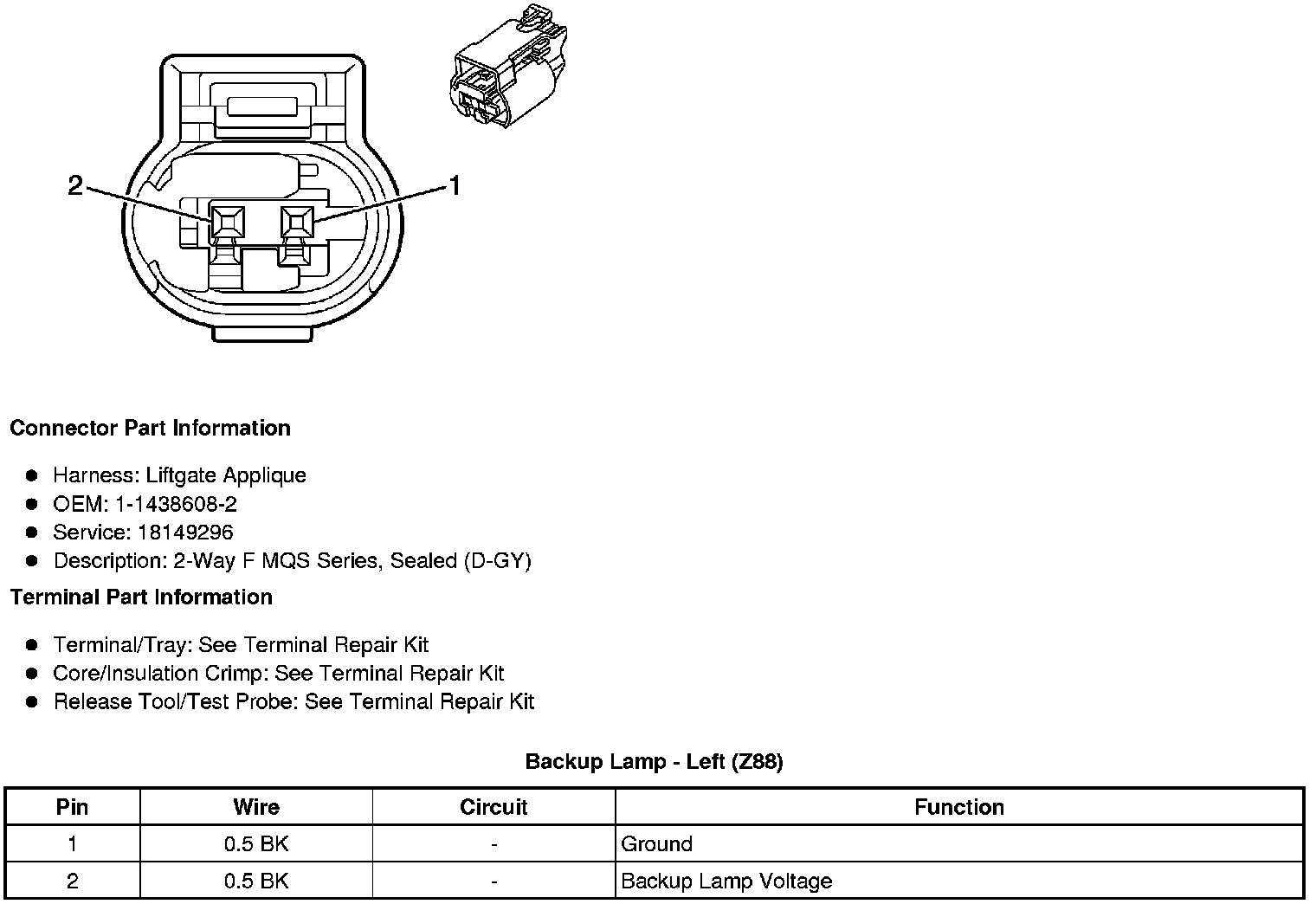

Backup Lamp - Left (Z88)

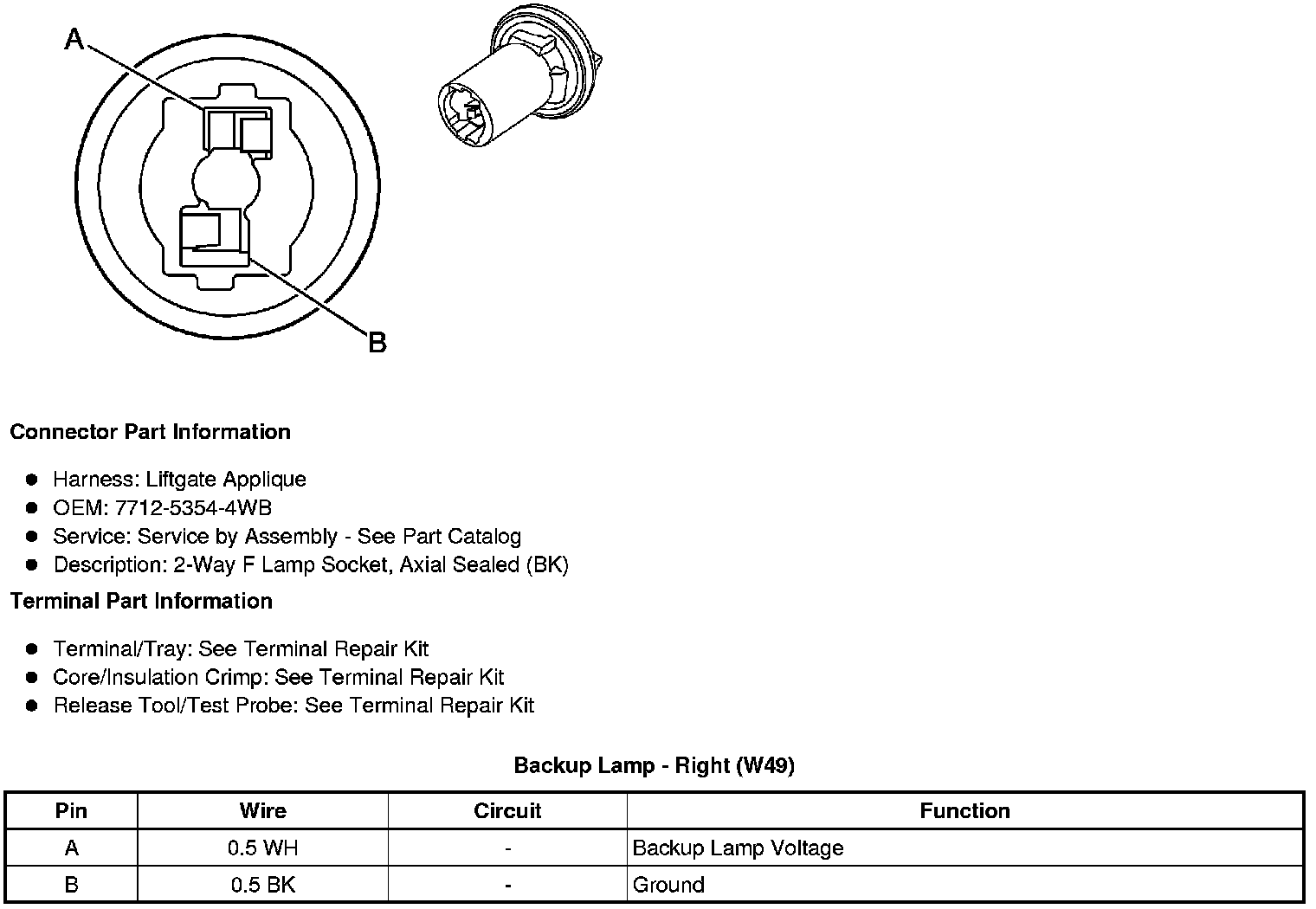

Backup Lamp - Right (W49)

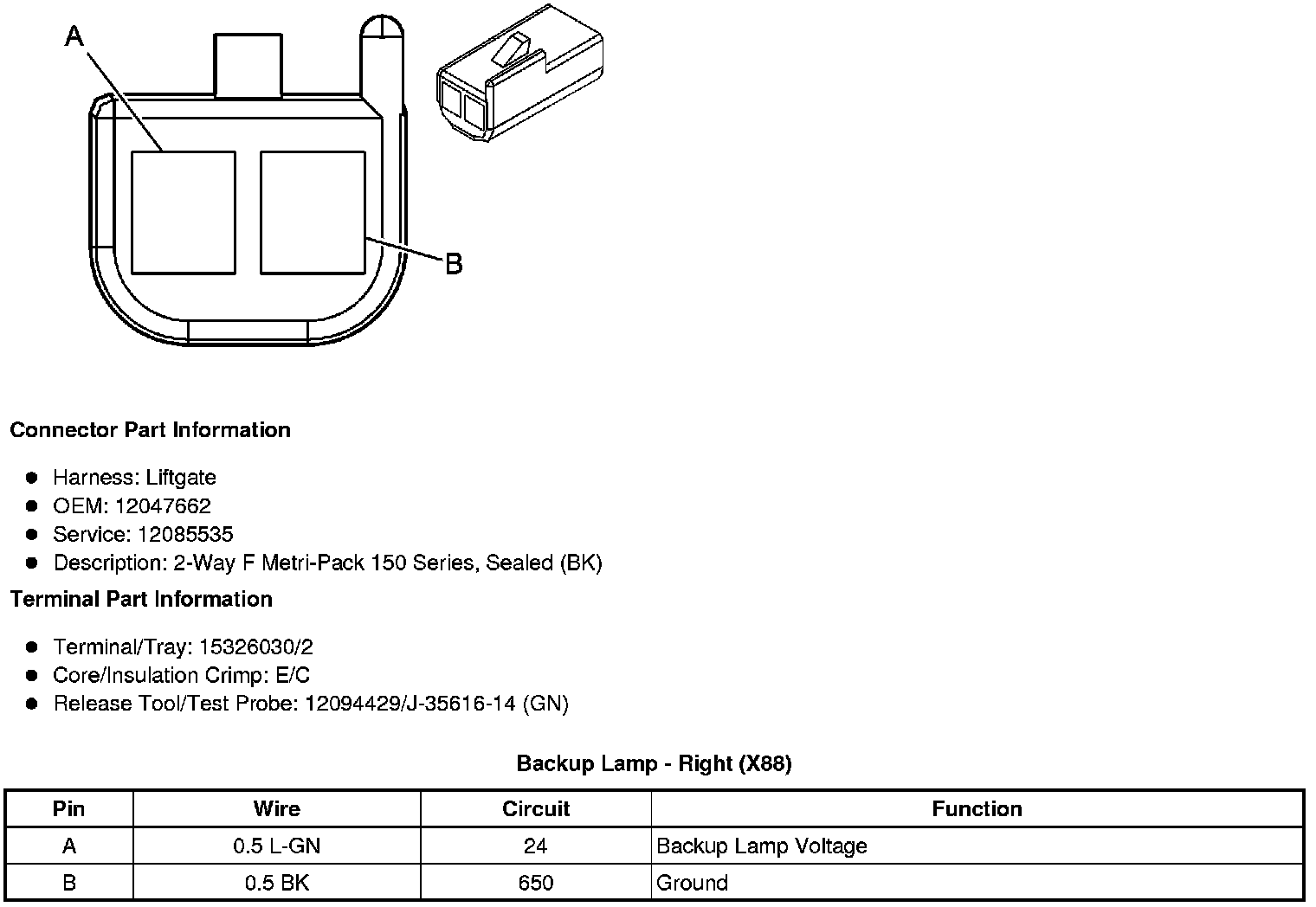

Backup Lamp - Right (X88)

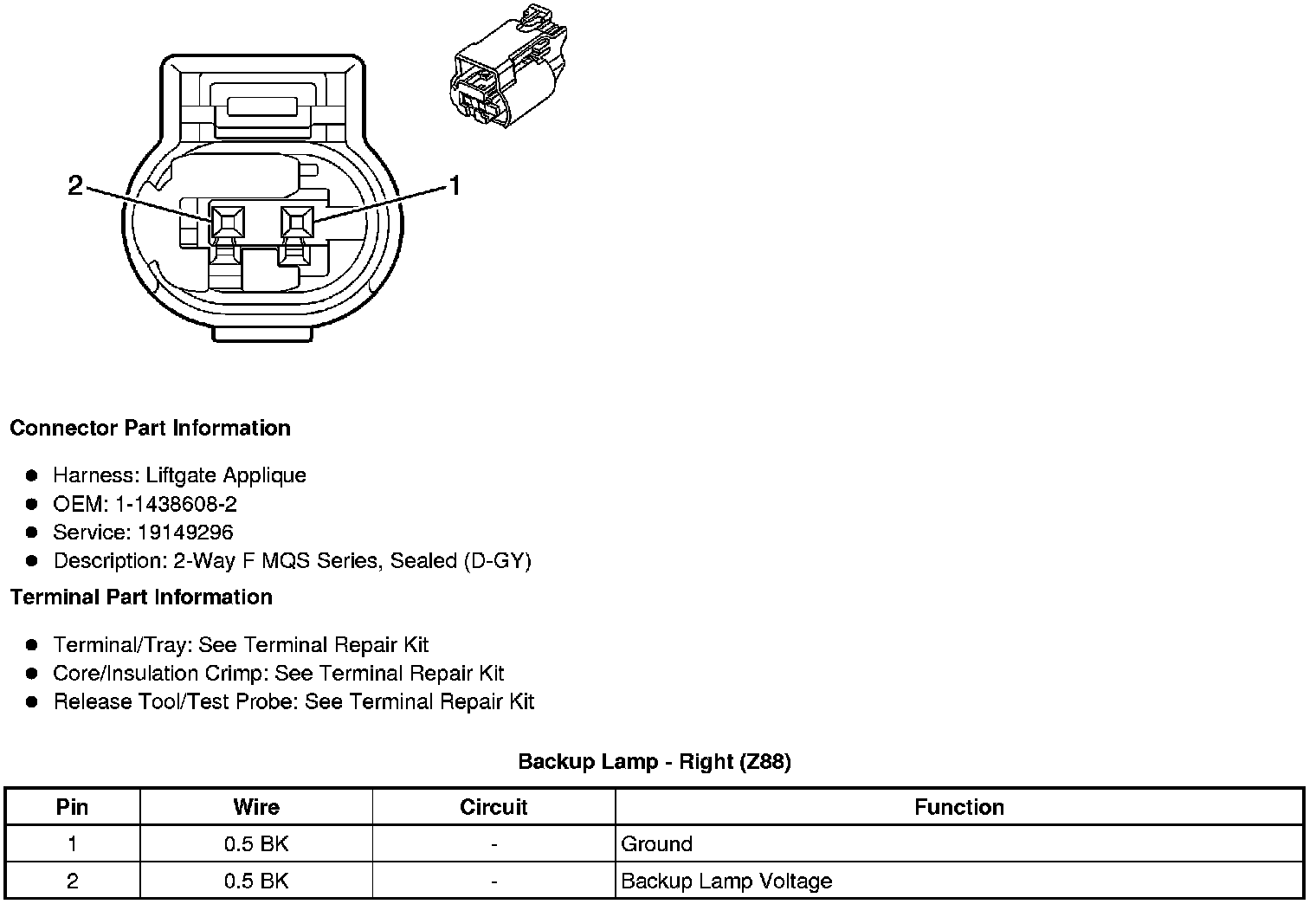

Backup Lamp - Right (Z88)
