Brake Lamp




Component Connector End Views

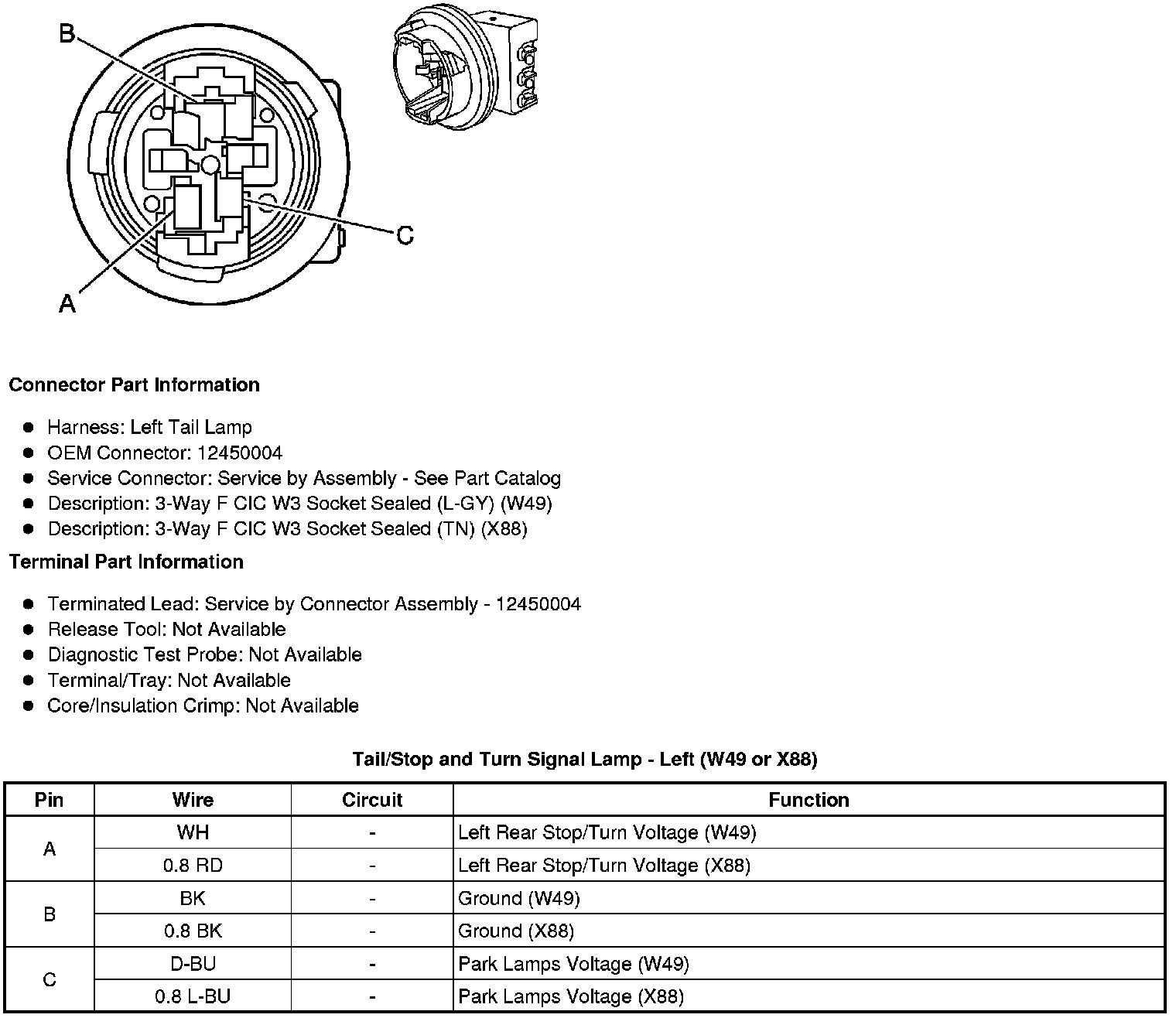

Tail/Stop and Turn Signal Lamp - Left (W49 or X88)





Tail/Stop and Turn Signal Lamp - Right (W49 or X88)
