Control Unit, Differential Lock




Component Connector End Views

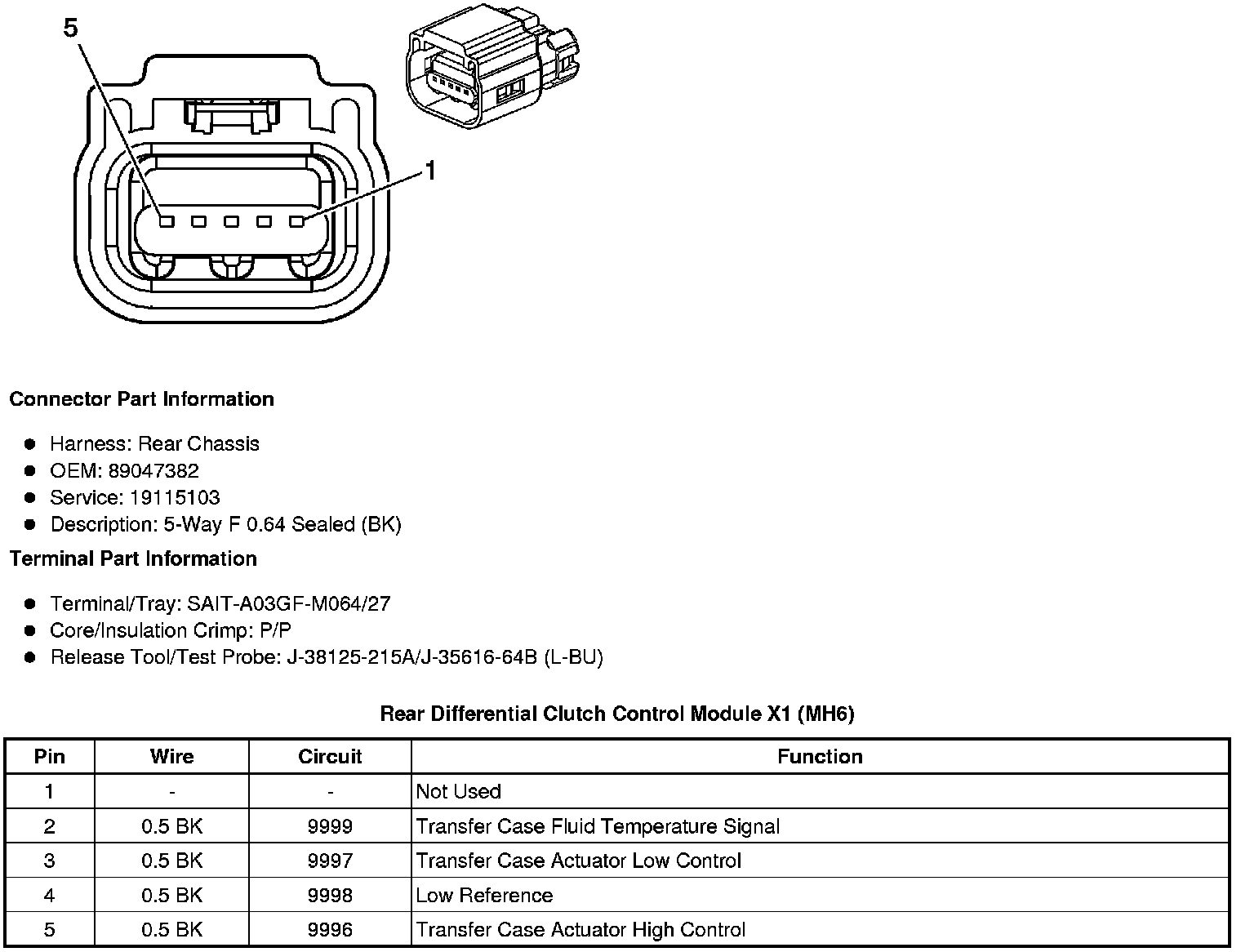

Rear Differential Clutch Control Module X1 (MH6)

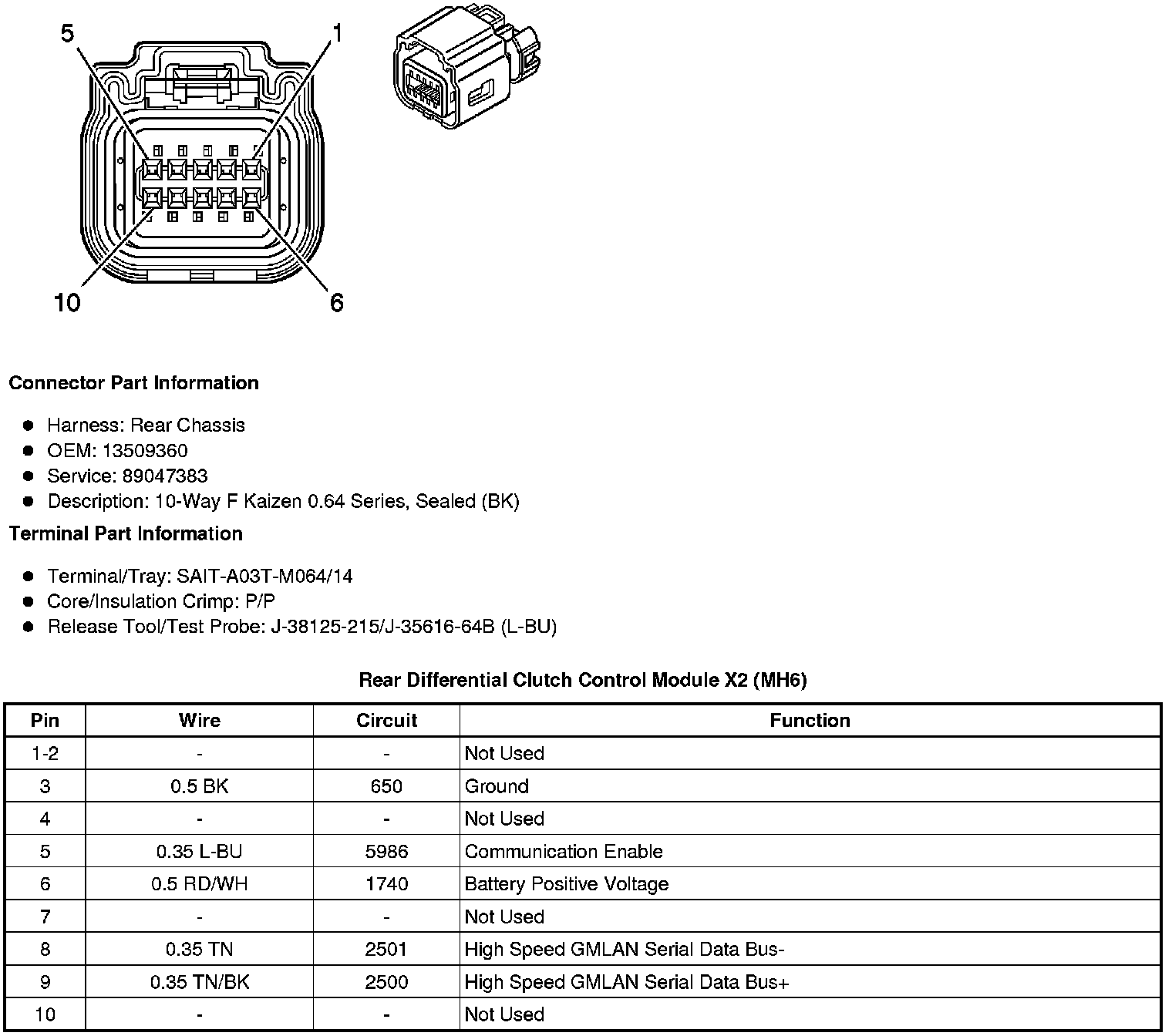

Rear Differential Clutch Control Module X2 (MH6)
