Daytime Running Lamp




Component Connector End Views

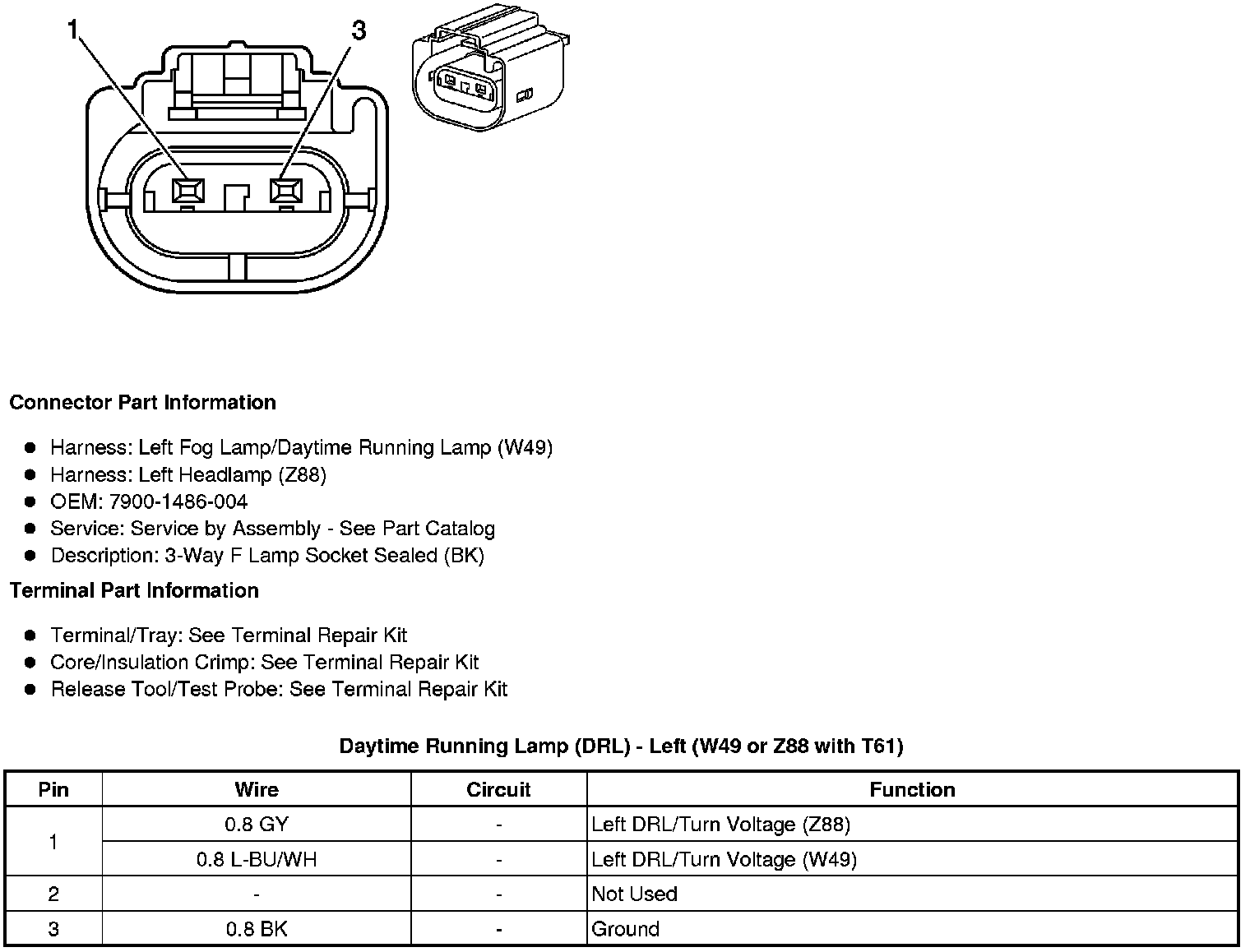

Daytime Running Lamp (DRL) - Left (W49 or Z88 with T61)





Daytime Running Lamp (DRL) - Right (W49 or Z88 with T61)
