Fog/Driving Lamp




Component Connector End Views

Fog Lamp - Left Front (W49 with T96)

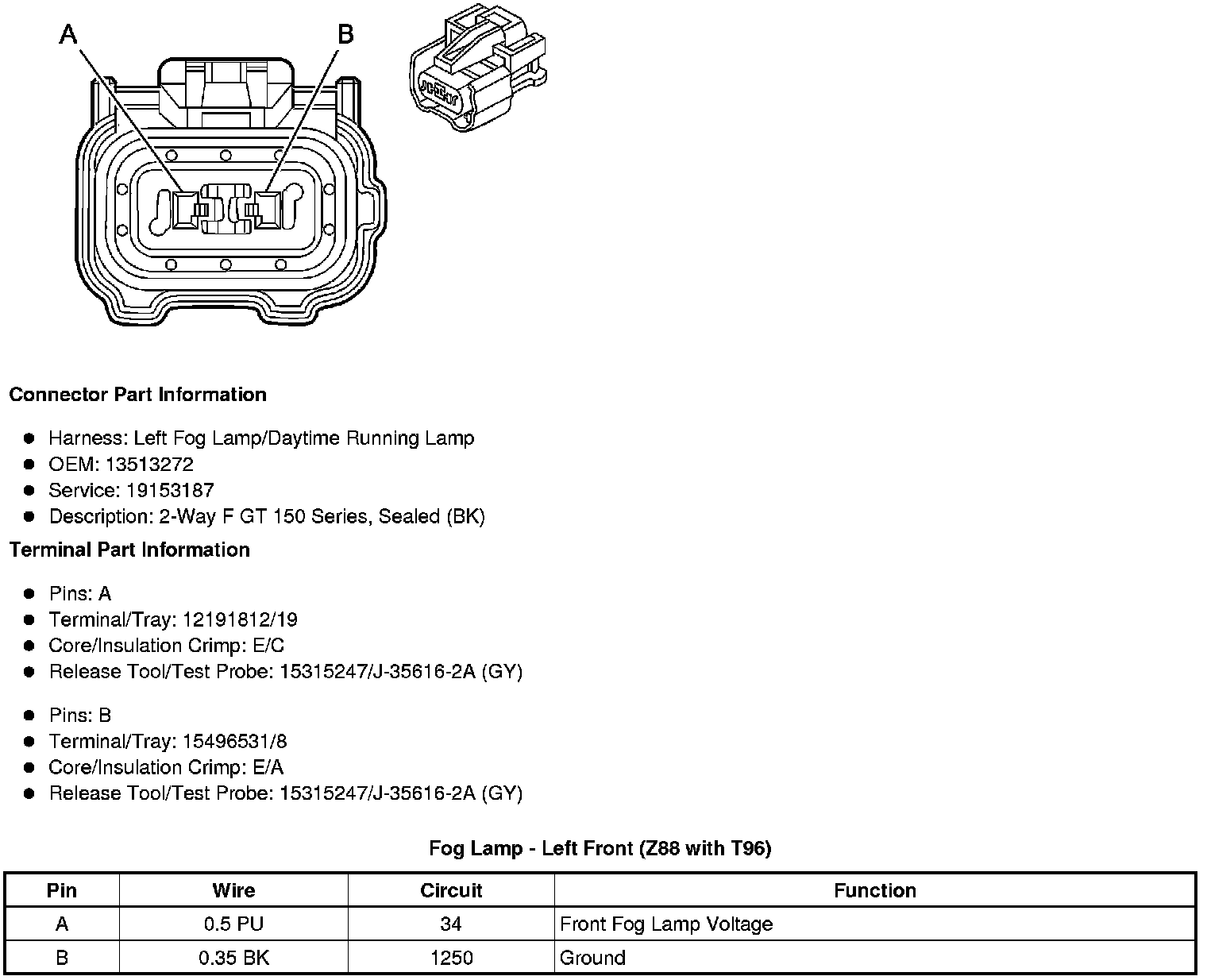

Fog Lamp - Left Front (Z88 with T96)

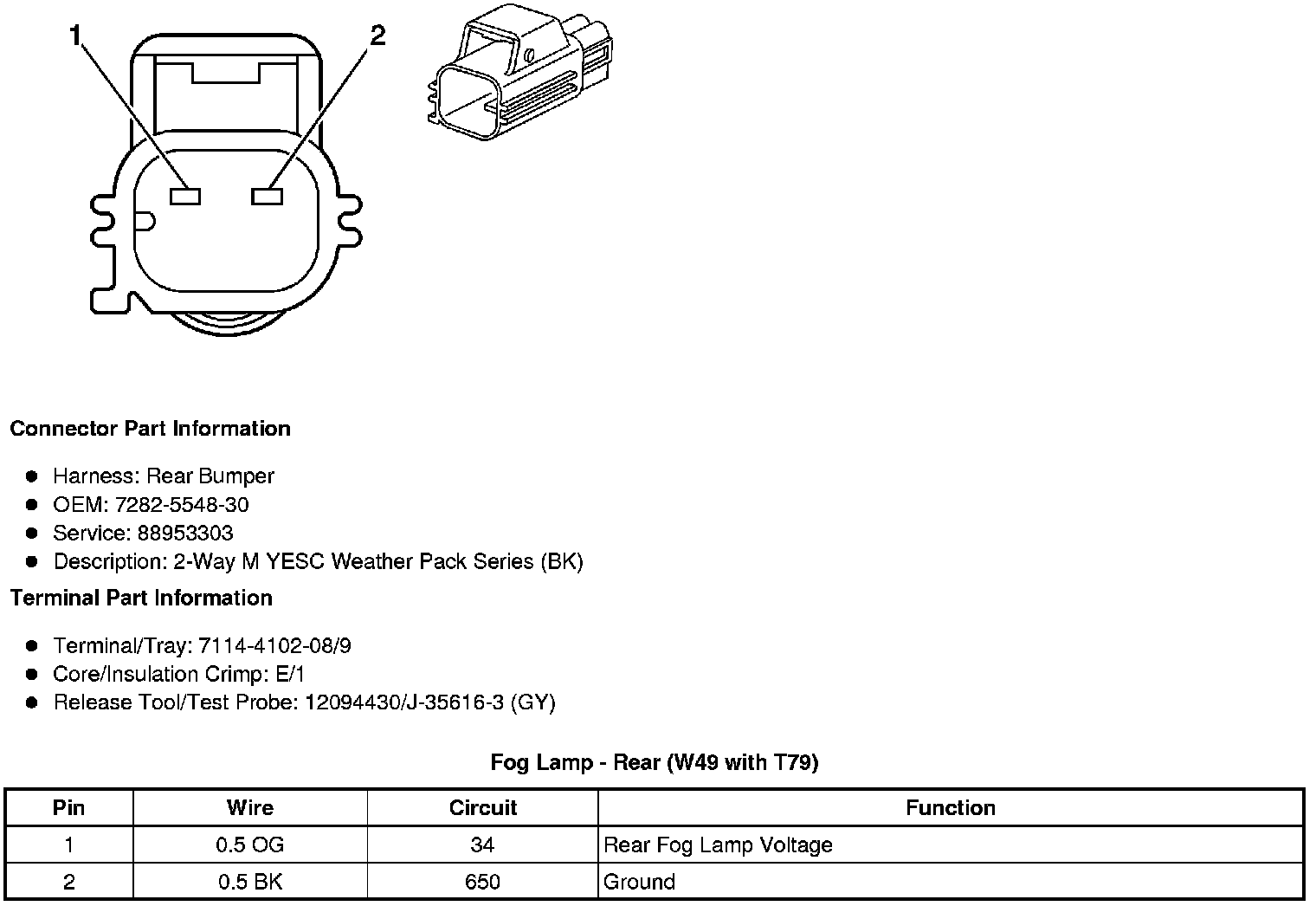

Fog Lamp - Rear (W49 with T79)

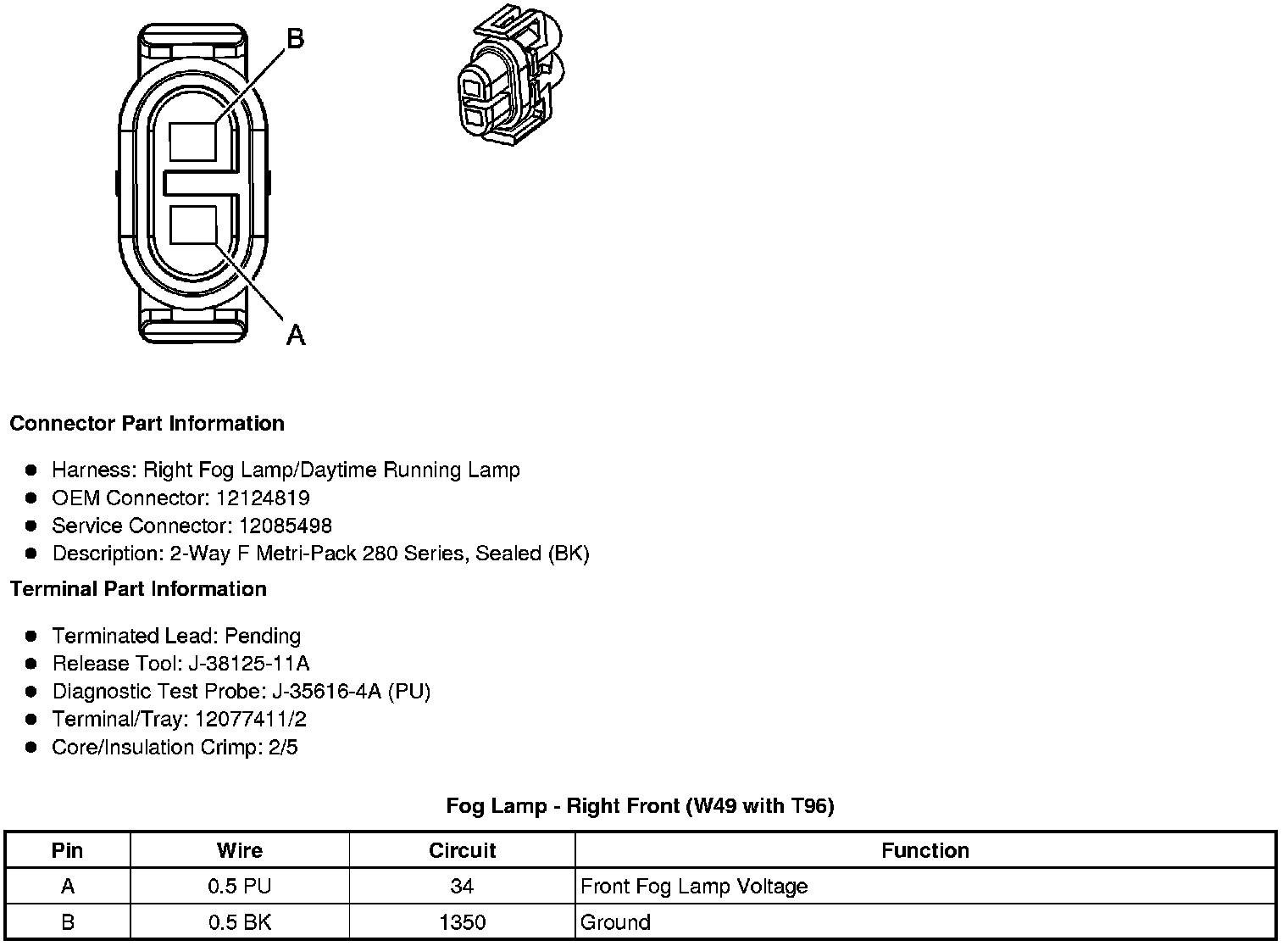

Fog Lamp - Right Front (W49 with T96)

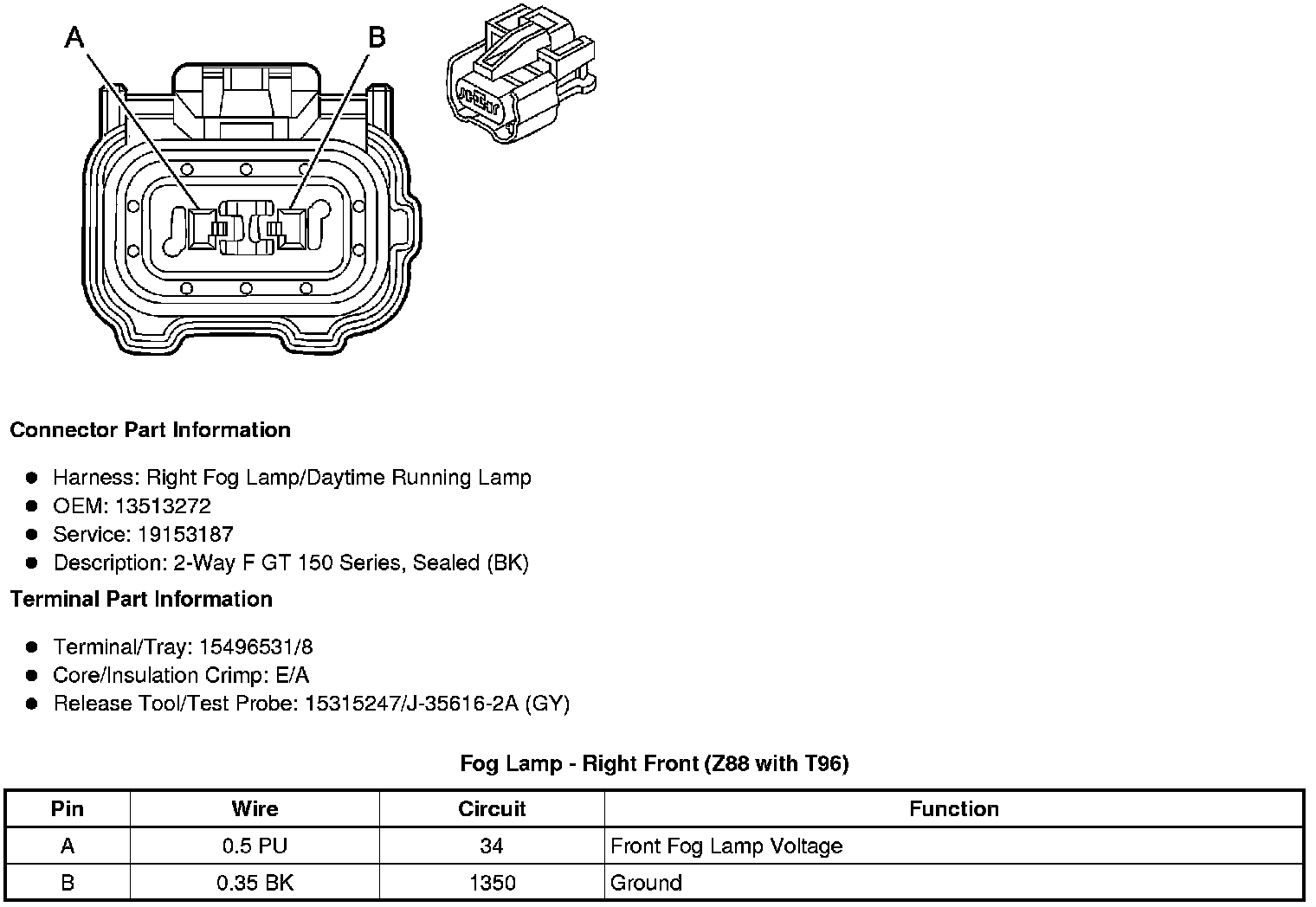

Fog Lamp - Right Front (Z88 with T96)
