Marker Lamp




Component Connector End Views

Side Marker Lamp - Left Front (W49)

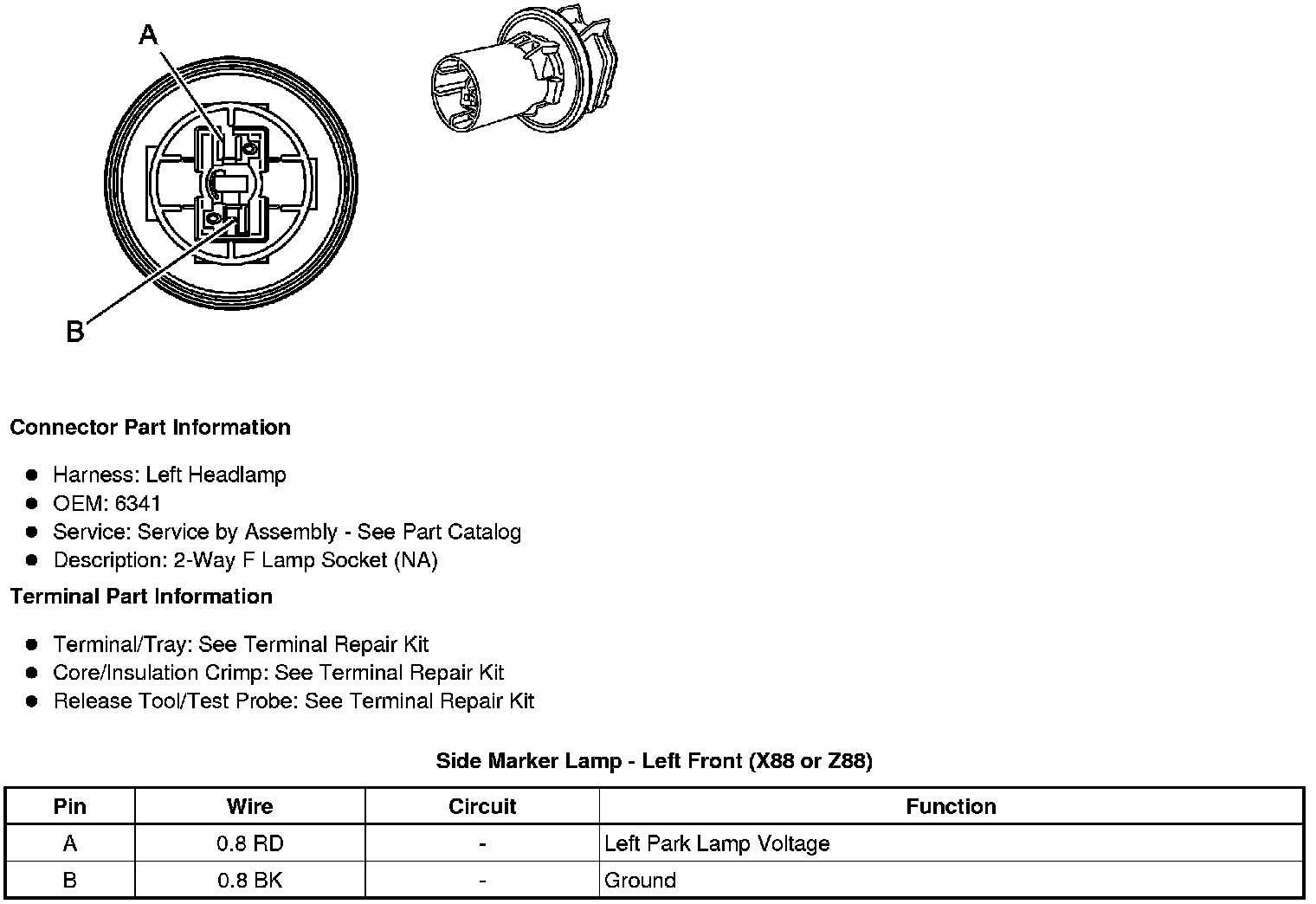

Side Marker Lamp - Left Front (X88 or Z88)

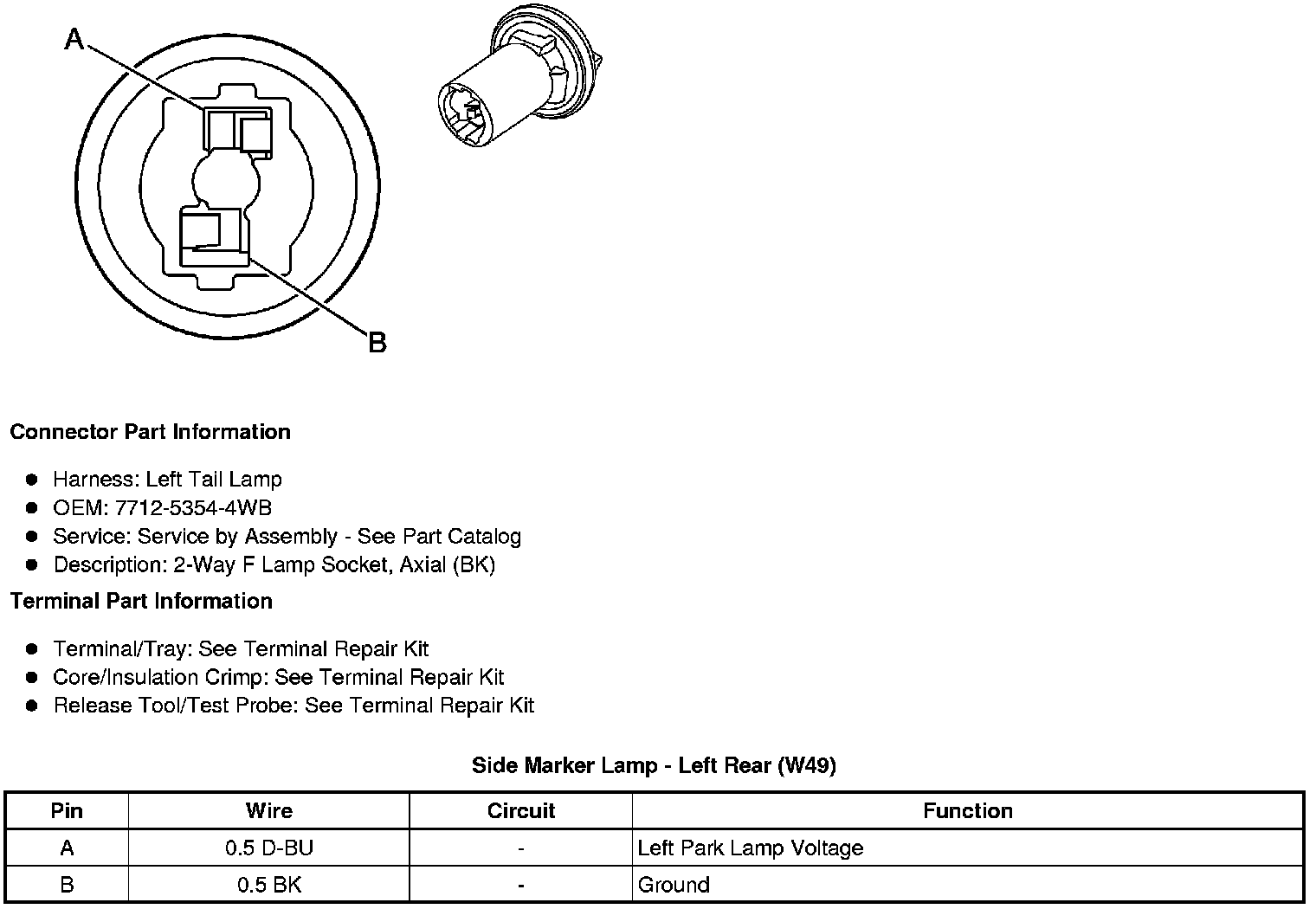

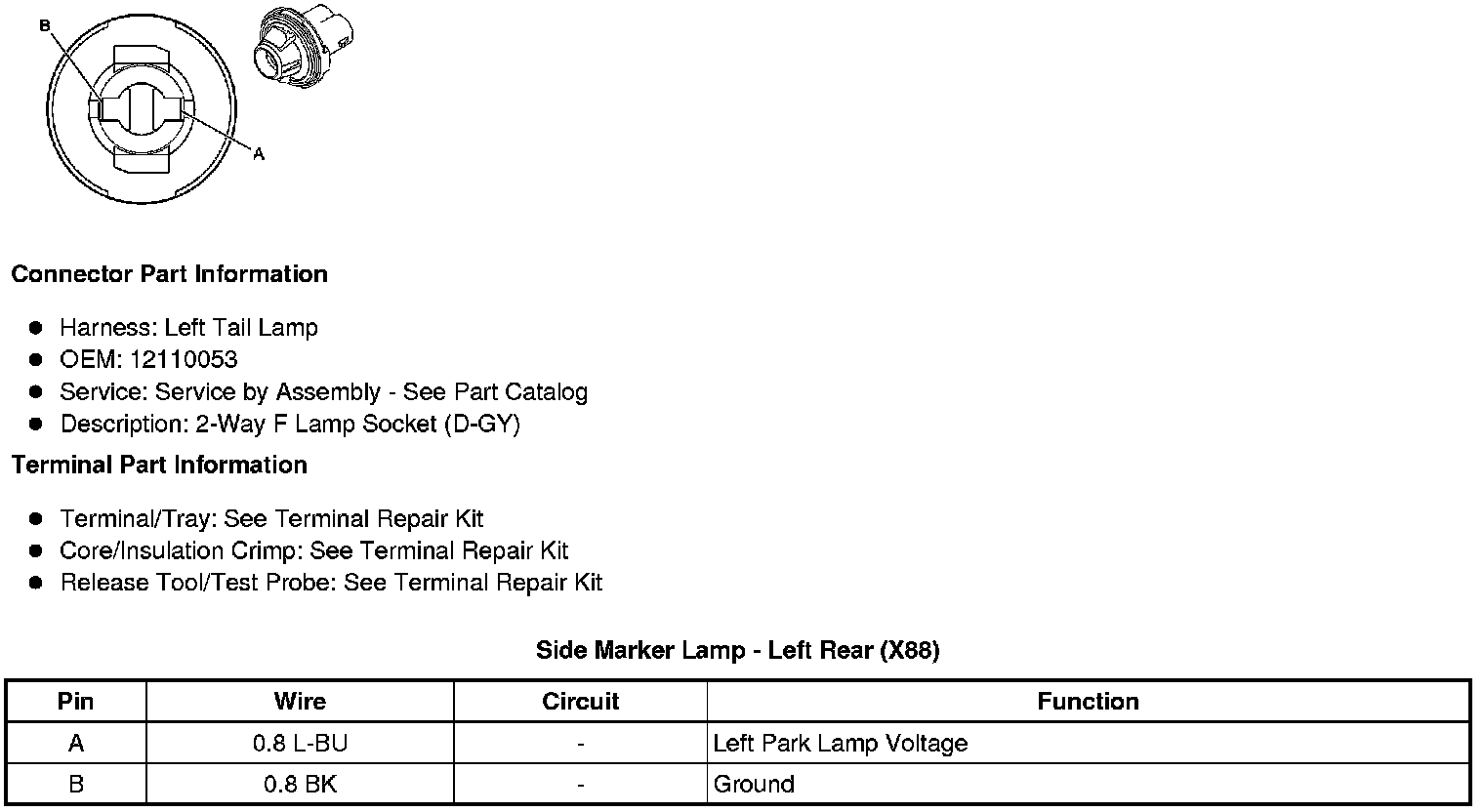

Side Marker Lamp - Left Rear (W49)





Side Marker Lamp - Left Rear (X88)

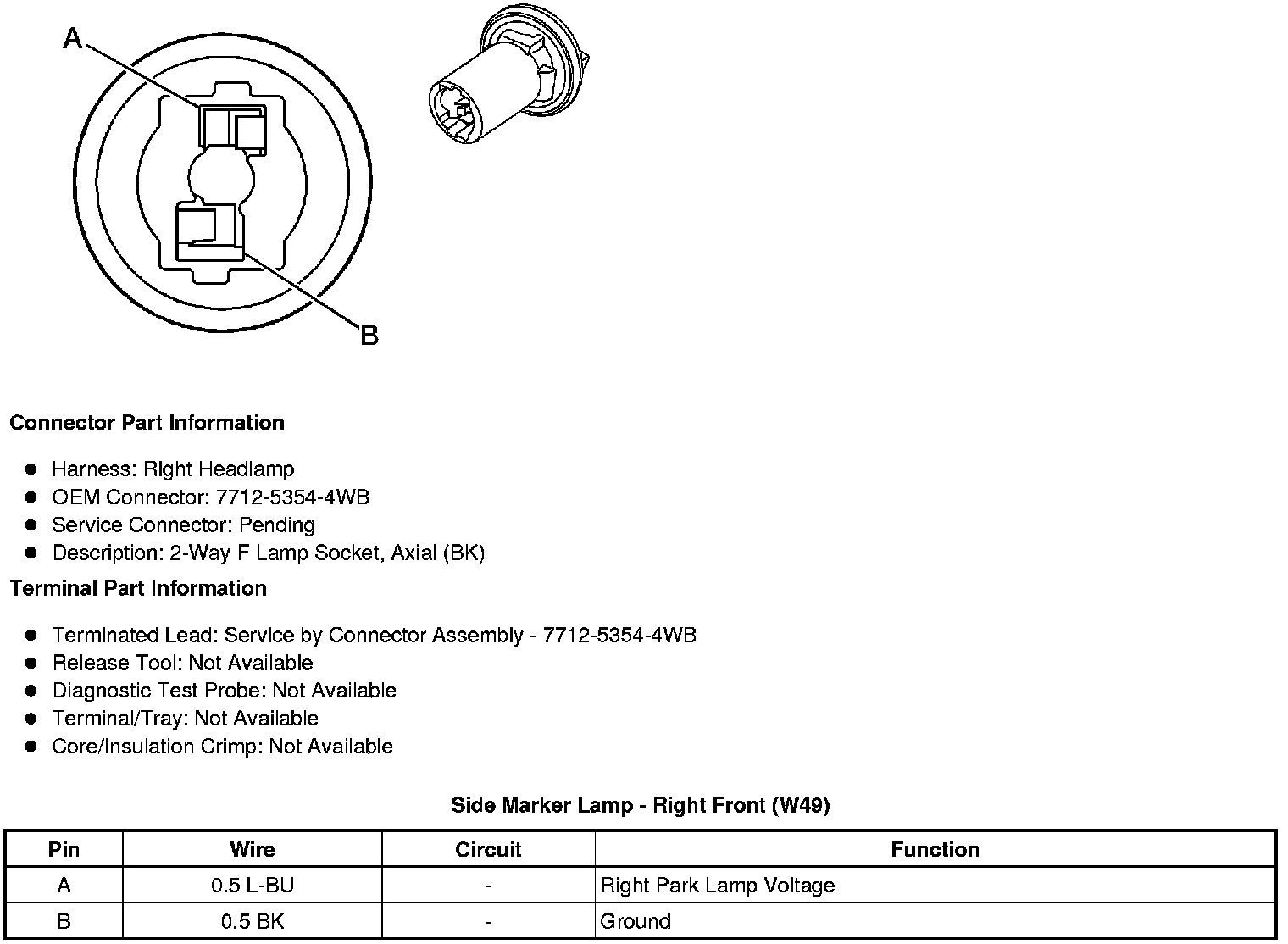

Side Marker Lamp - Right Front (W49)

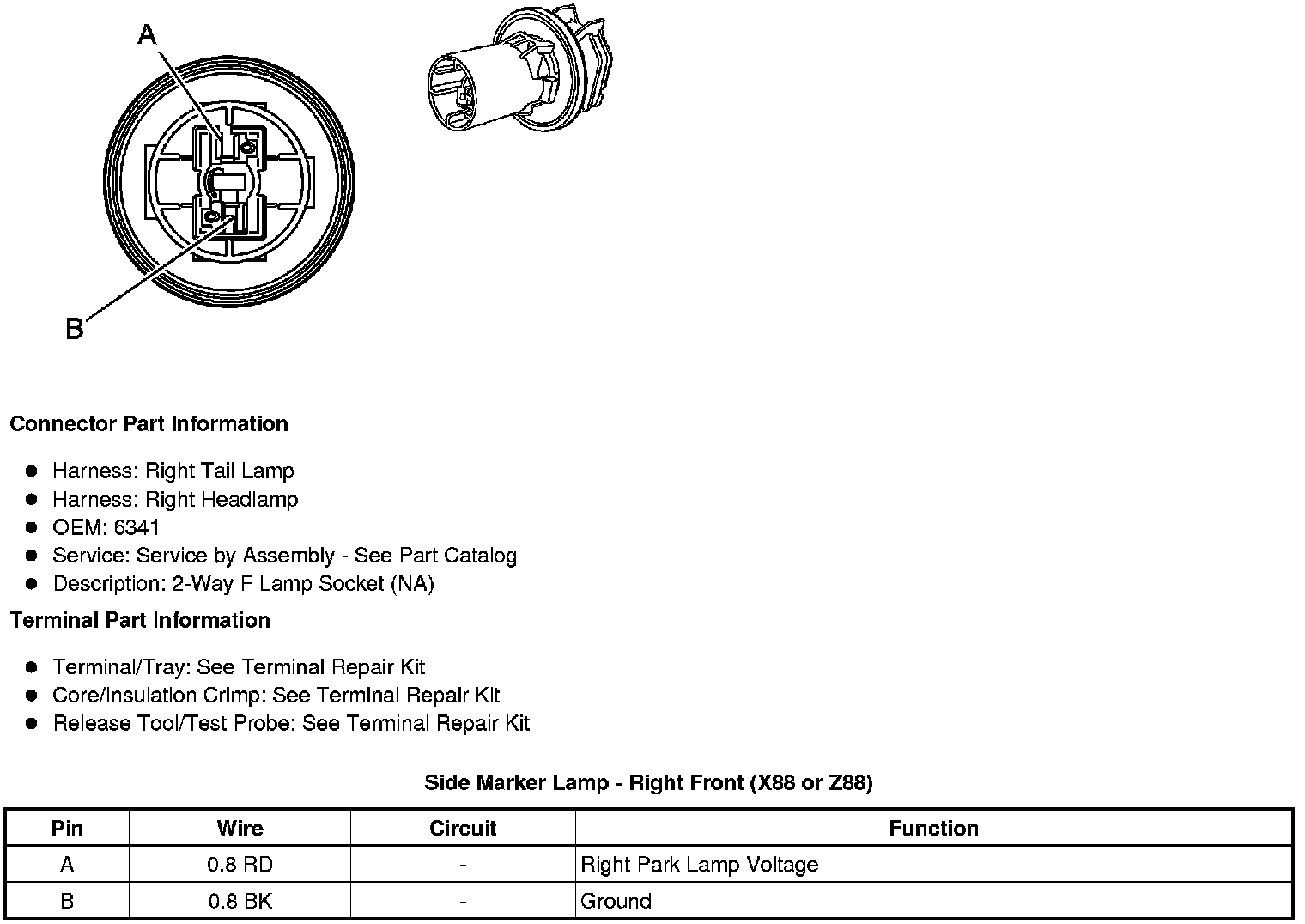

Side Marker Lamp - Right Front (X88 or Z88)

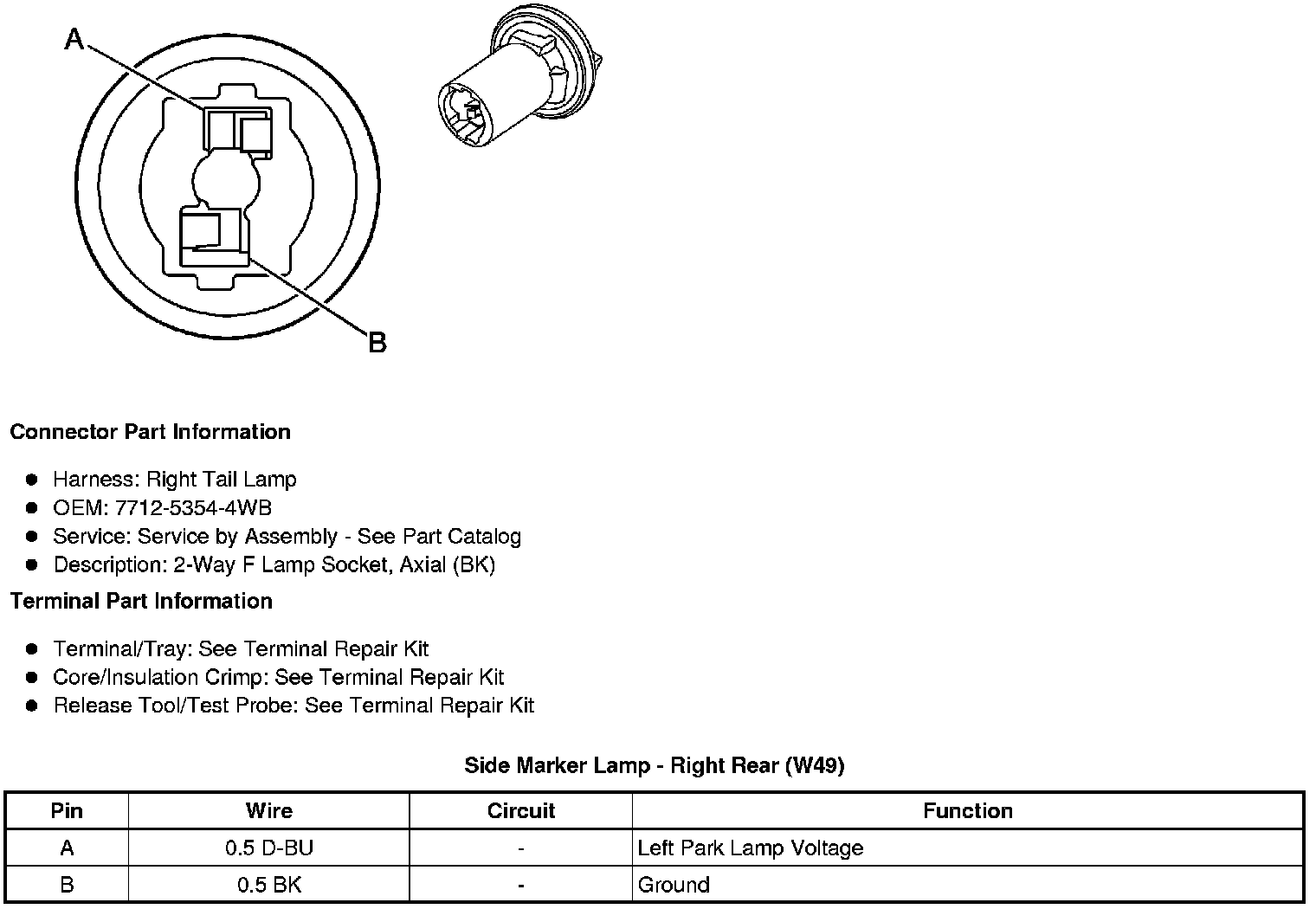

Side Marker Lamp - Right Rear (W49)

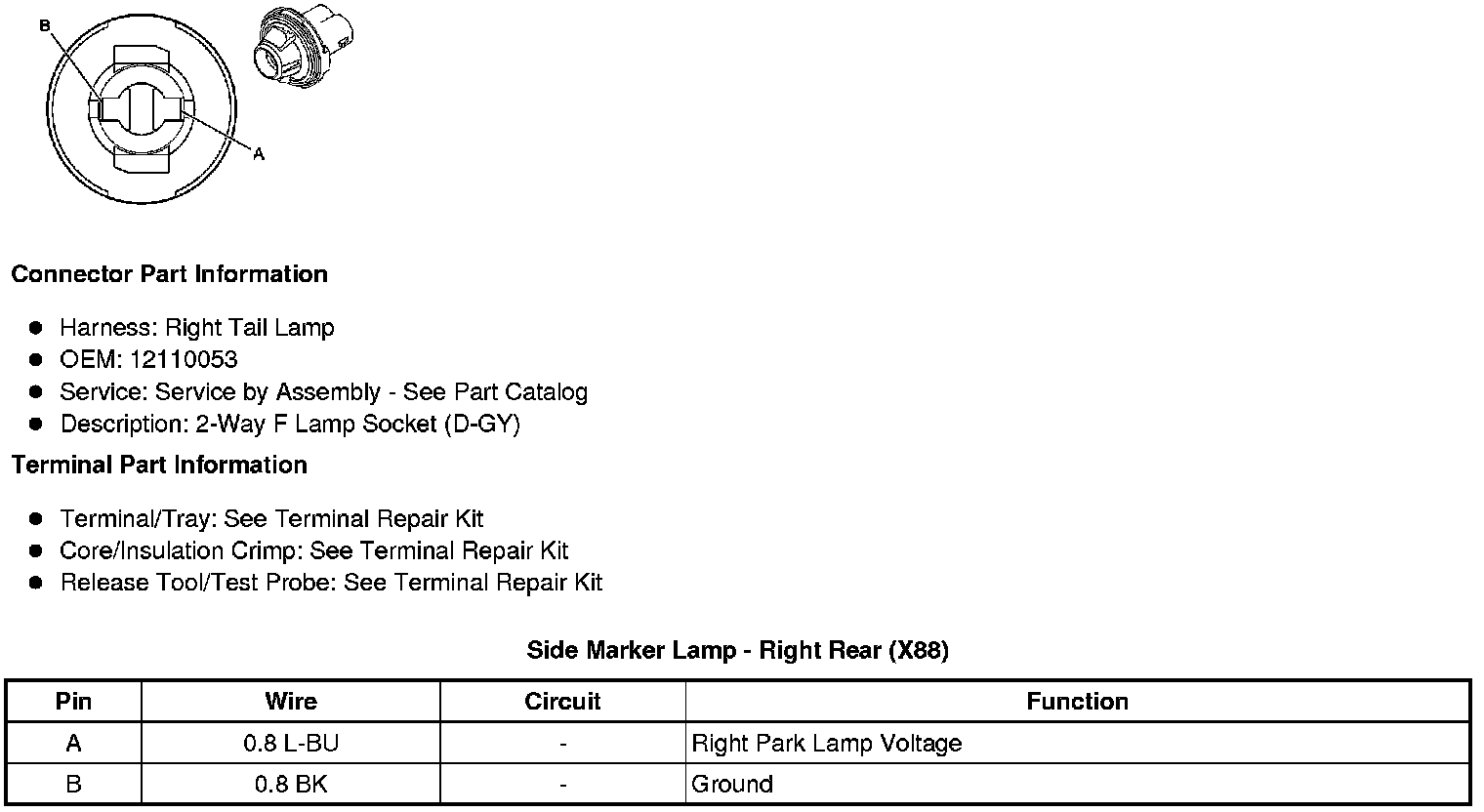

Side Marker Lamp - Right Rear (X88)
