Parking Lamp




Component Connector End Views

Park Lamp - Left Front (Z88)

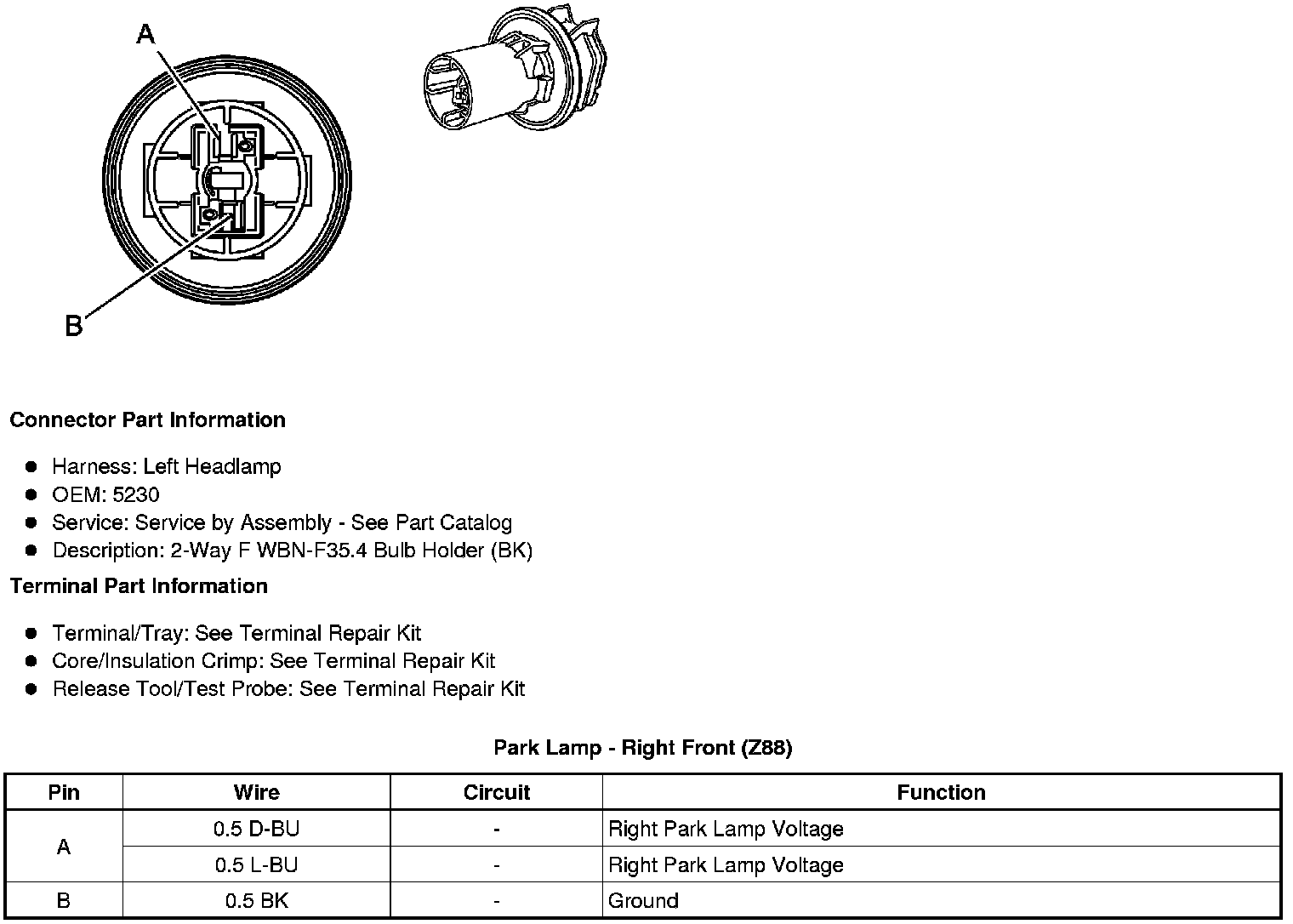

Park Lamp - Right Front (Z88)

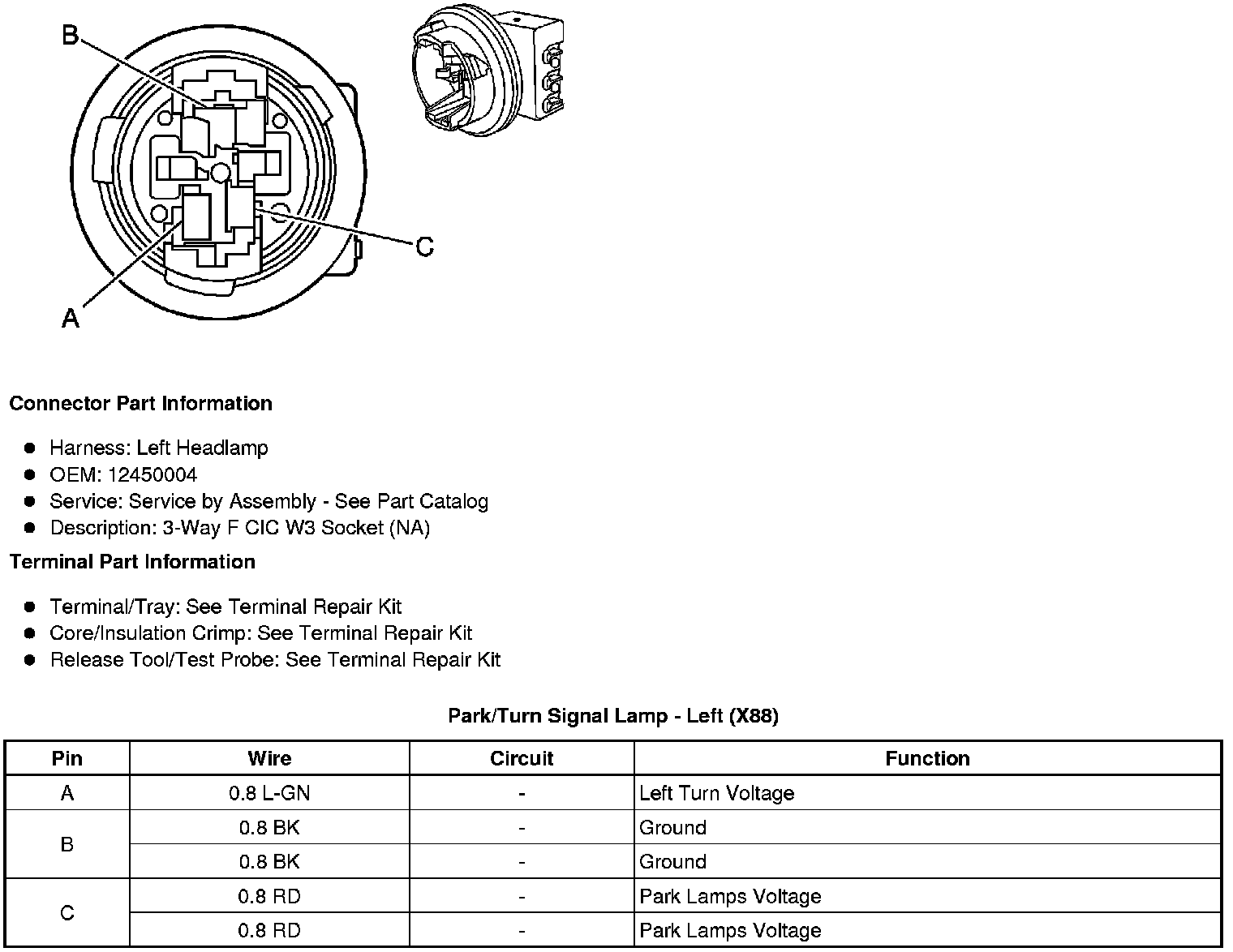

Park/Turn Signal Lamp - Left (X88)

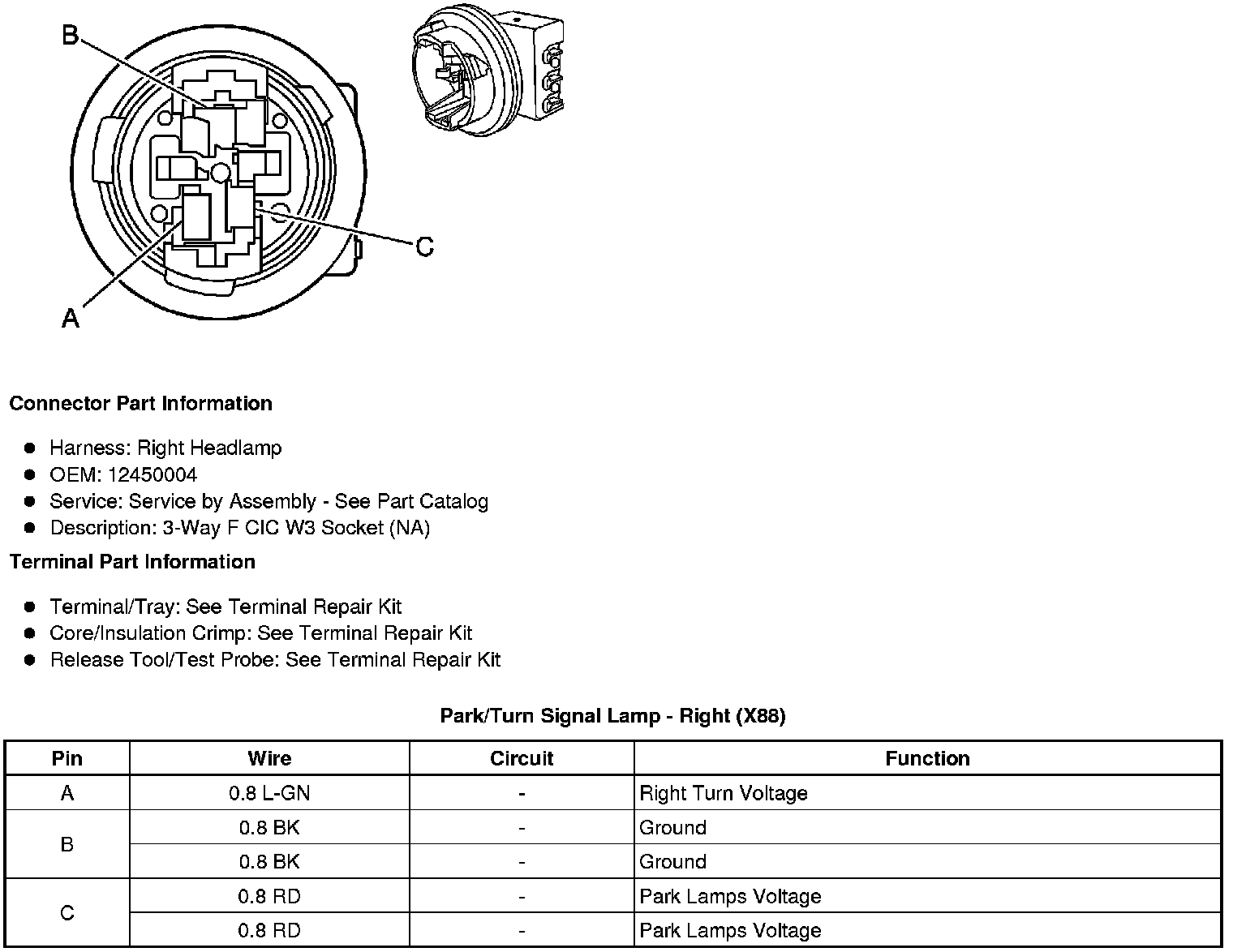

Park/Turn Signal Lamp - Right (X88)
