Seat Horizontal Motor Position Sensor




Component Connector End Views

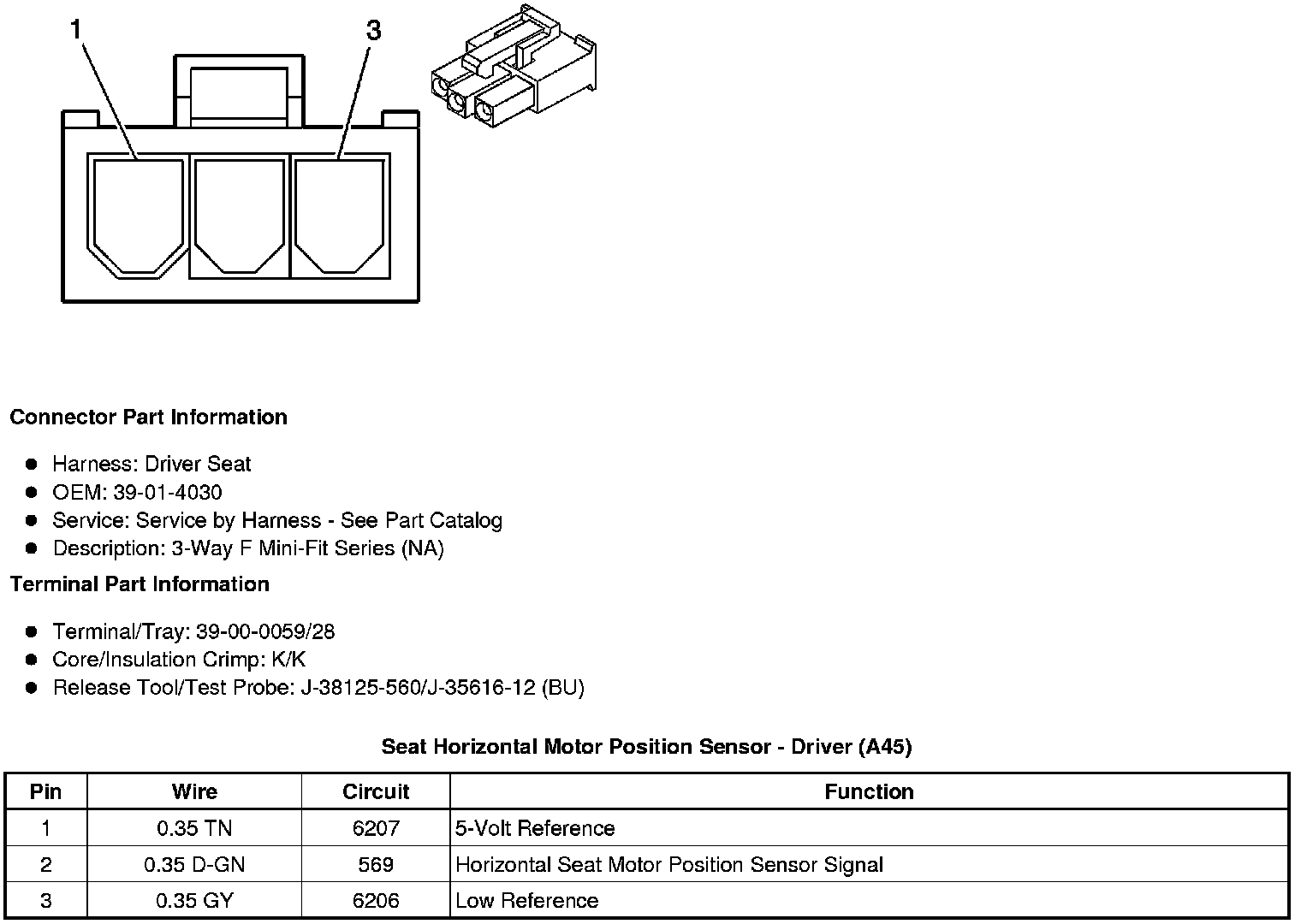

Seat Horizontal Motor Position Sensor - Driver (A45)
