Power Trunk / Liftgate Hazard Sensor




Component Connector End Views

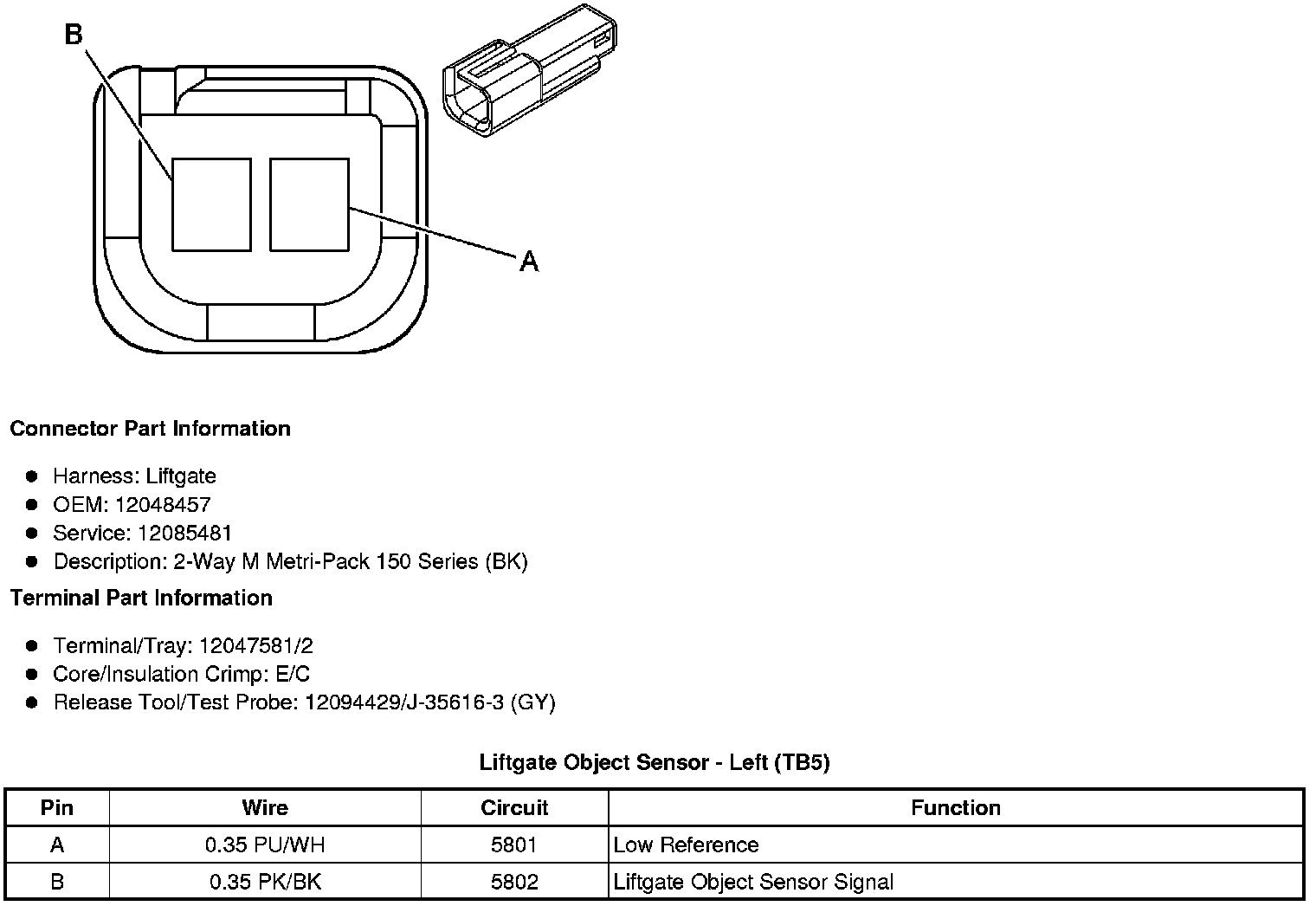

Liftgate Object Sensor - Left (TB5)

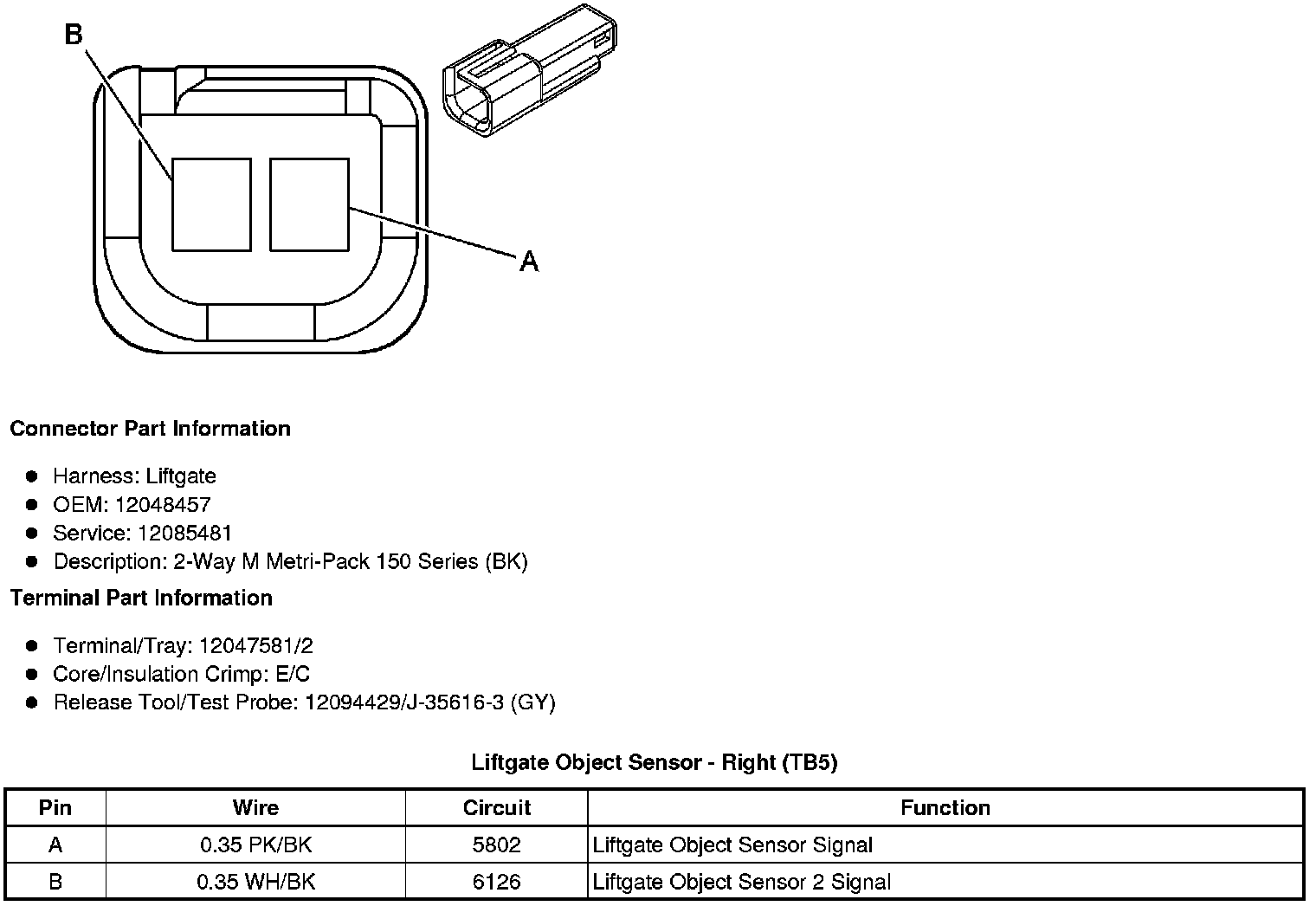

Liftgate Object Sensor - Right (TB5)
