Steering Mounted Controls Transmitter




Component Connector End Views

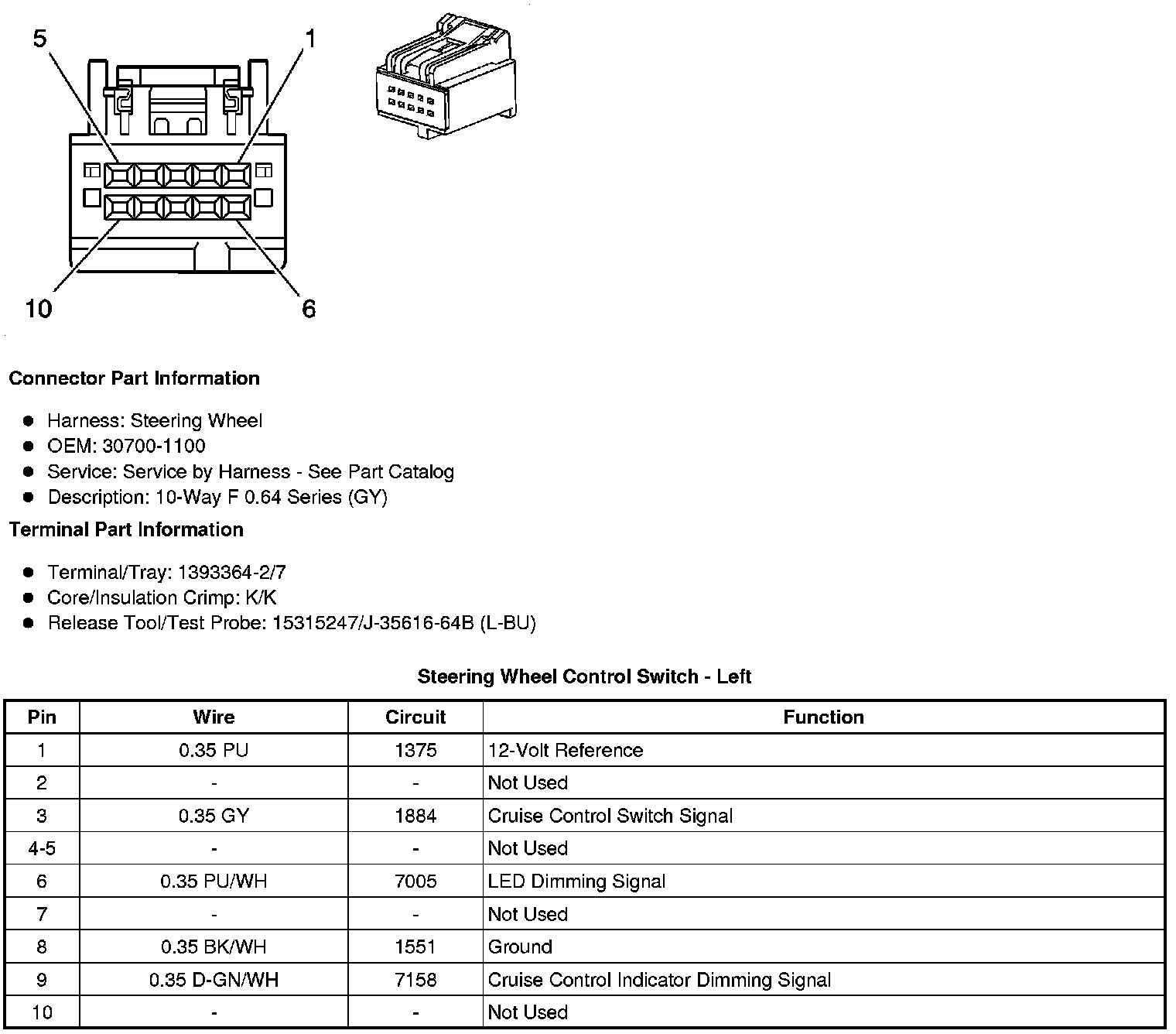

Steering Wheel Control Switch - Left

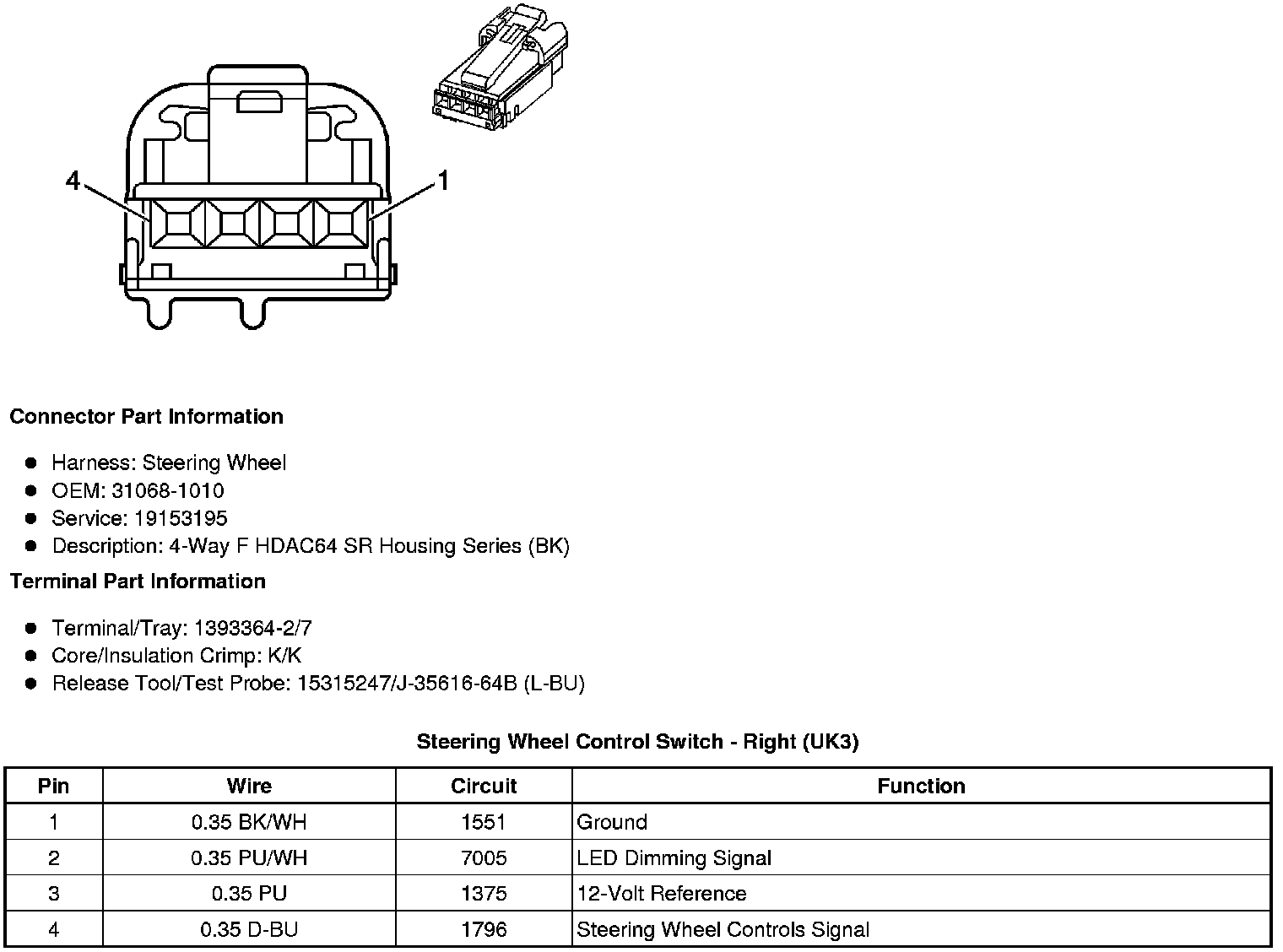

Steering Wheel Control Switch - Right (UK3)
