Turn Signal Lamp




Component Connector End Views

Park/Turn Signal Lamp - Left (X88)





Park/Turn Signal Lamp - Right (X88)





Tail/Stop and Turn Signal Lamp - Left (W49 or X88)





Tail/Stop and Turn Signal Lamp - Right (W49 or X88)

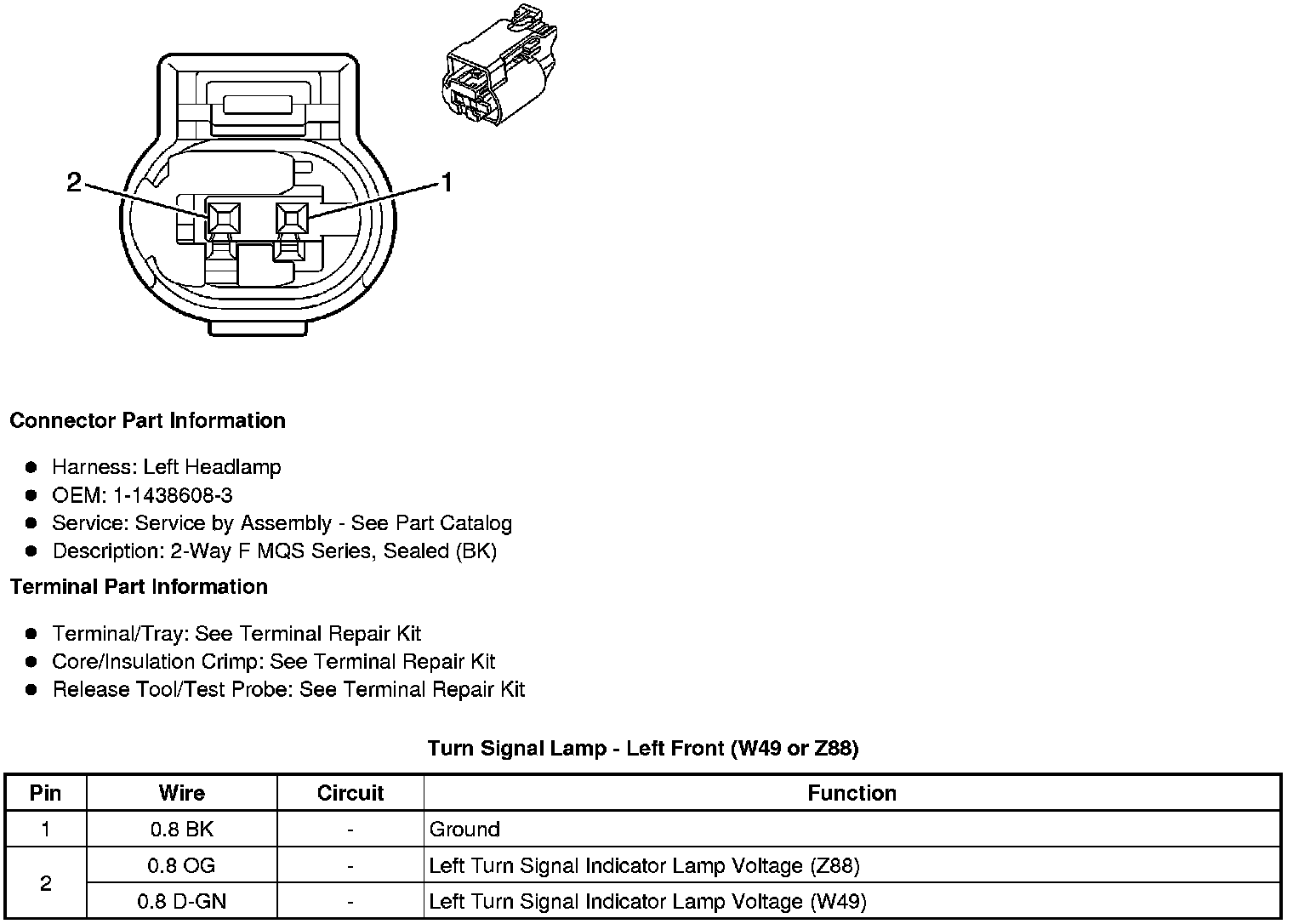

Turn Signal Lamp - Left Front (W49 or Z88)

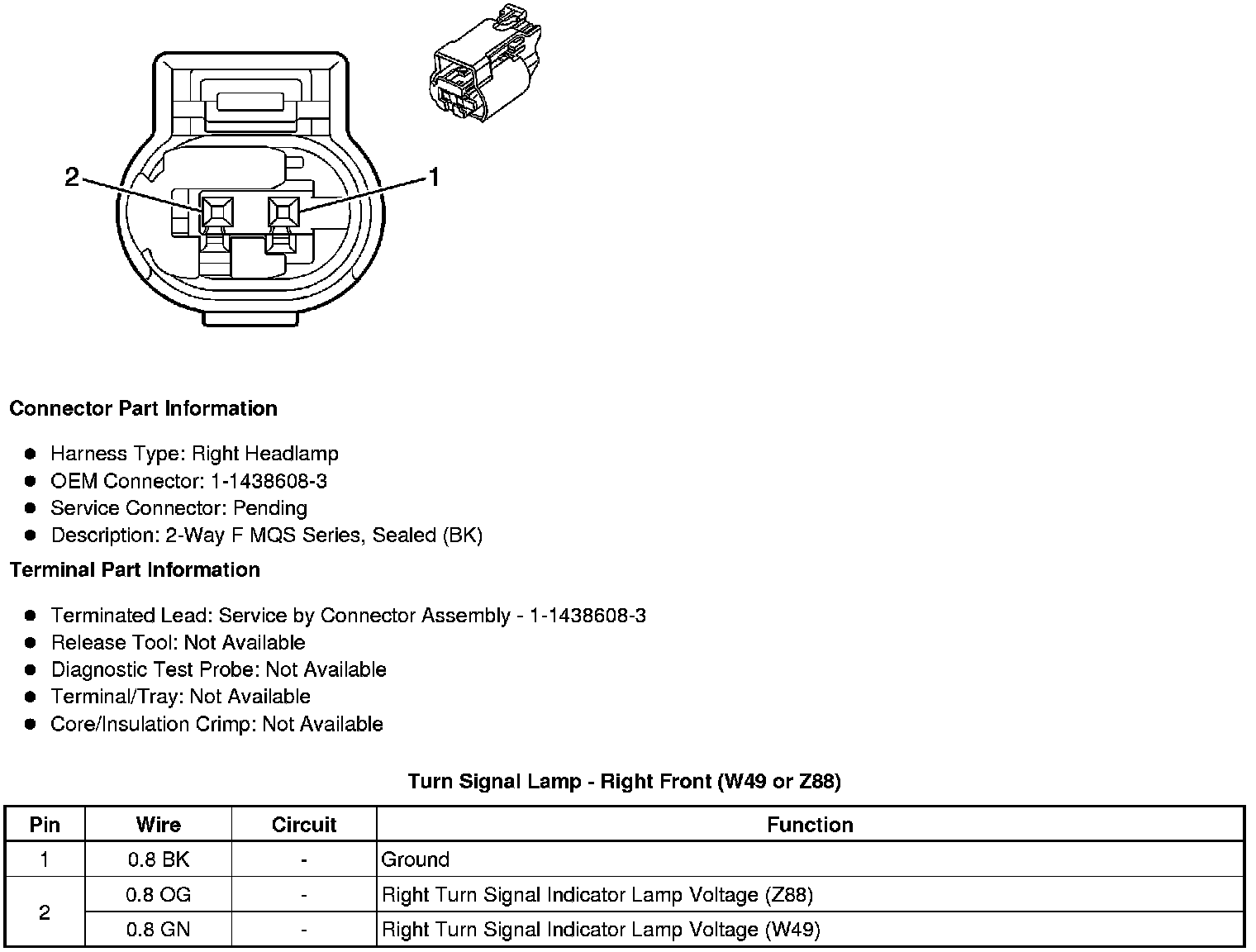

Turn Signal Lamp - Right Front (W49 or Z88)
