Wheel Speed Sensor




Component Connector End Views

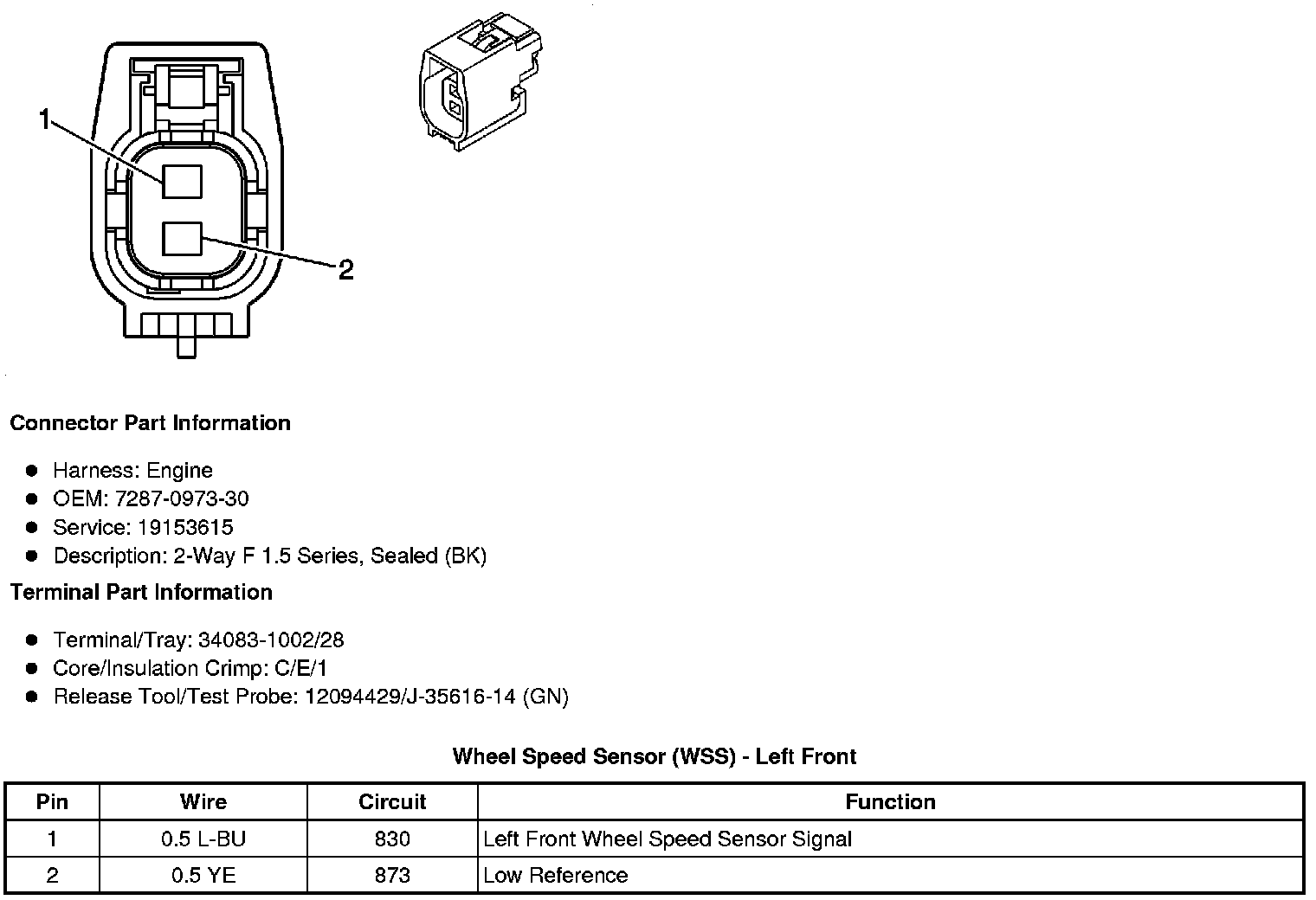

Wheel Speed Sensor (WSS) - Left Front





Wheel Speed Sensor (WSS) - Left Rear

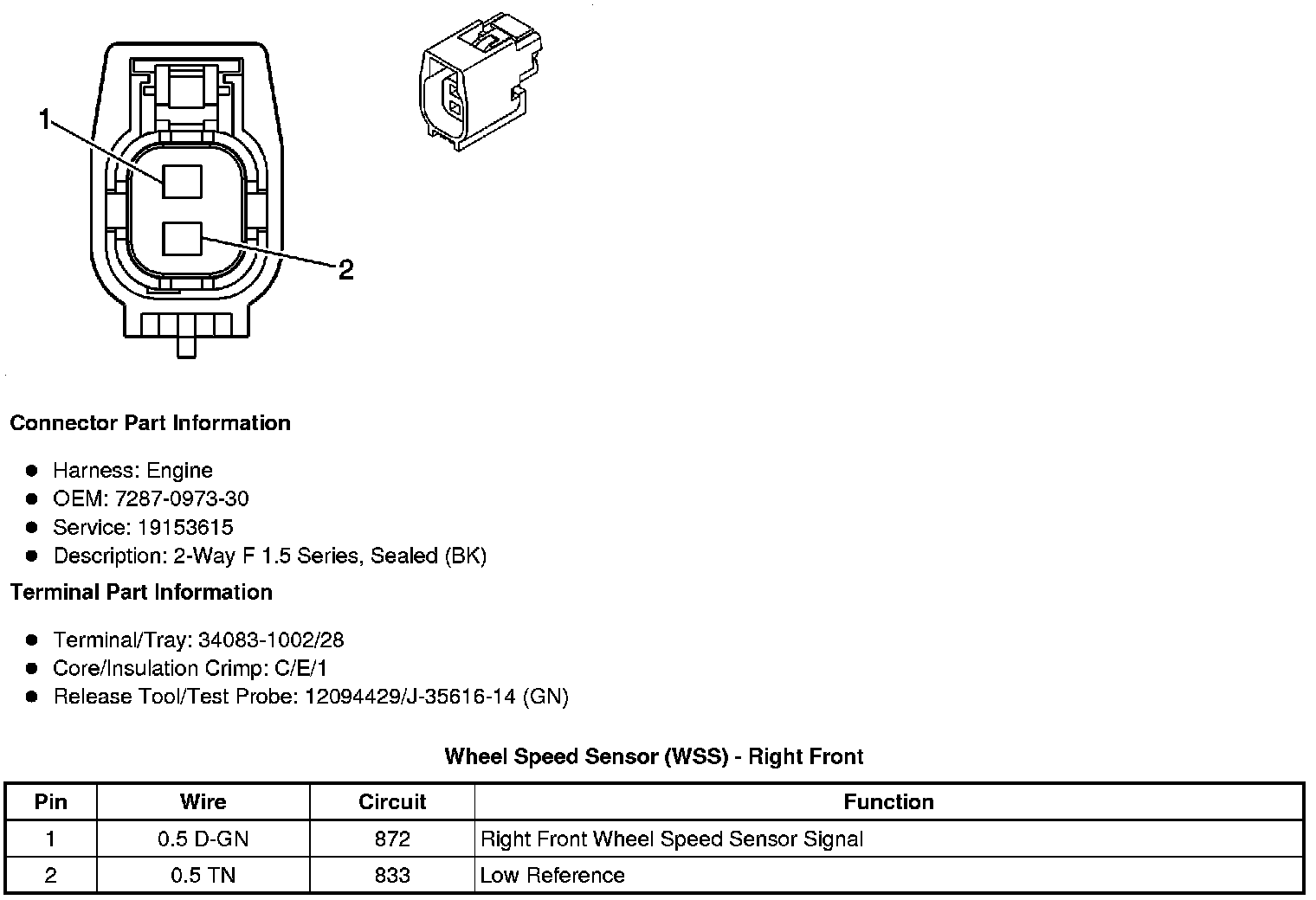

Wheel Speed Sensor (WSS) - Right Front

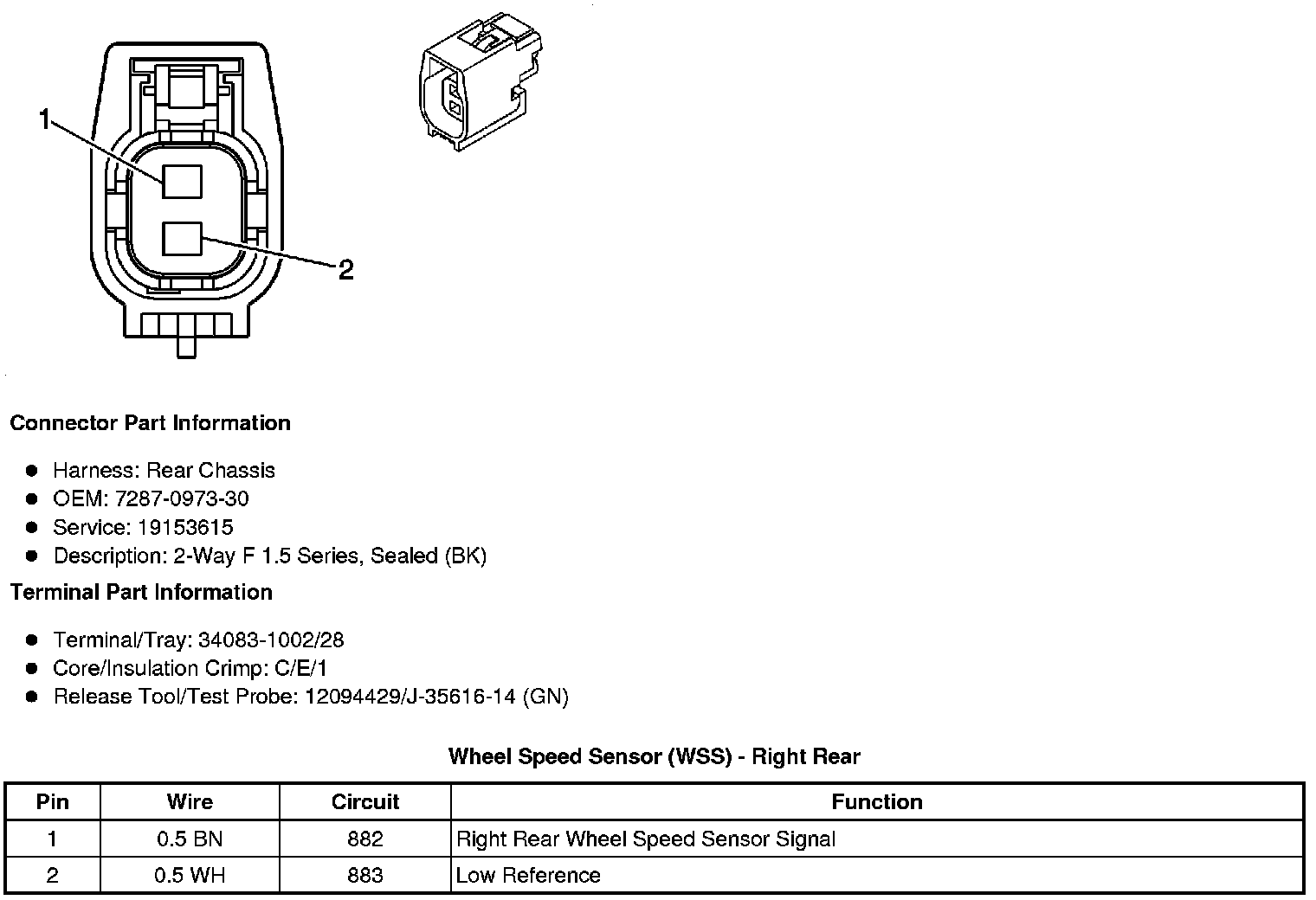

Wheel Speed Sensor (WSS) - Right Rear
