Door Control Module Schematics
Door Control Module Schematics

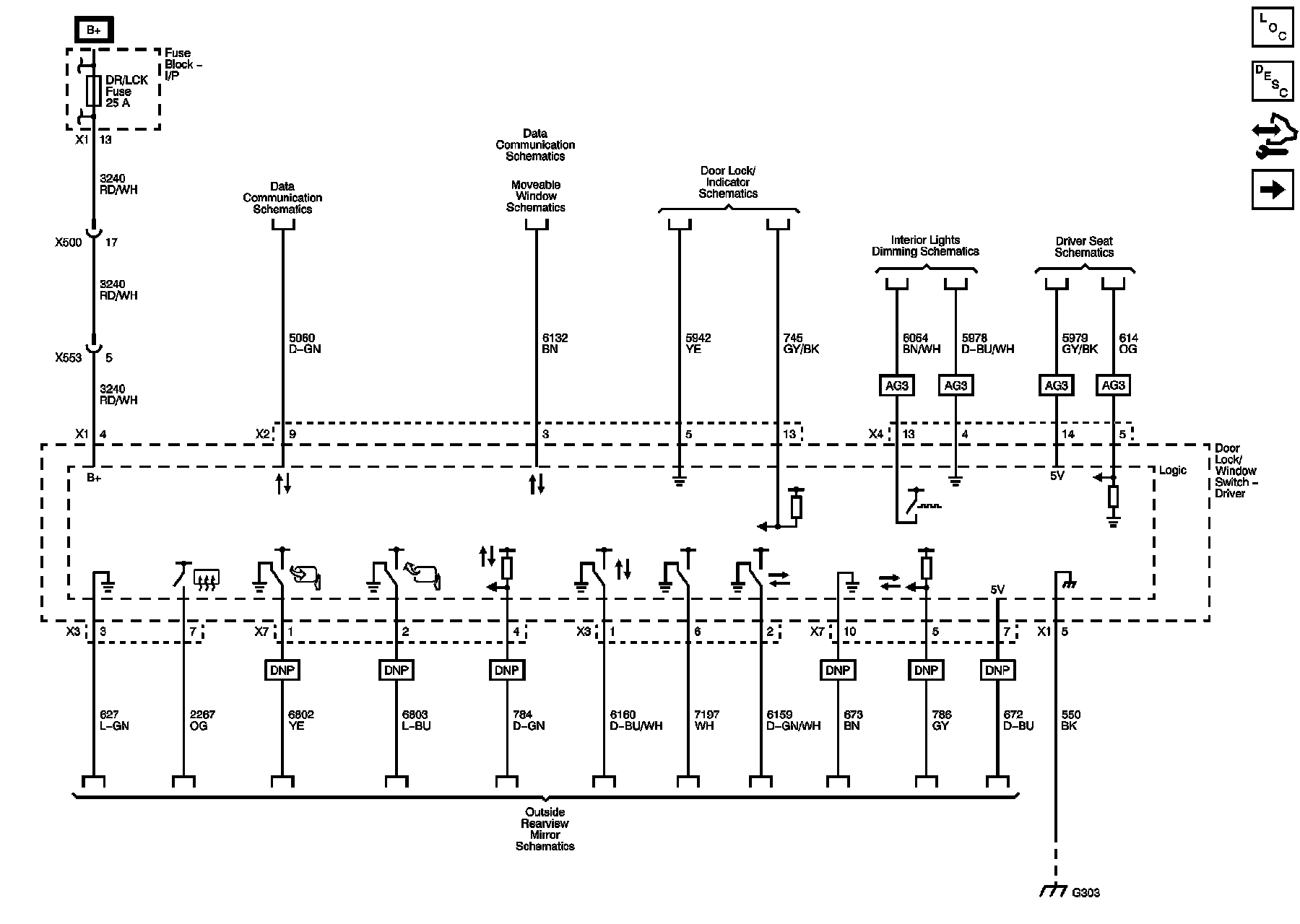

Driver Door Power, Ground, and Subsystem References (except KA1 or KB6)

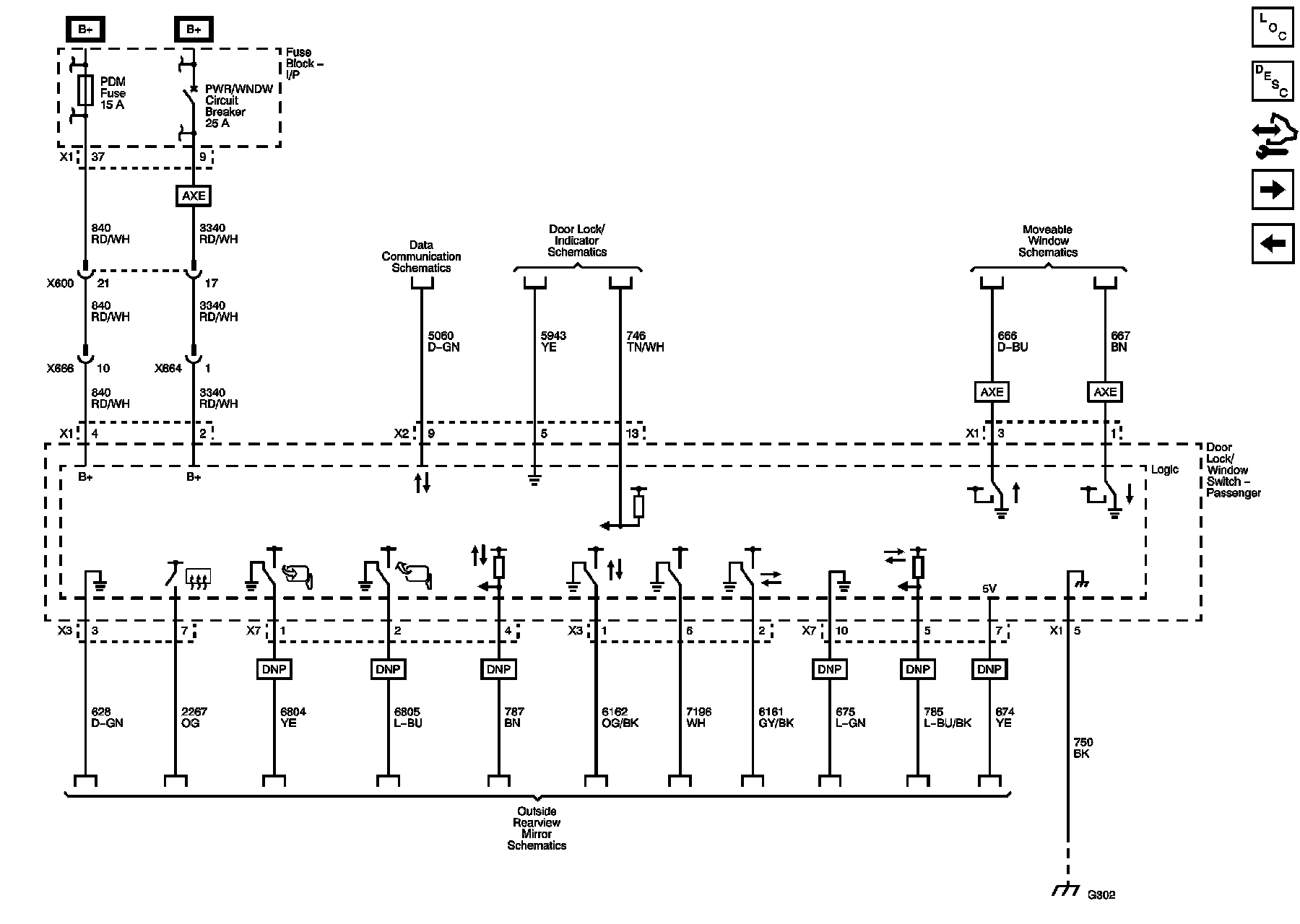

Passenger Door Power, Ground, and Subsystem References (except KA1 or KB6)

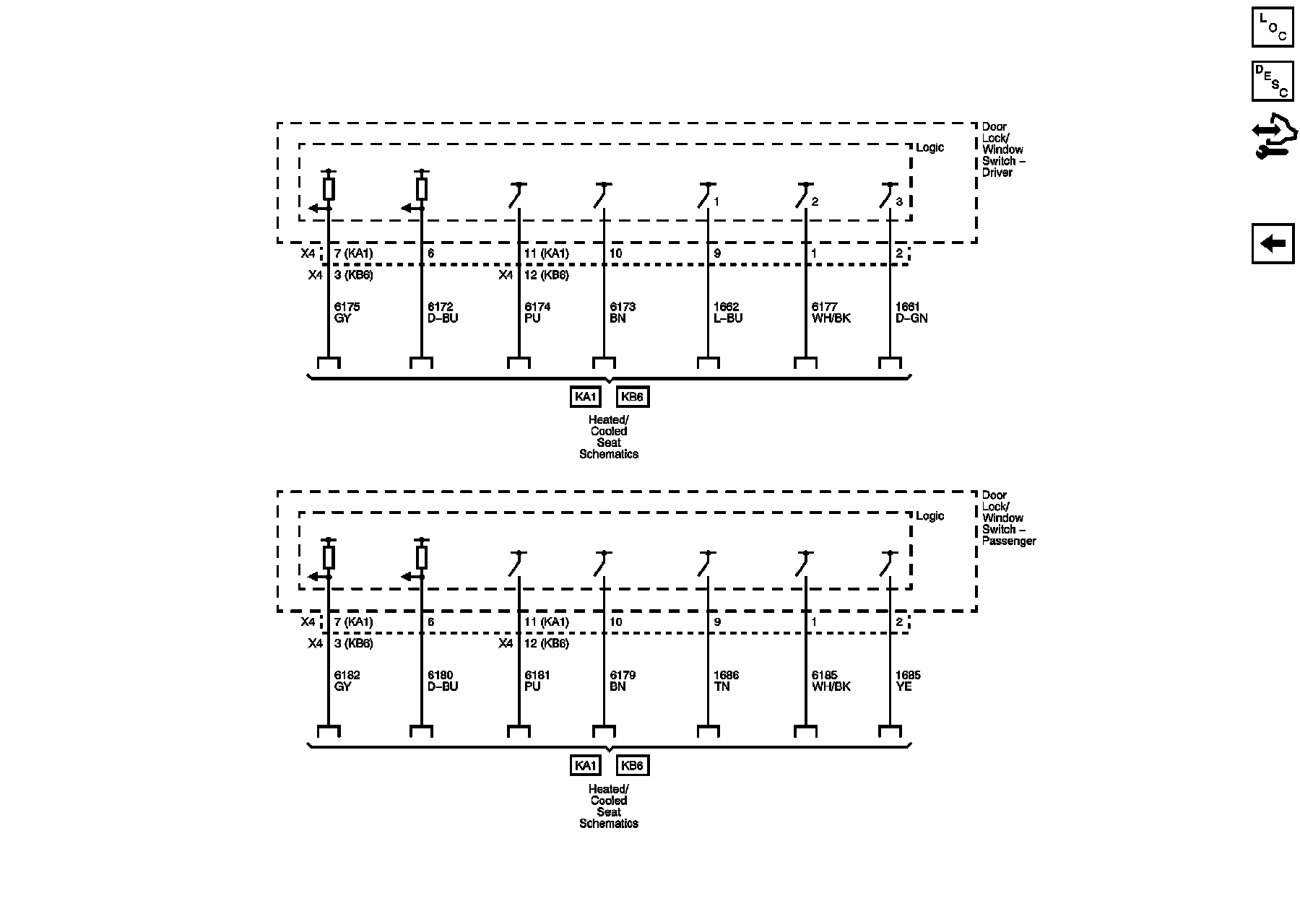

KA1 and KB6 Subsystem References
Door Control Module Schematics
Driver Door Power, Ground, and Subsystem References (except KA1 or KB6)
Passenger Door Power, Ground, and Subsystem References (except KA1 or KB6)
KA1 and KB6 Subsystem References
