Rear Camber Adjustment

Rear Camber Adjustment

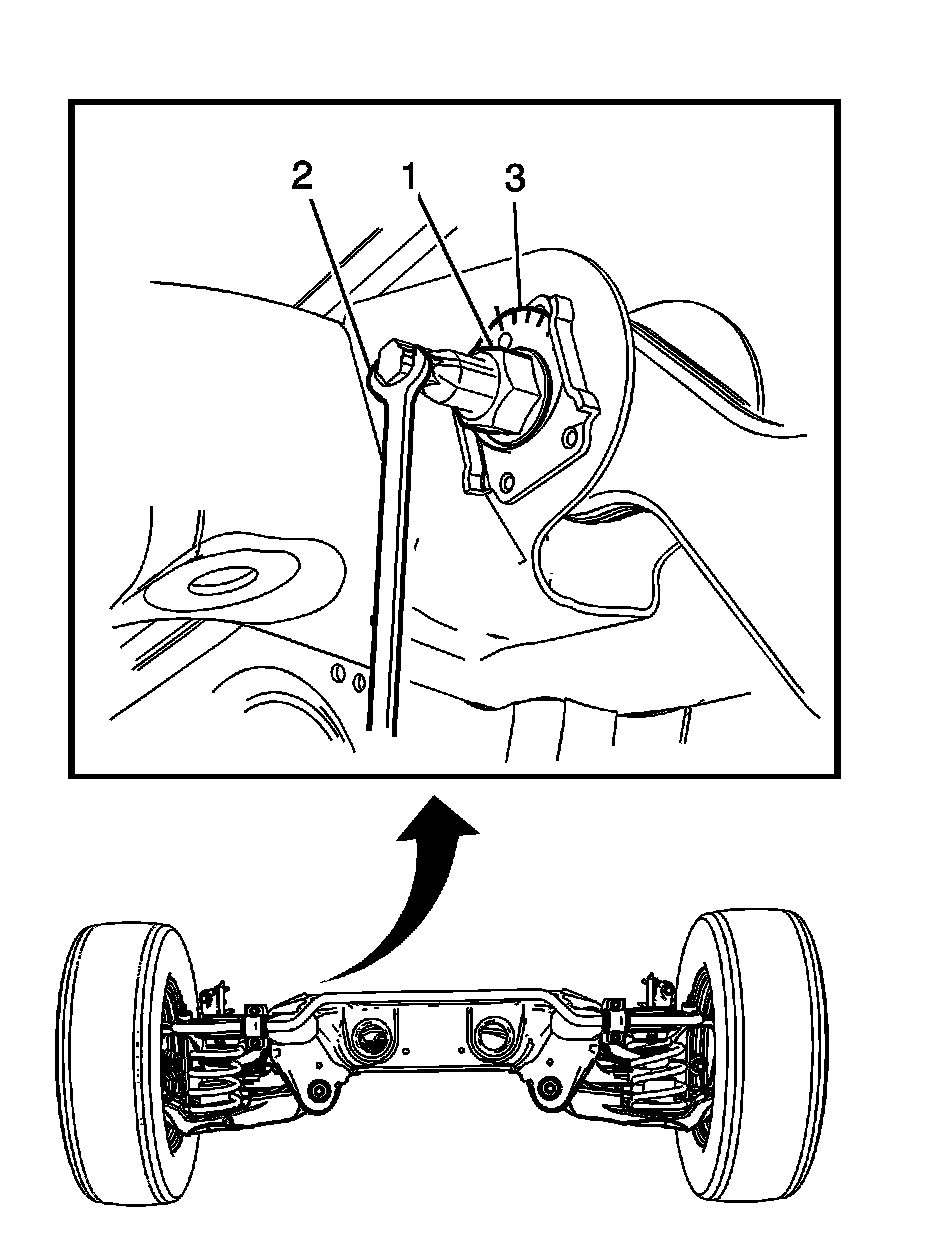

1. Loosen the adjuster cam nut (1).
2. Using a wrench to rotate the adjuster bolt (2), adjust the cam (3) to specifications.

Note: Ensure that the camber settings have not changed after torquing the adjuster nut to specifications. Readjust if necessary.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Using a wrench to hold the adjuster bolt (2), tighten the adjuster nut (1).

Tighten the nut to 140 Nm (103 lb ft).

4. Check the toe alignment and adjust if required. Refer to Rear Toe Adjustment (Rear Toe Adjustment).
5. Test drive the vehicle.
