Power Distribution Schematic 13




Power Distribution Schematics

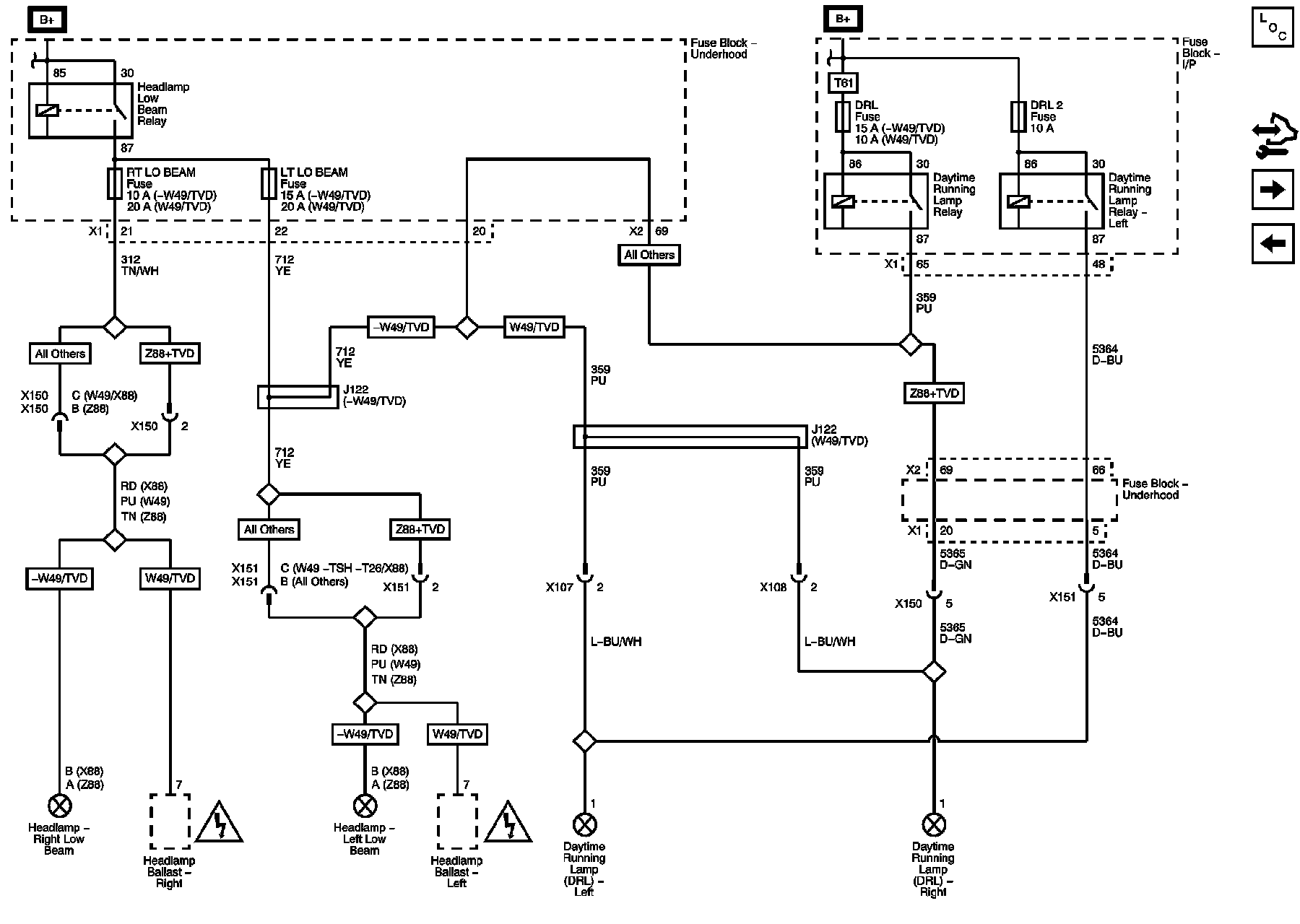

DRL, DRL 2, LT LO BEAM, and RT LO BEAM Fuses
