Oxygen Sensor: Diagrams




Component Connector End Views

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1





Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

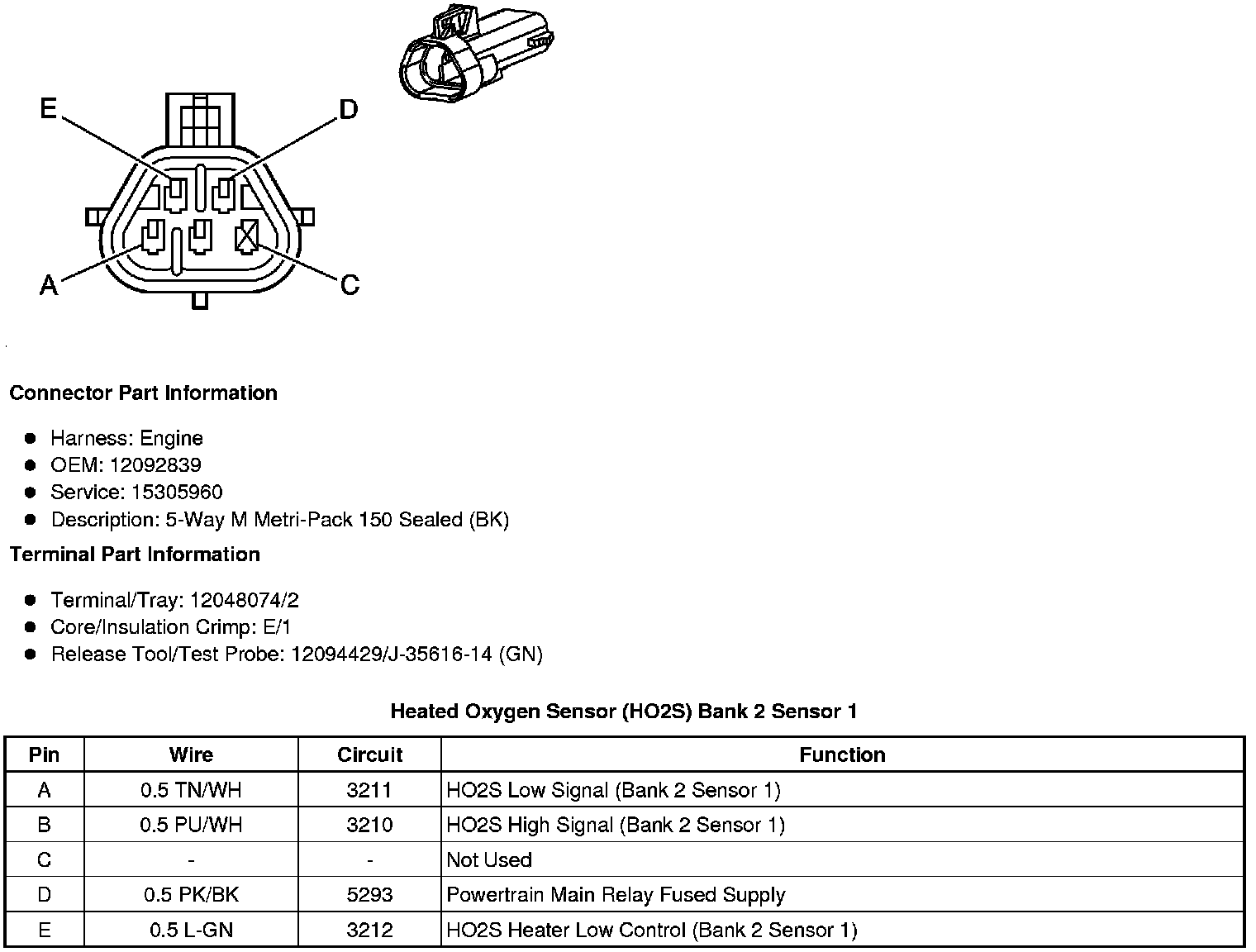

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1





Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
