Cylinder Head Assembly

Cylinder head

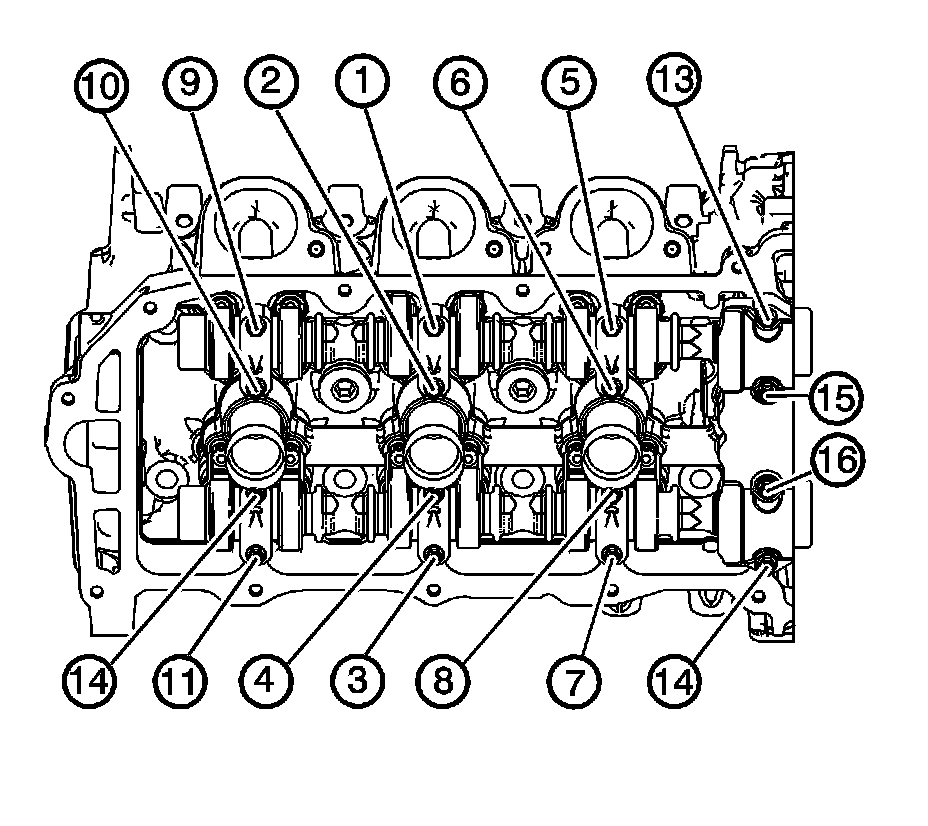

Left Sequence:

Right Sequence:

DO NOT reuse the old cylinder head bolts

M11 cylinder head bolts

First pass 30 Nm (22 lb ft)
Second pass 150 degrees

M8 cylinder head bolts

First pass 15 Nm (11 lb ft)
Second pass 75 degrees

Warpage less than 0.05 mm (0.002 in)

Camshaft caps

Right (DI):

Left (DI):

1. 10 Nm (89 lb in)
2. Bolts 1-4 Loosen
3. Bolts 1-4 10 Nm (89 lb in)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
