Map Light




Component Connector End Views

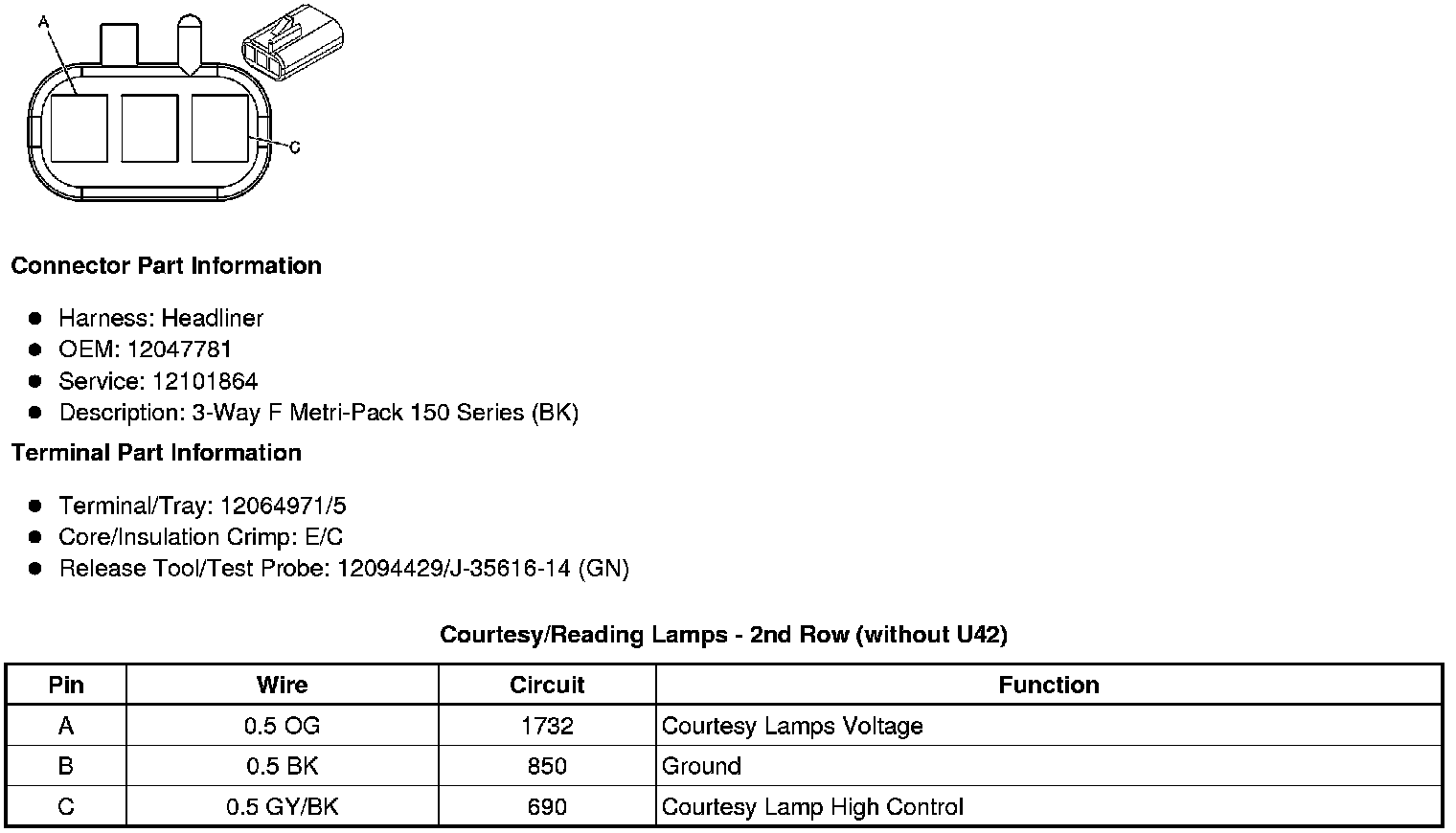

Courtesy/Reading Lamps - 2nd Row (without U42)





Courtesy/Reading Lamps - 2nd Row X1 (C3U with U42)





Courtesy/Reading Lamps - 2nd Row X2 (C3U with U42)

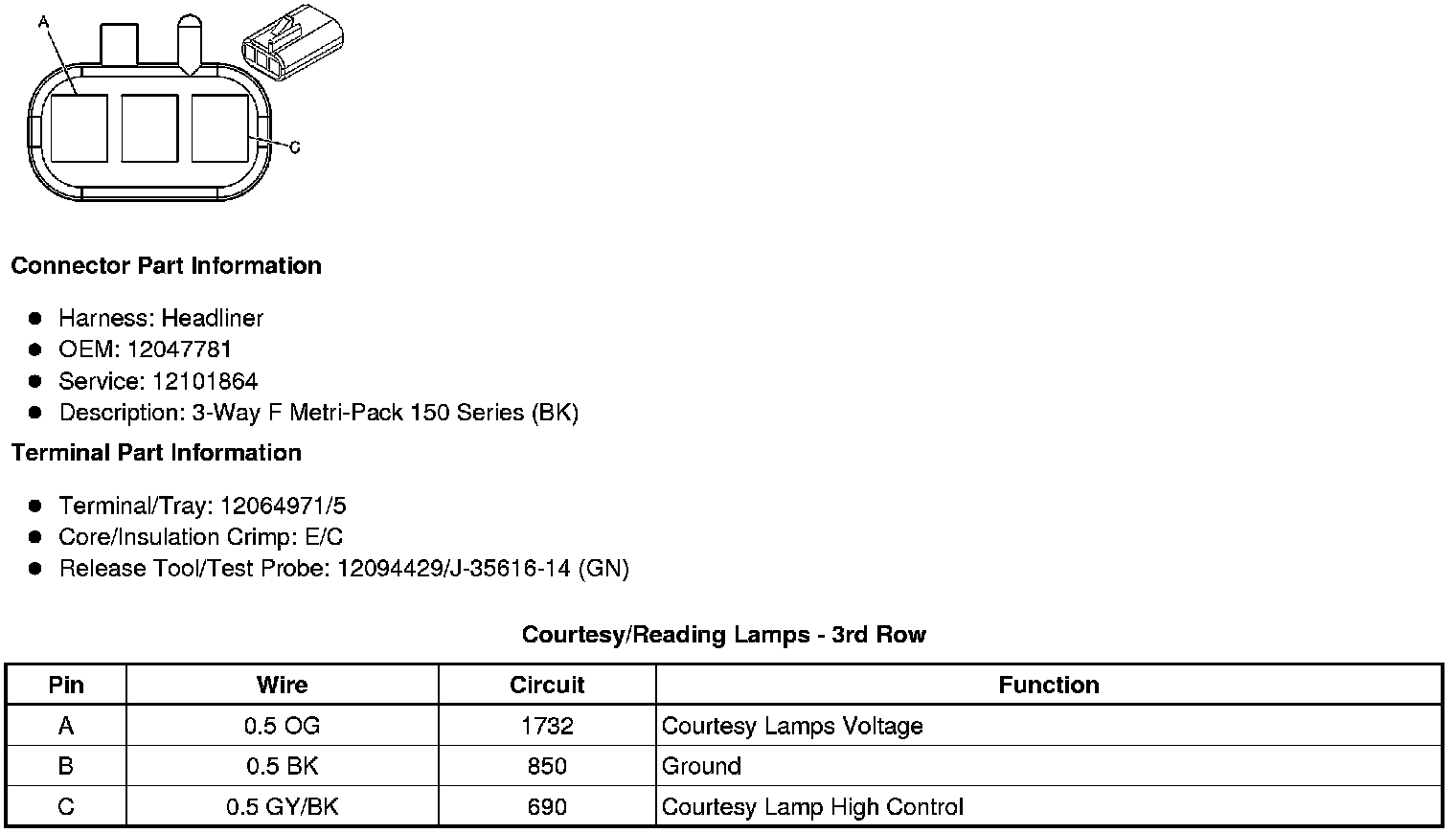

Courtesy/Reading Lamps - 3rd Row

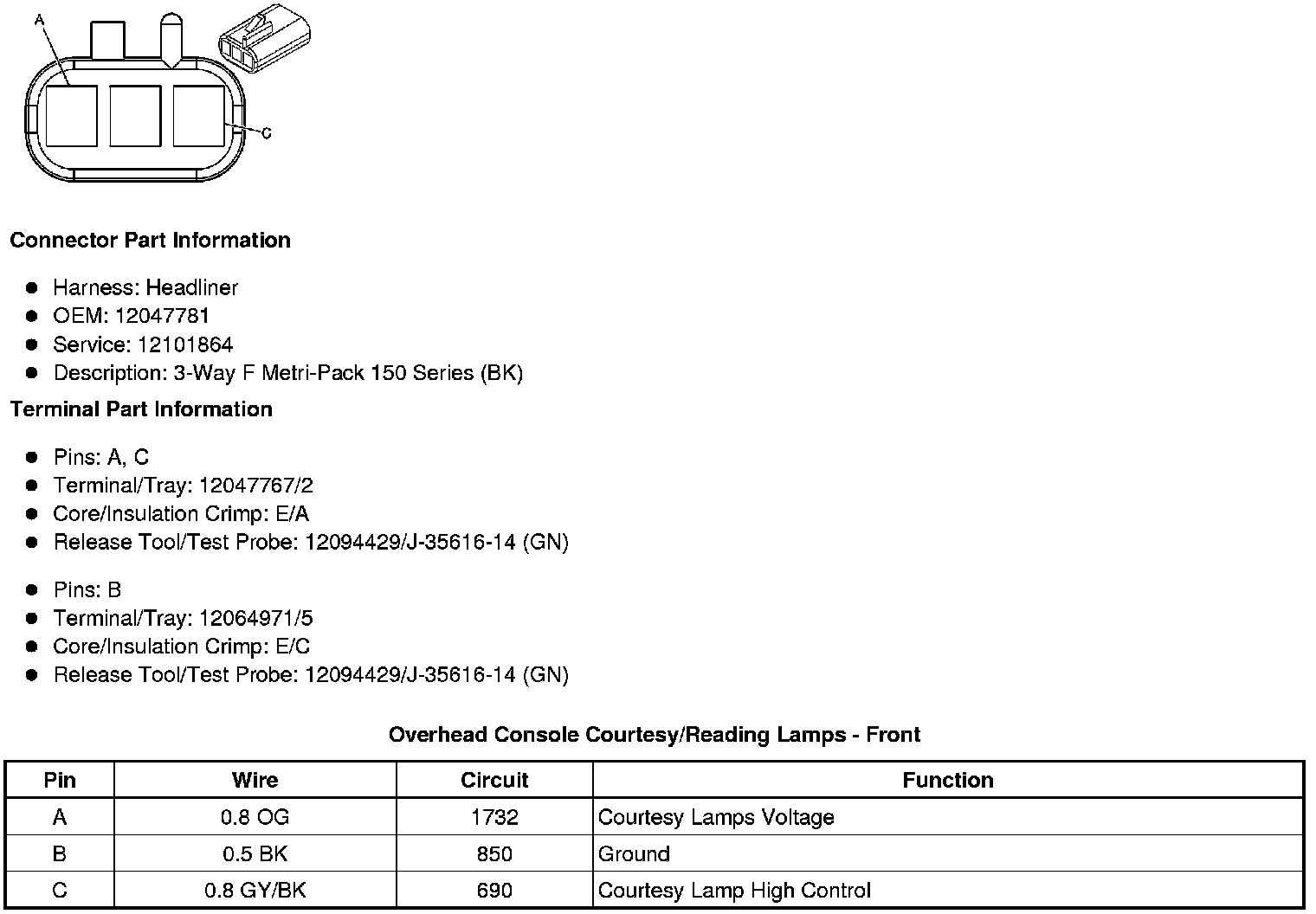

Overhead Console Courtesy/Reading Lamps - Front
