Power, Ground, Serial Data, and Traction Control

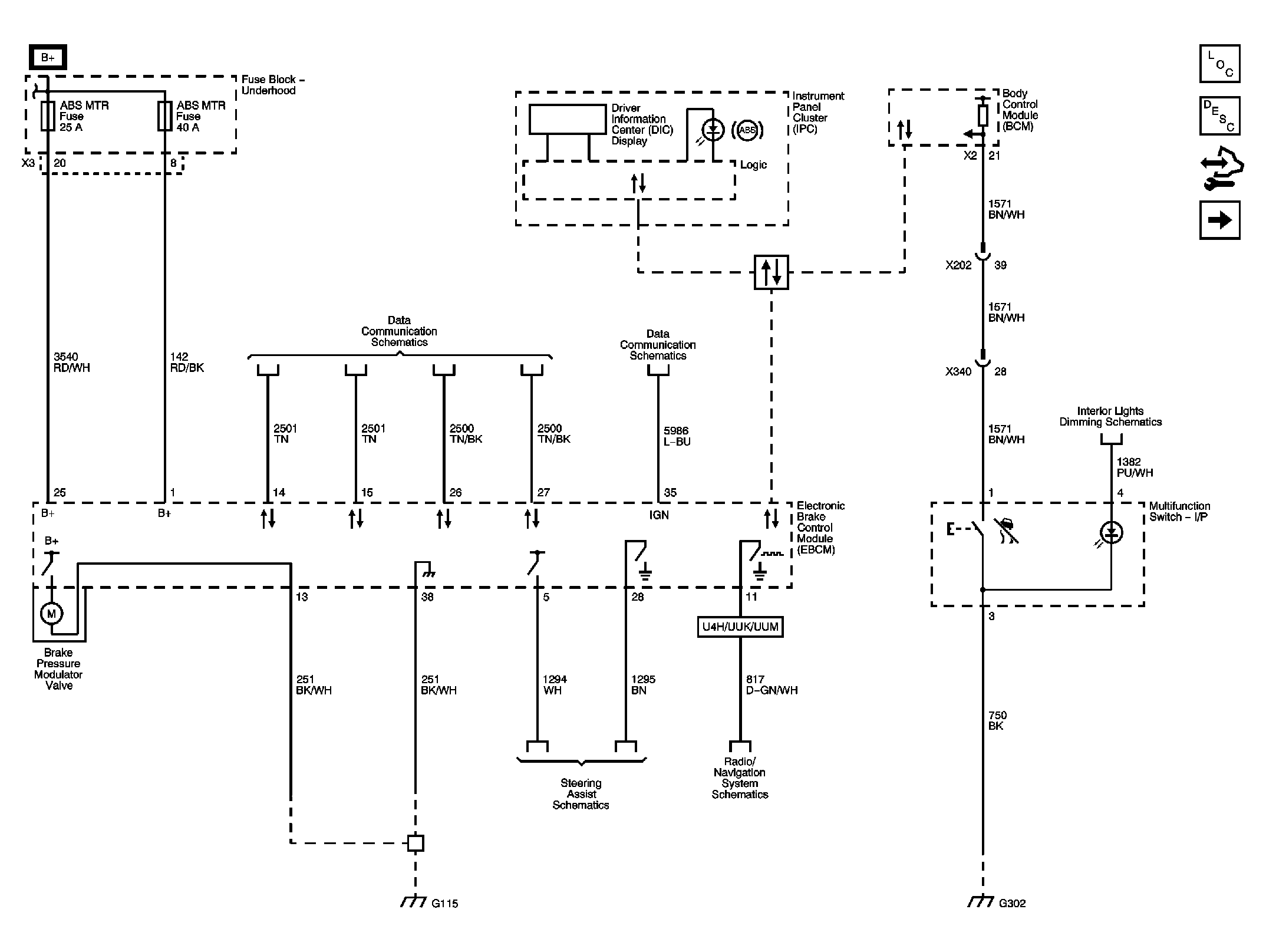

Fig 1: Power, Ground, Serial Data, and Traction Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
