Installation Procedure

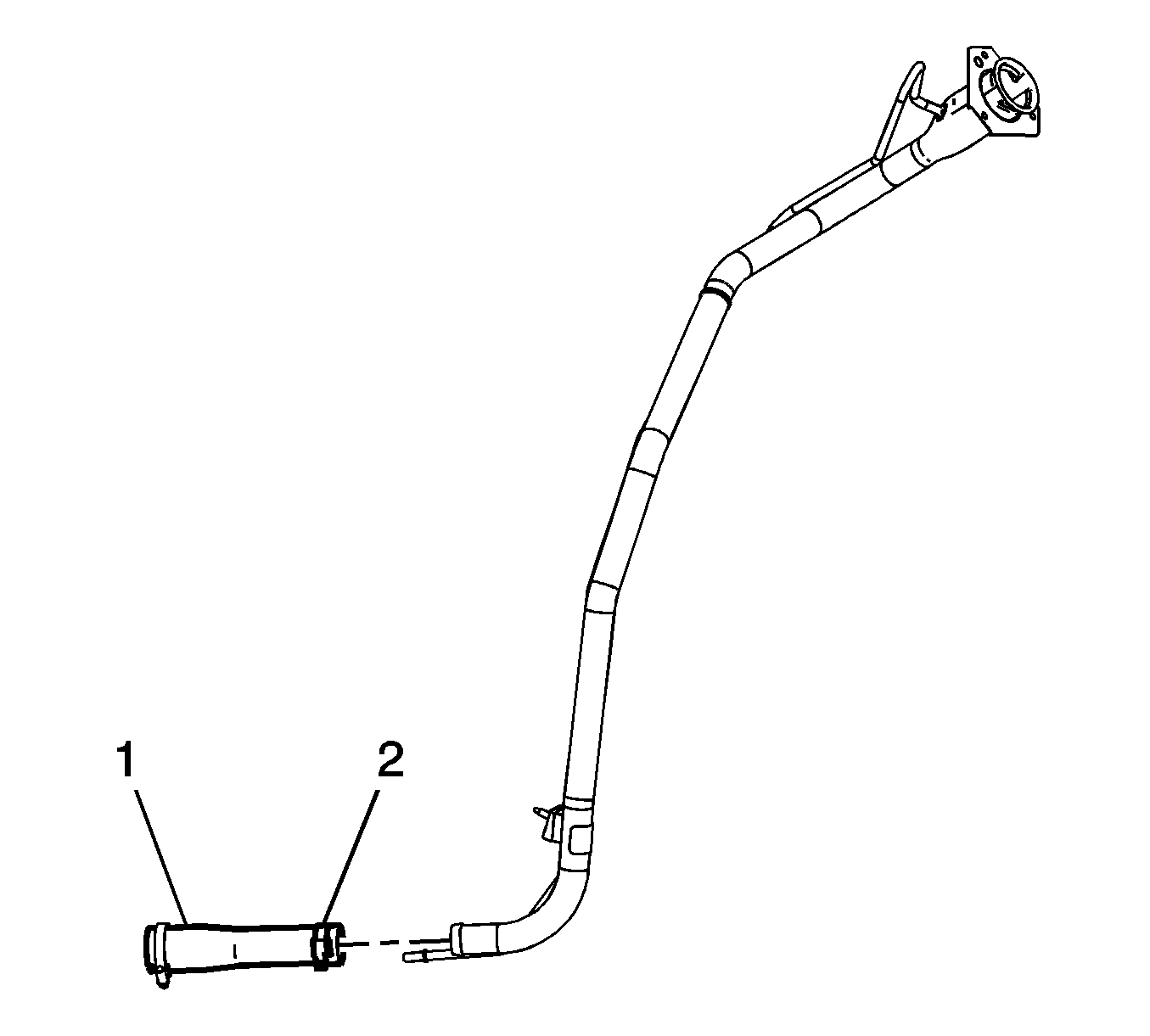

    Fig 1: View Of Fuel Tank Fill Hose
    GM1860192Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank fill hose (1), if necessary.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten the fuel tank fill hose clamp (2), if necessary.

    Tighten

    Tighten the clamp to 3.3 N.m (29 lb in).

    3. Fig 2: Identifying Fuel Fill Pipe
    GM1859411Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Ensure that the notch in the fill hose aligns with the tab on the fuel tank.

  3. Position and install the fuel tank fill hose (2) to the fuel tank.
  4. Connect the evaporative emission (EVAP) canister vent rear pipe quick connect fitting (4) to the recirculation line on the fuel tank fill pipe (3). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Tighten the fuel tank fill hose clamp (1) at the fuel tank.

    Tighten

    Tighten the clamp to 3.3 N.m (29 lb in).

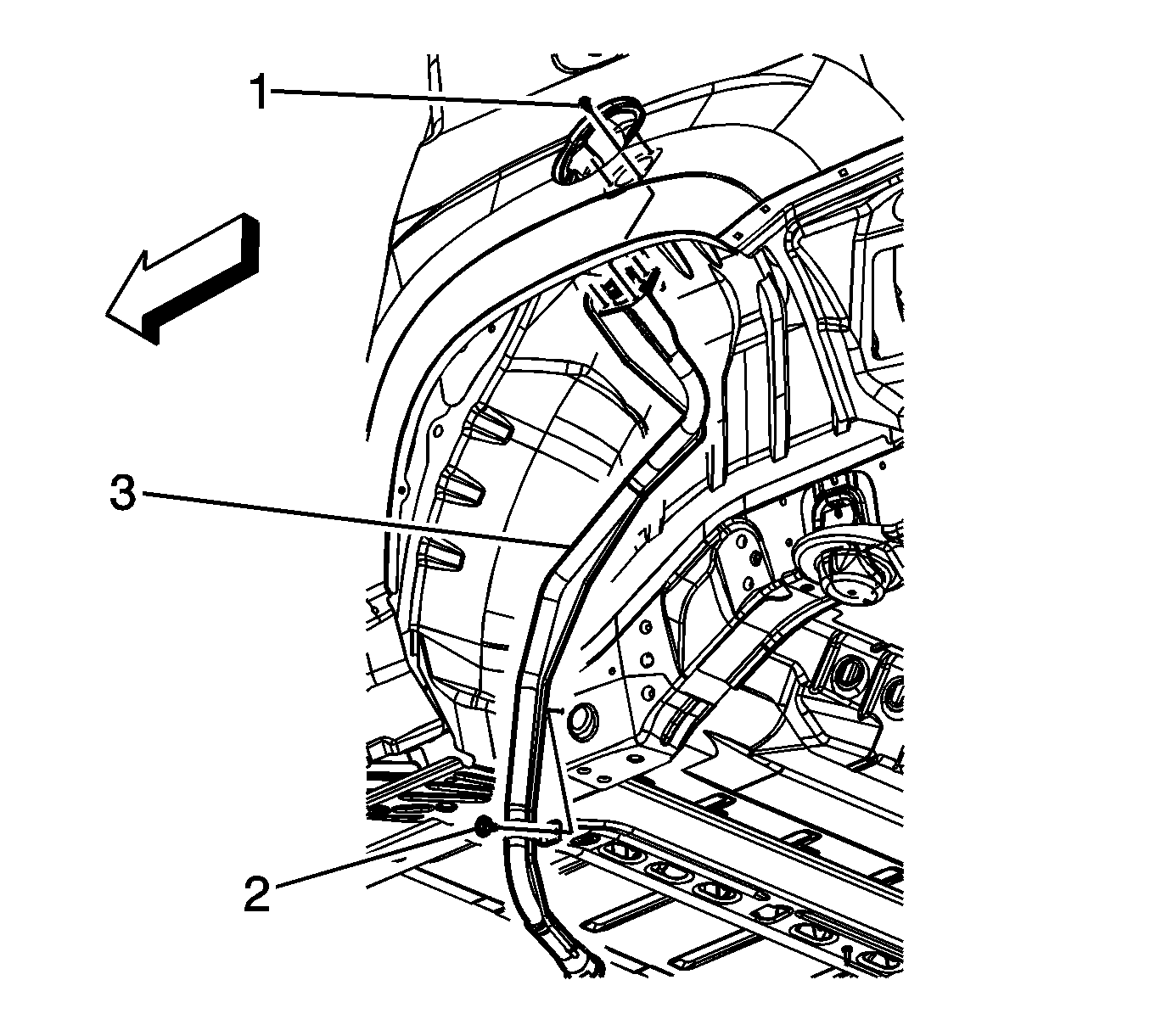

    6. Fig 3: Identifying Fuel Tank Fill Pipe Housing And Fuel Tank Fill Pipe Bolts
    GM1860188Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel tank fill pipe bracket bolt (2).

    Tighten

    Tighten the bolt to 12 N.m (106 lb in).

  7. Install the left rear wheelhouse liner panel. Refer to Rear Wheelhouse Panel Liner Replacement .
  8. Install the left rear wheel and tire. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
  10. Install the fuel tank fill pipe housing to fuel tank fill pipe bolts (1).

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  11. Install the fuel fill cap.
