Removal Procedure

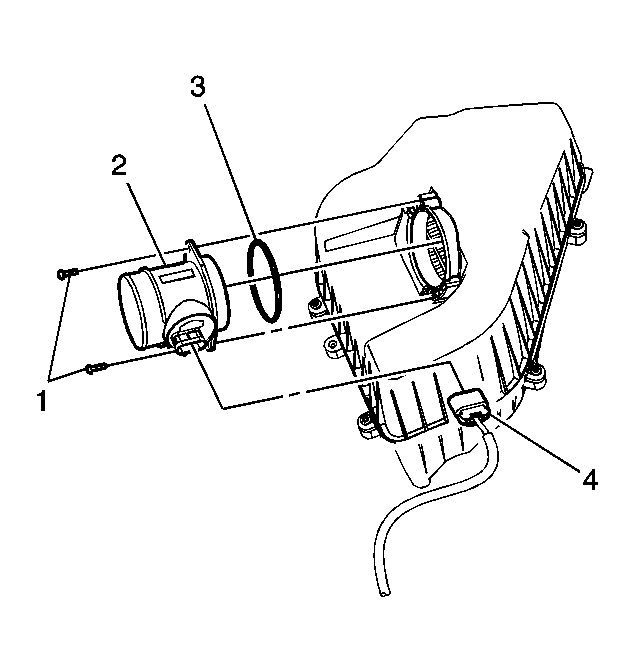

    Fig 1: Identifying Mass Airflow Sensor/Intake Air Temperature Sensor
    GM1858081Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Disconnect the engine wiring harness electrical connector (4) from the mass air flow (MAF)/intake air temperature (IAT) sensor.
  3. Remove the MAF/IAT sensor screws (1).
  4. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
  5. Remove the MAF/IAT sensor seal (3).
