Subsystem References (1 of 3)

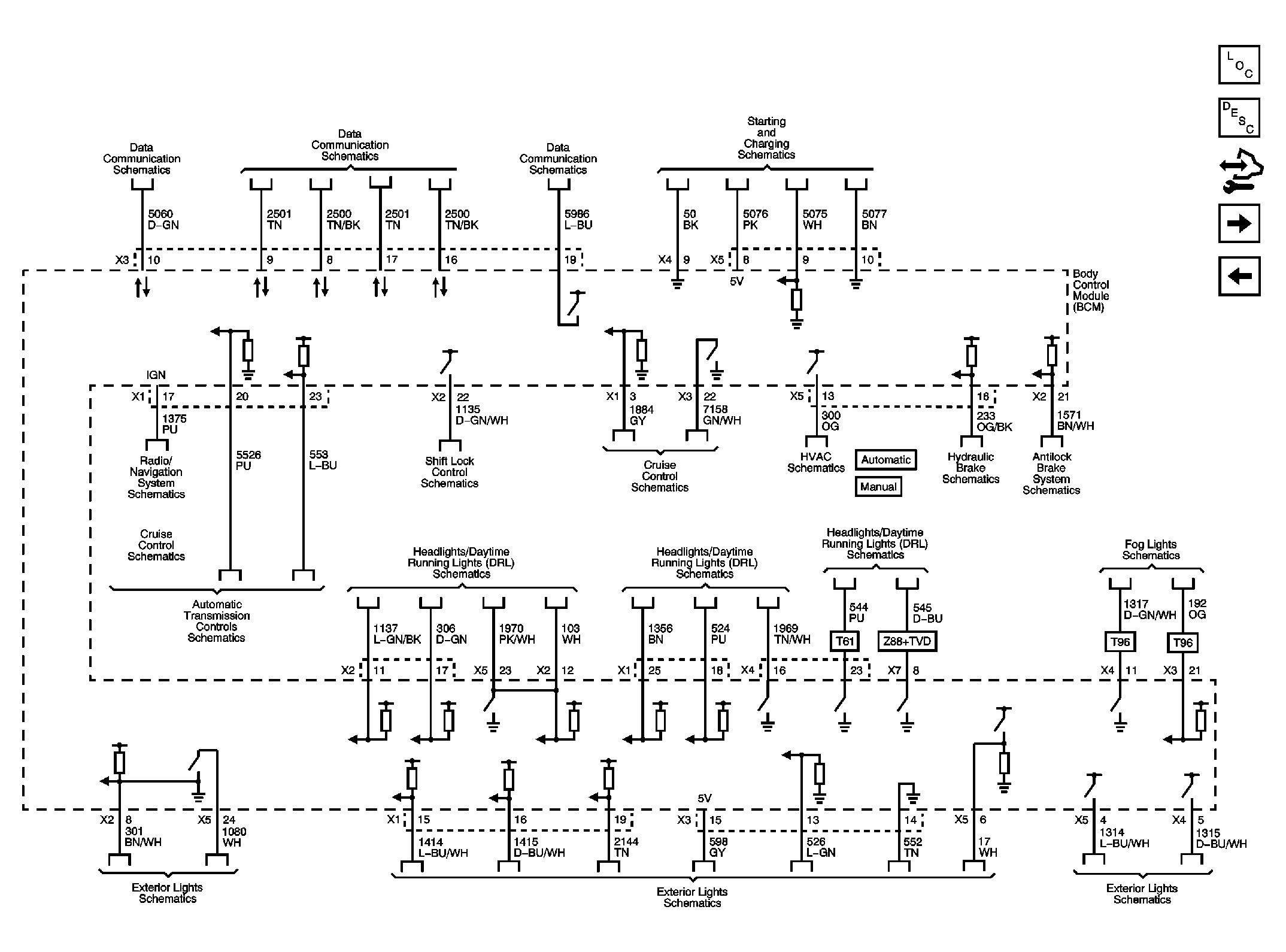

Fig 1: Wiring Schematic Subsystem References (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
