Low Speed GMLAN

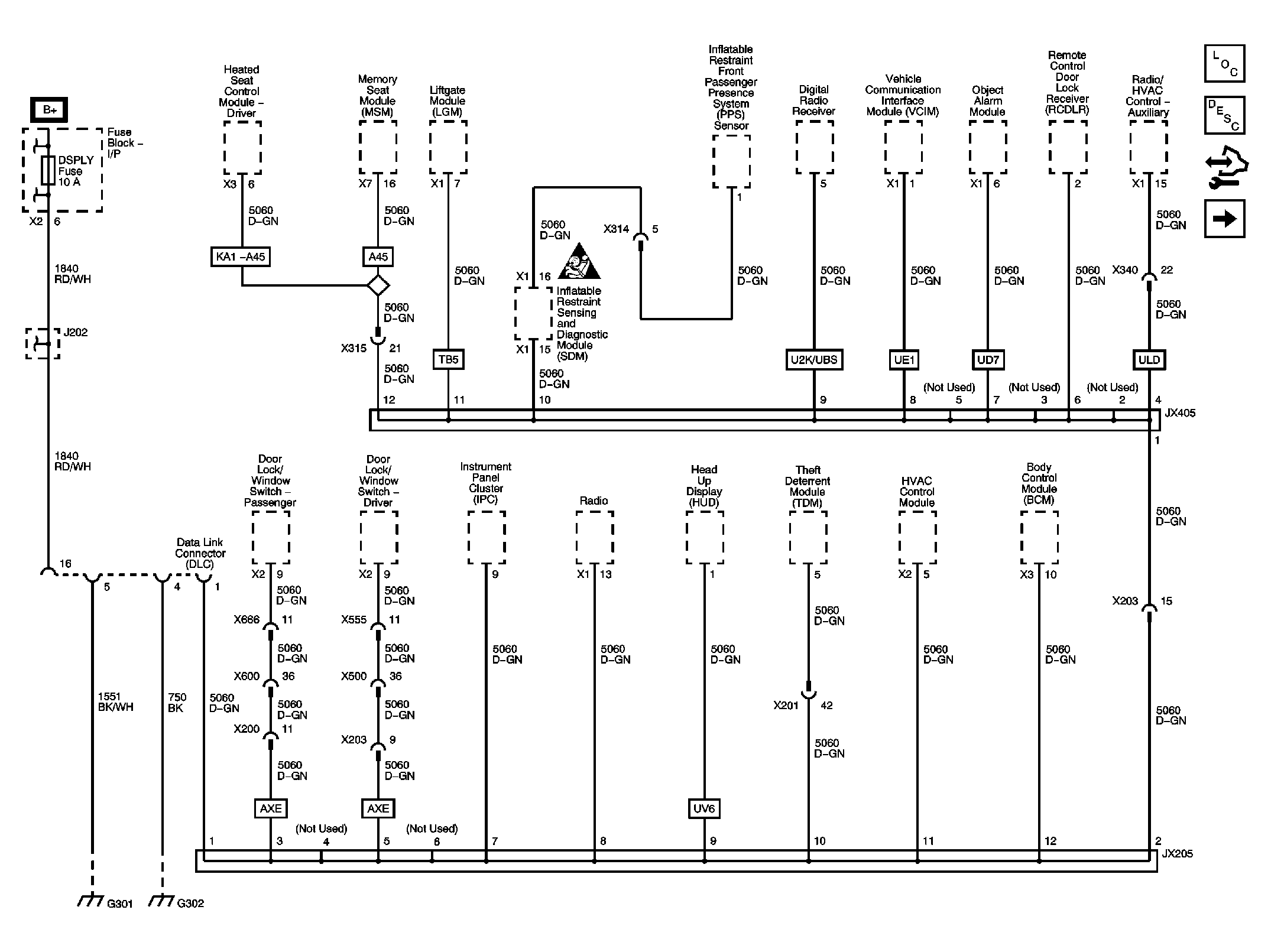

Fig 1: Wiring Schematic Low Speed GMLAN
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
