Keyless Entry - Active

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

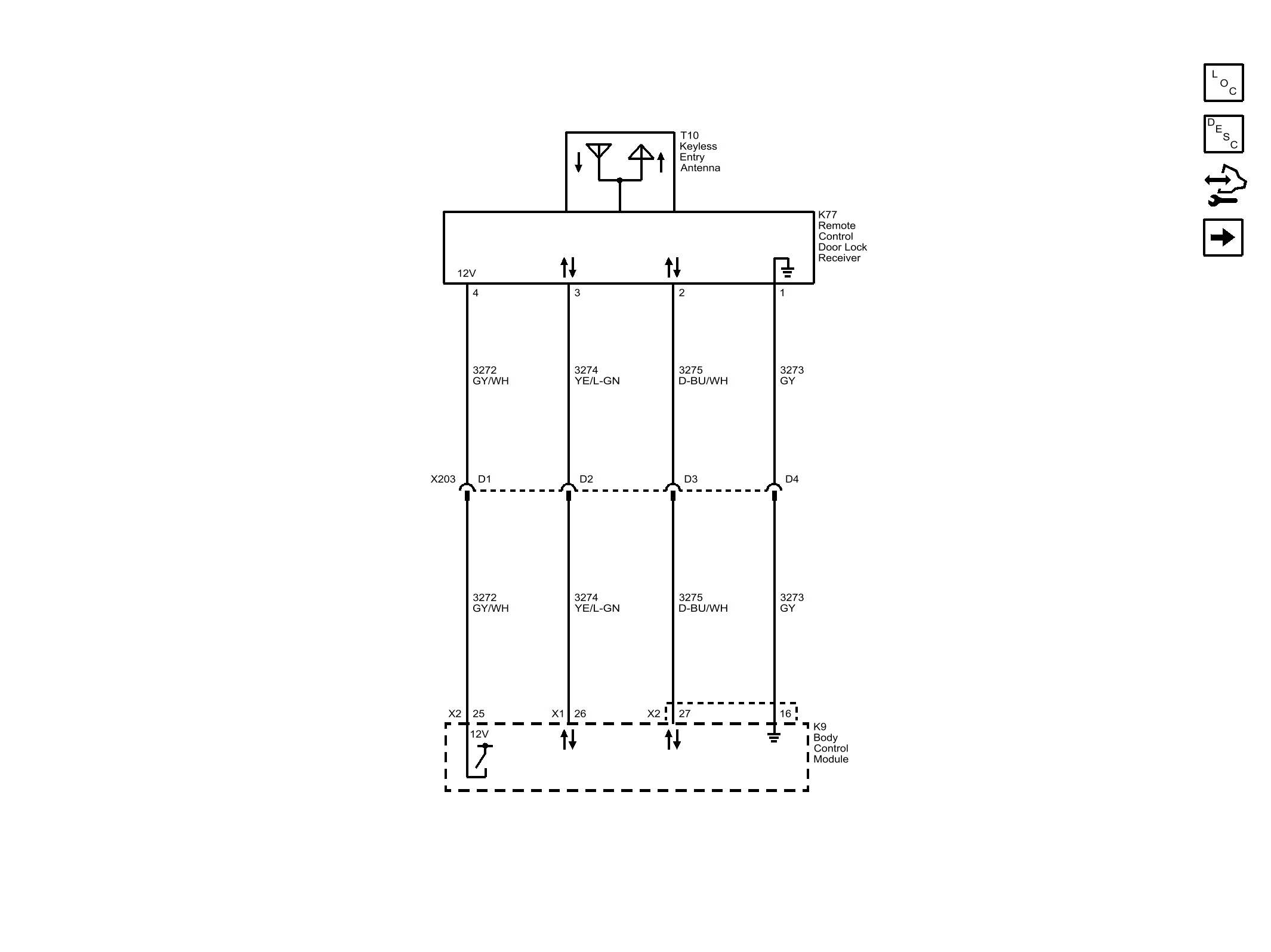

Fig 1: Keyless Entry - Active
GM3755249Courtesy of GENERAL MOTORS COMPANY
