Front View Camera Replacement (With UFL)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

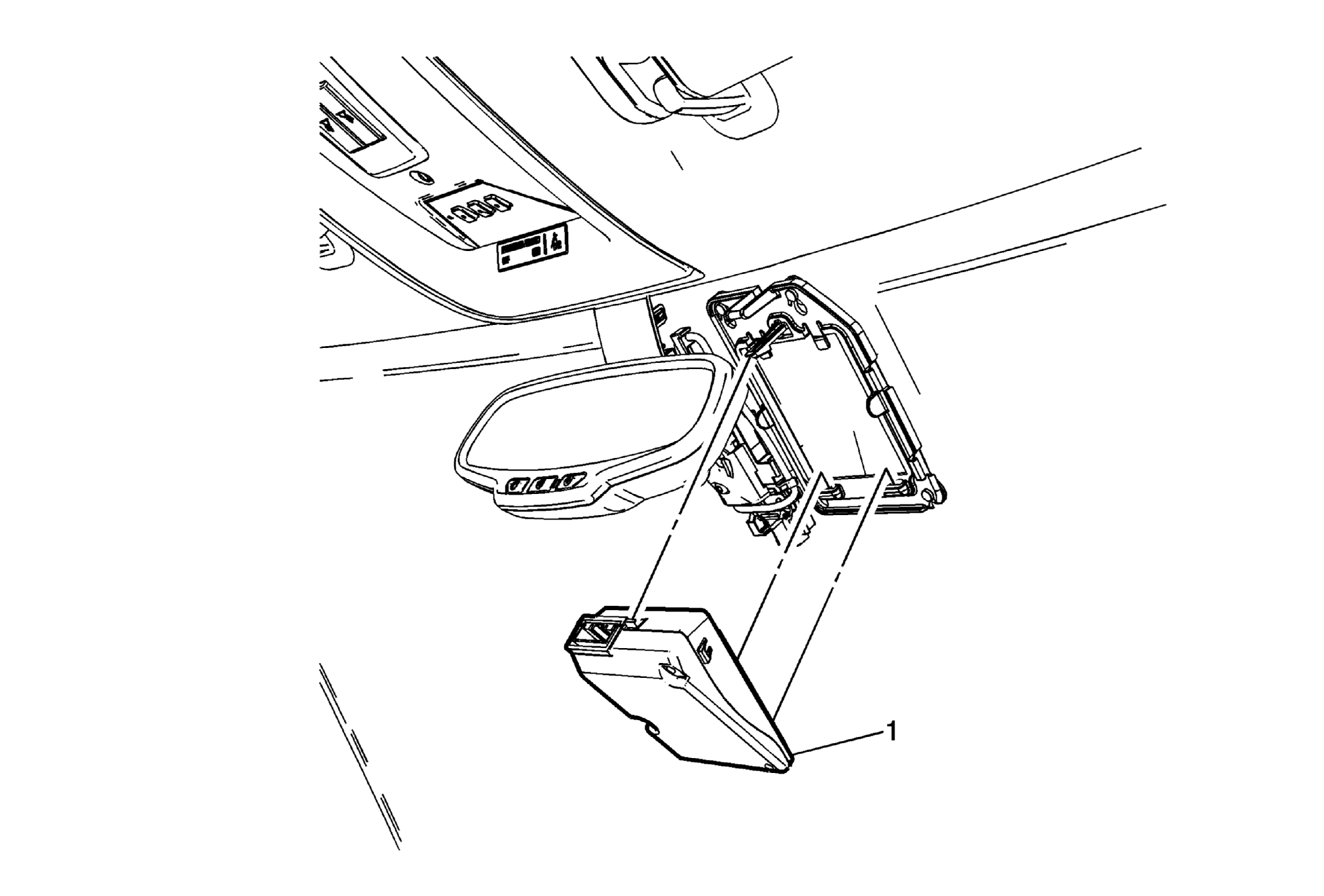

Fig 1: Front View Camera (With UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .
1	Front View Camera Procedure Gently depress top center tab on bracket to release camera. Disconnect the electrical connector. After replacement of the front view camera, program the front view camera. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the windshield multifunction sensor mounting bracket cover Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .

Front View Camera

Procedure

Gently depress top center tab on bracket to release camera.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
