Short Range Radar Sensor Replacement (Front)

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

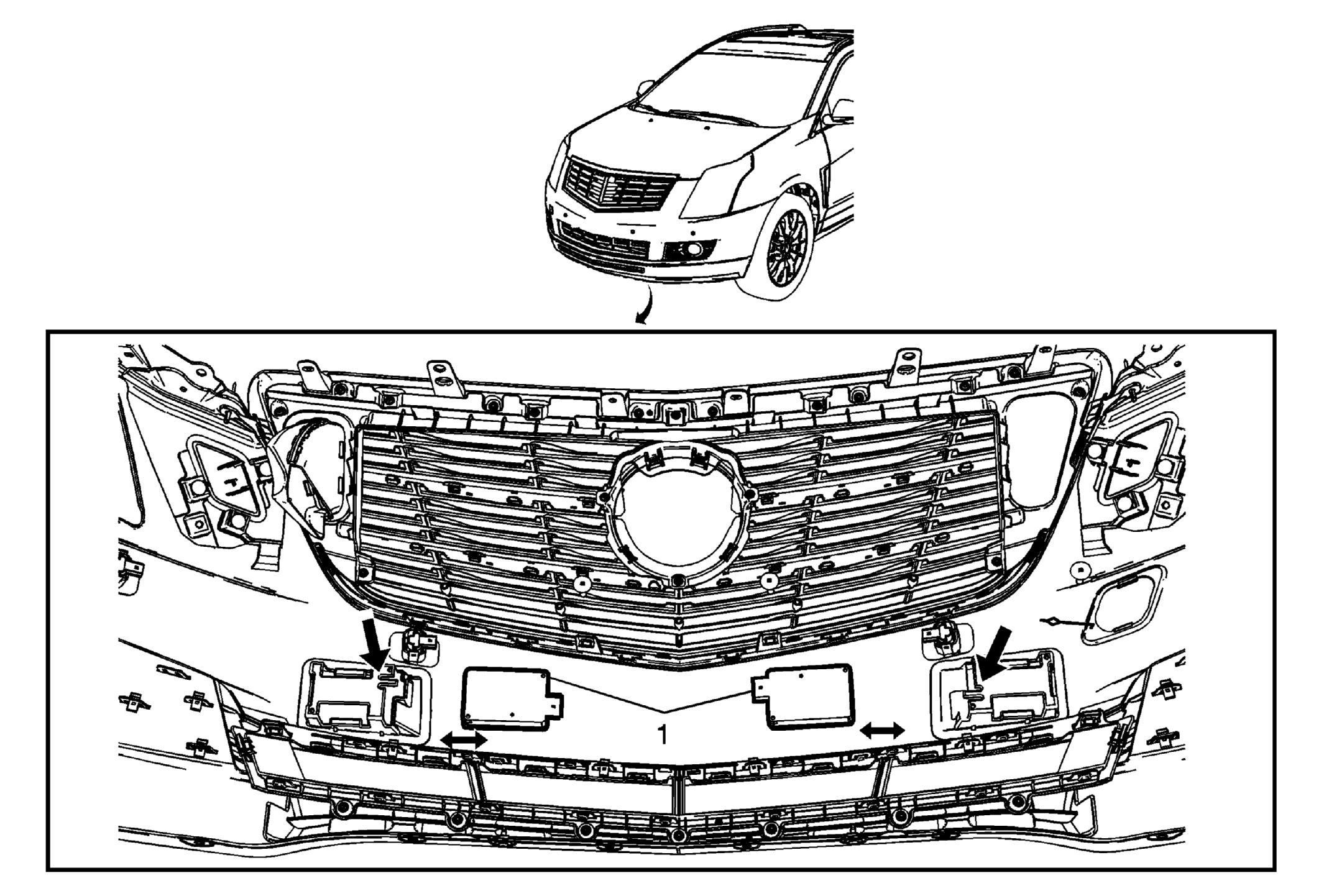

Fig 1: Short Range Radar Sensor (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Short Range Radar Sensor (Qty 2) Procedure Place the front bumper fascia face down on a clean protected surface. Disconnect the electrical connector. Release the tab retainer (arrow) and slide the left hand side object sensor to the right or slide the right hand side object sensor the left and remove. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Short Range Radar Sensor (Qty 2)

Procedure

Place the front bumper fascia face down on a clean protected surface.
Disconnect the electrical connector.
Release the tab retainer (arrow) and slide the left hand side object sensor to the right or slide the right hand side object sensor the left and remove.
For programming and set up, refer to Control Module References .
