Active Safety Control Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

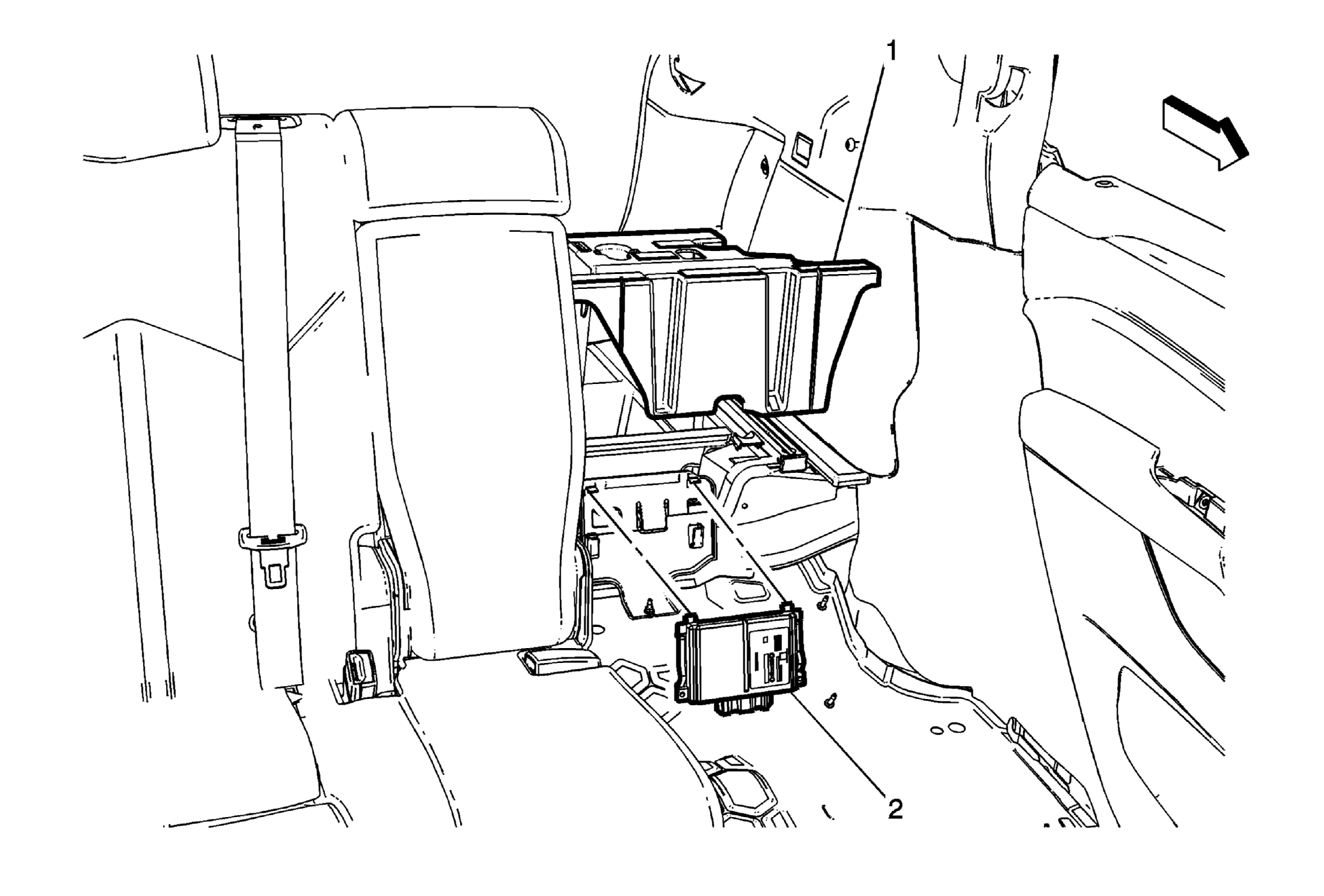

Fig 1: Active Safety Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor panel rail. Refer to Rear Compartment Floor Panel Rail Replacement .
1	Floor Trim Front Panel
2	Active Safety Control Module Procedure Release the locking retainer from the active safety control module bracket. Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor panel rail. Refer to Rear Compartment Floor Panel Rail Replacement .

Floor Trim Front Panel

Active Safety Control Module

Procedure

Release the locking retainer from the active safety control module bracket.
Disconnect the electrical connectors.
For programming and set up, refer to Control Module References .
