Forward Range Radar Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

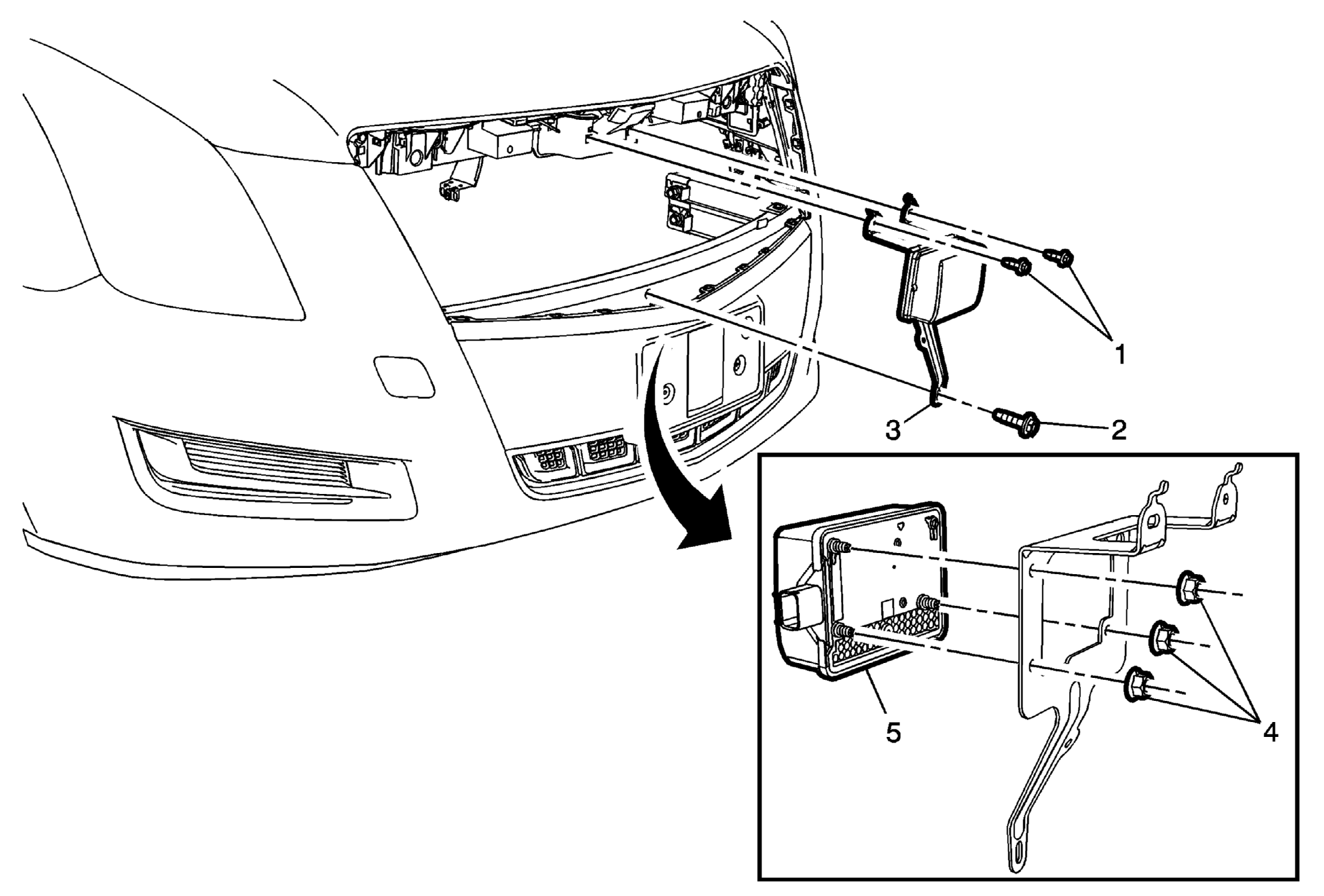

Fig 1: Forward Range Radar Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement .
1	Forward Range Radar Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Forward Range Radar Module Fastener Tighten 9 (80 lb in)
3	Forward Range Radar Module Bracket
4	Forward Range Radar Module Bracket Fastener (Qty: 3)
5	Forward Range Radar Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References . Use a digital angle gauge to align the forward range radar module vertically (at the edge or on the bracket behind the module). NOTE: The digital angle gauge must have an accuracy of ±0.5 degrees (9 mm/m). The vertical position of forward range radar module is 90 degrees (±3 degrees).
