High Speed GMLAN

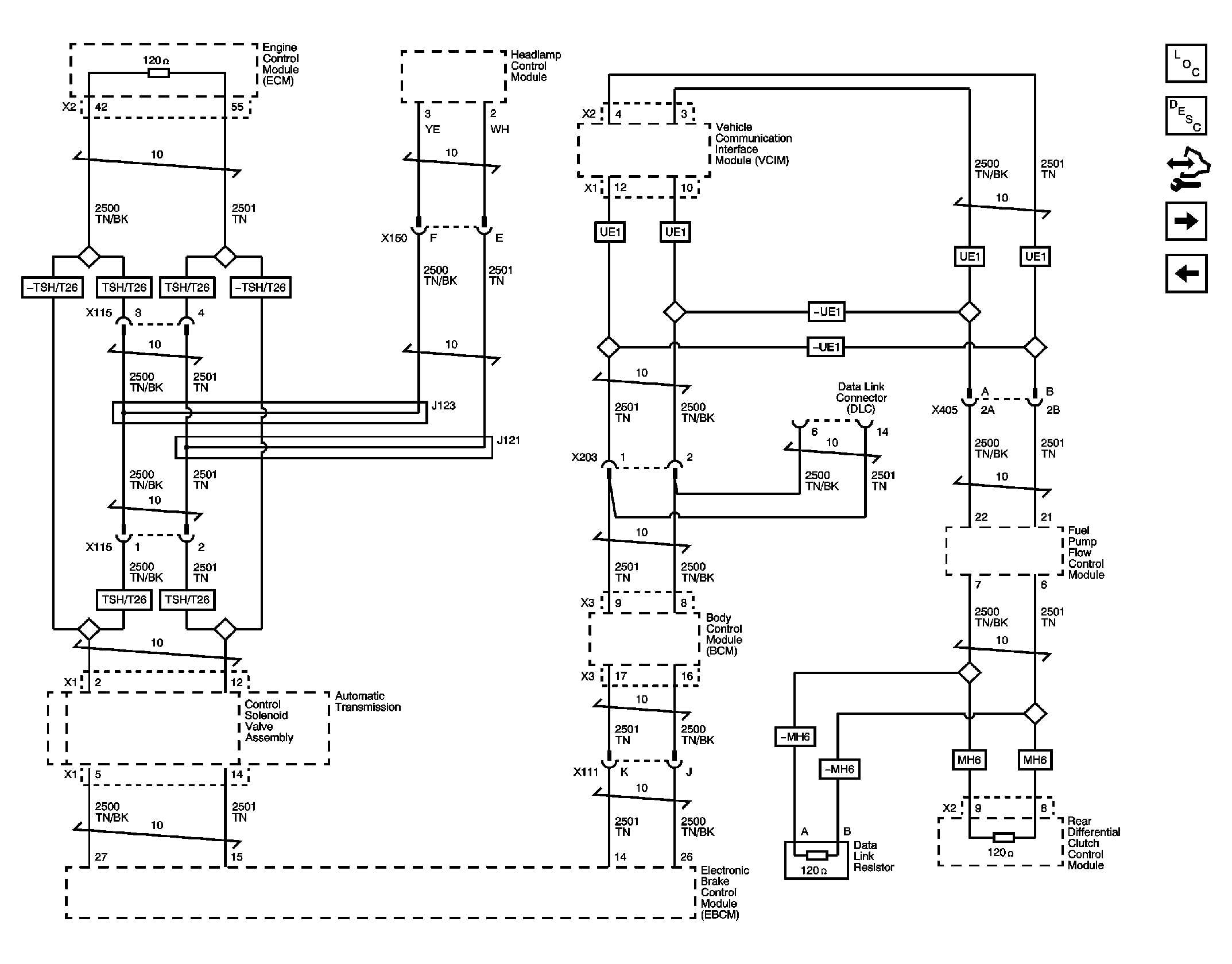

Fig 1: Wiring Schematic High Speed GMLAN
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
