Remote Function Wiring Schematics

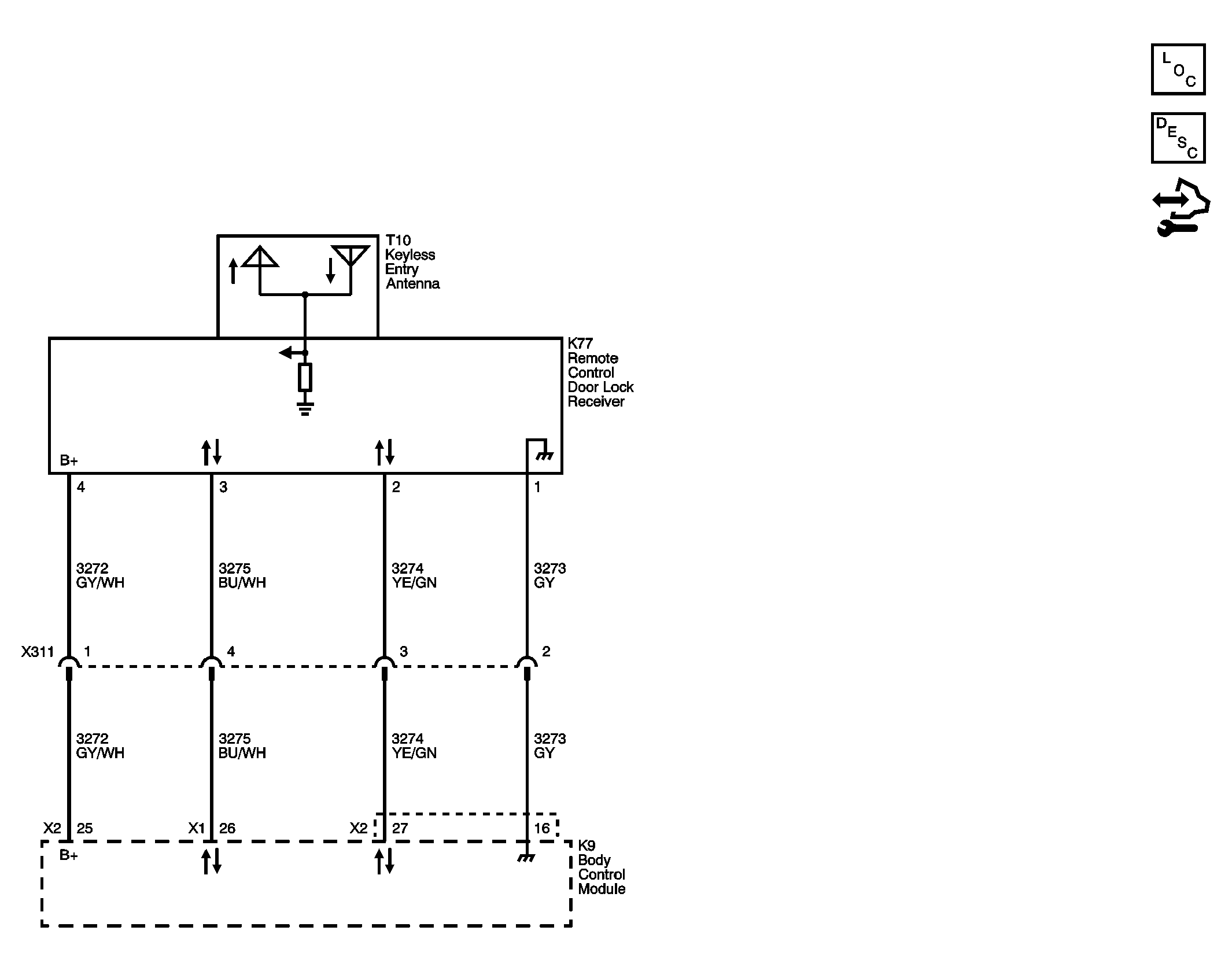

Fig 1: Keyless Entry Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
