Installation Procedure

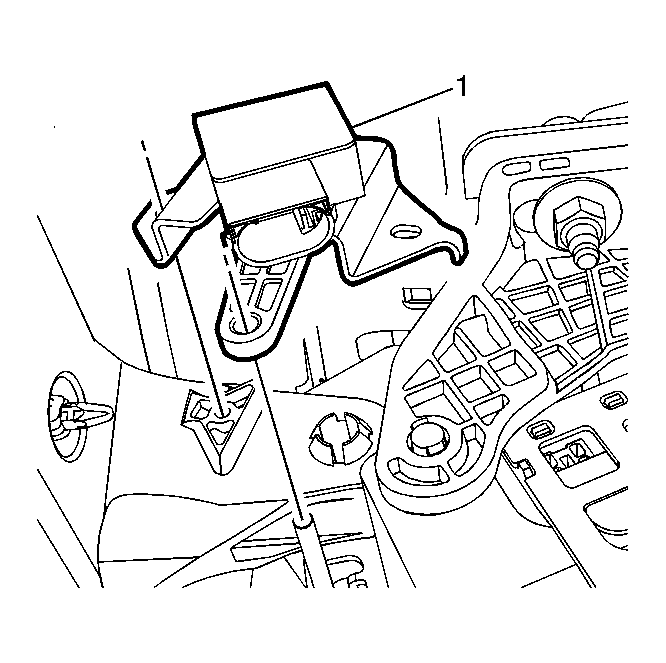

- Install the electronic brake control position sensor (1).

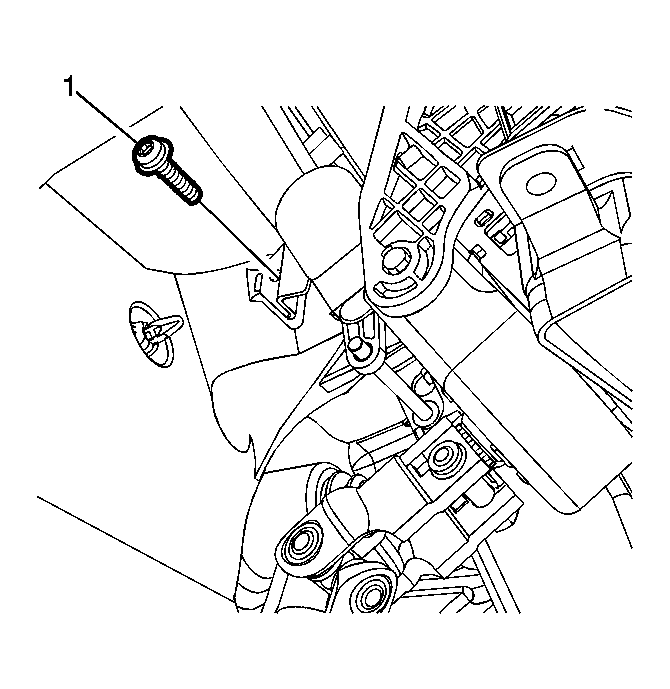

- Install the 2 electronic brake control position sensor bolts (1) and tighten to 9 N.m (80 lb in).
- Connect the electronic brake control position sensor electrical connector.
- Install the driver side inflatable restraint lower module. Refer to Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side .
- Inspect the battery state of charge. Refer to Battery Inspection/Test .
- If necessary, connect a battery charger to the 12V battery. Refer to Battery Charging .
- Install a scan tool to the vehicle.
- Place the power button in the ON position.
- Using the scan tool, perform the following steps:
- Select Diagnostics
- Select the appropriate vehicle information
- Select Chassis
- Select Electronic Brake Control Module (EBCM)
- Select Module Setup
- Select Electronic Brake Control Position Relearn and follow the instructions on the scan tool
NOTE:
Ensure the electronic brake control position sensor arm is properly located on the pin of the brake pedal.
CAUTION:
Refer to Fastener Caution
.
NOTE:
The power button must remain in the ON position during this procedure.
