Body Control Module Replacement

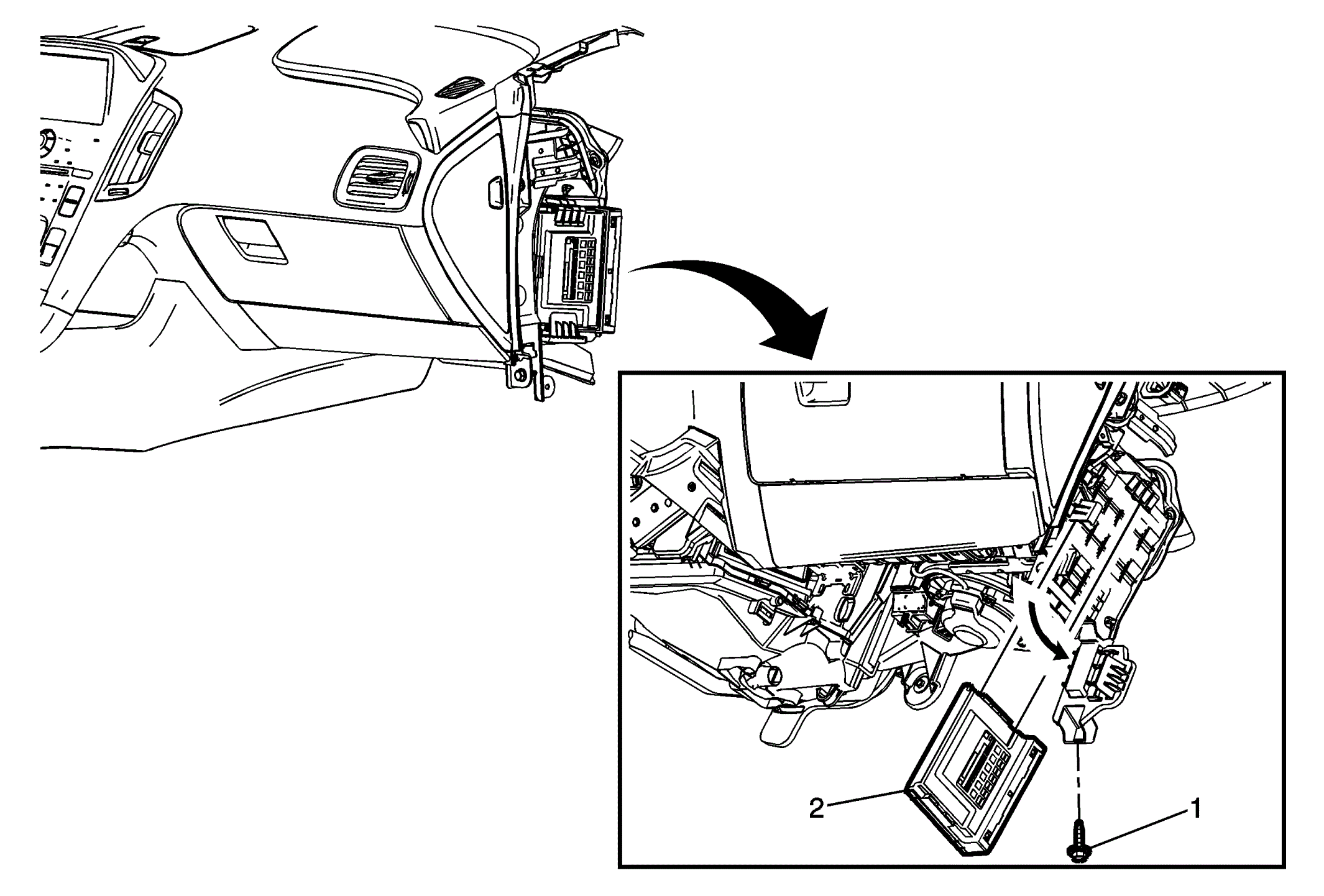

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement
1	Communication Interface Module Bracket Bolt CAUTION: Refer to Fastener Caution .
2	Body Control Module Procedure Open the bottom of the hinged bracket and slide the module downward. Disconnect the electrical connections. For programming and set up procedures, refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement

Communication Interface Module Bracket Bolt

CAUTION: Refer to Fastener Caution .

Body Control Module

Procedure
