Hybrid Powertrain Control Module 2 Replacement

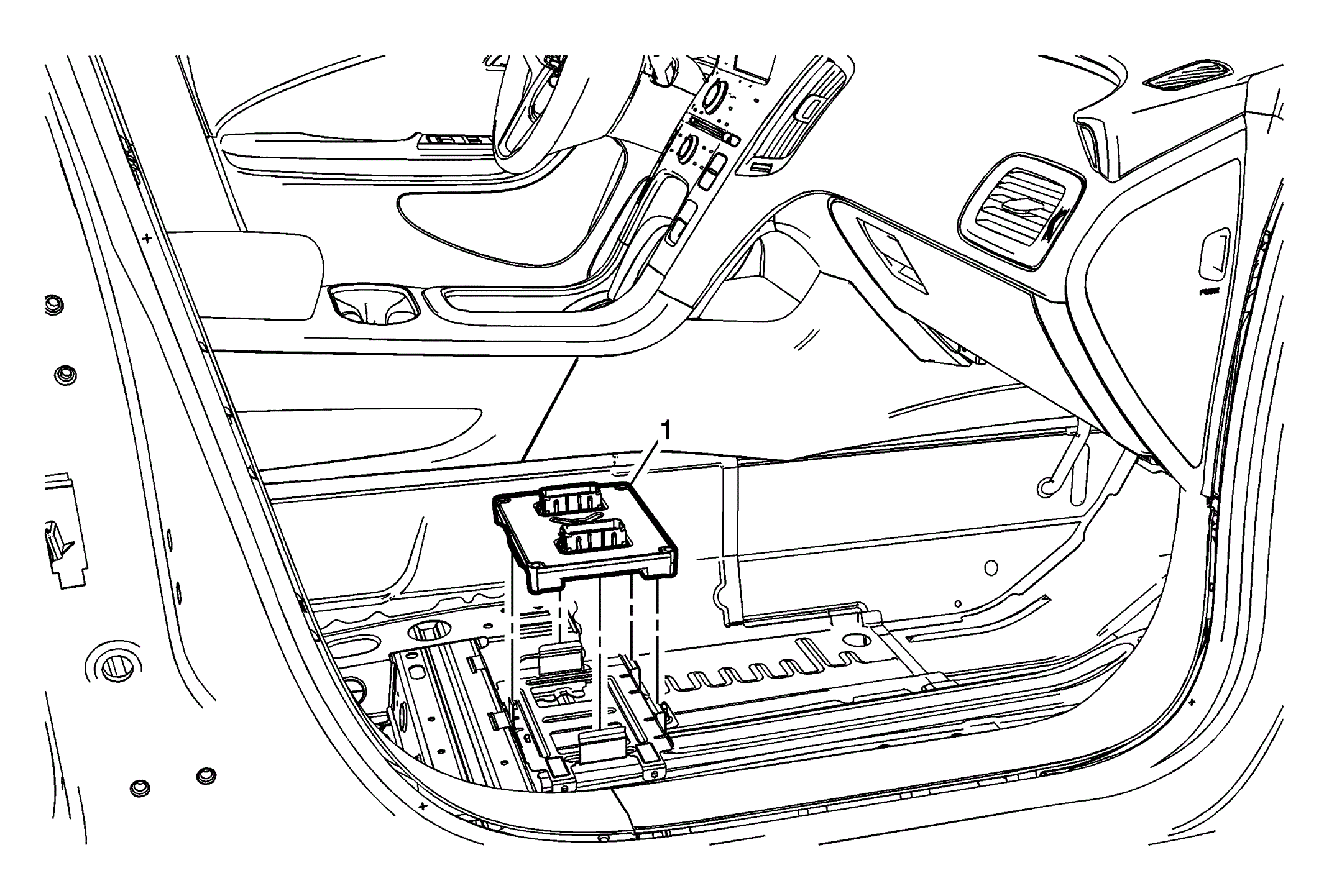

Fig 1: Hybrid Powertrain Control Module 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement
1	Interface Chassis Control Module Procedure Disconnect the electrical connections. Using the appropriate tool, gently disengage the module from the four retaining tabs on bracket. For programming and set up procedures, refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the front floor panel carpet. Refer to Front Floor Panel Carpet Replacement

Interface Chassis Control Module

Procedure

Disconnect the electrical connections.
Using the appropriate tool, gently disengage the module from the four retaining tabs on bracket.
For programming and set up procedures, refer to Control Module References
