Body Control System Schematics

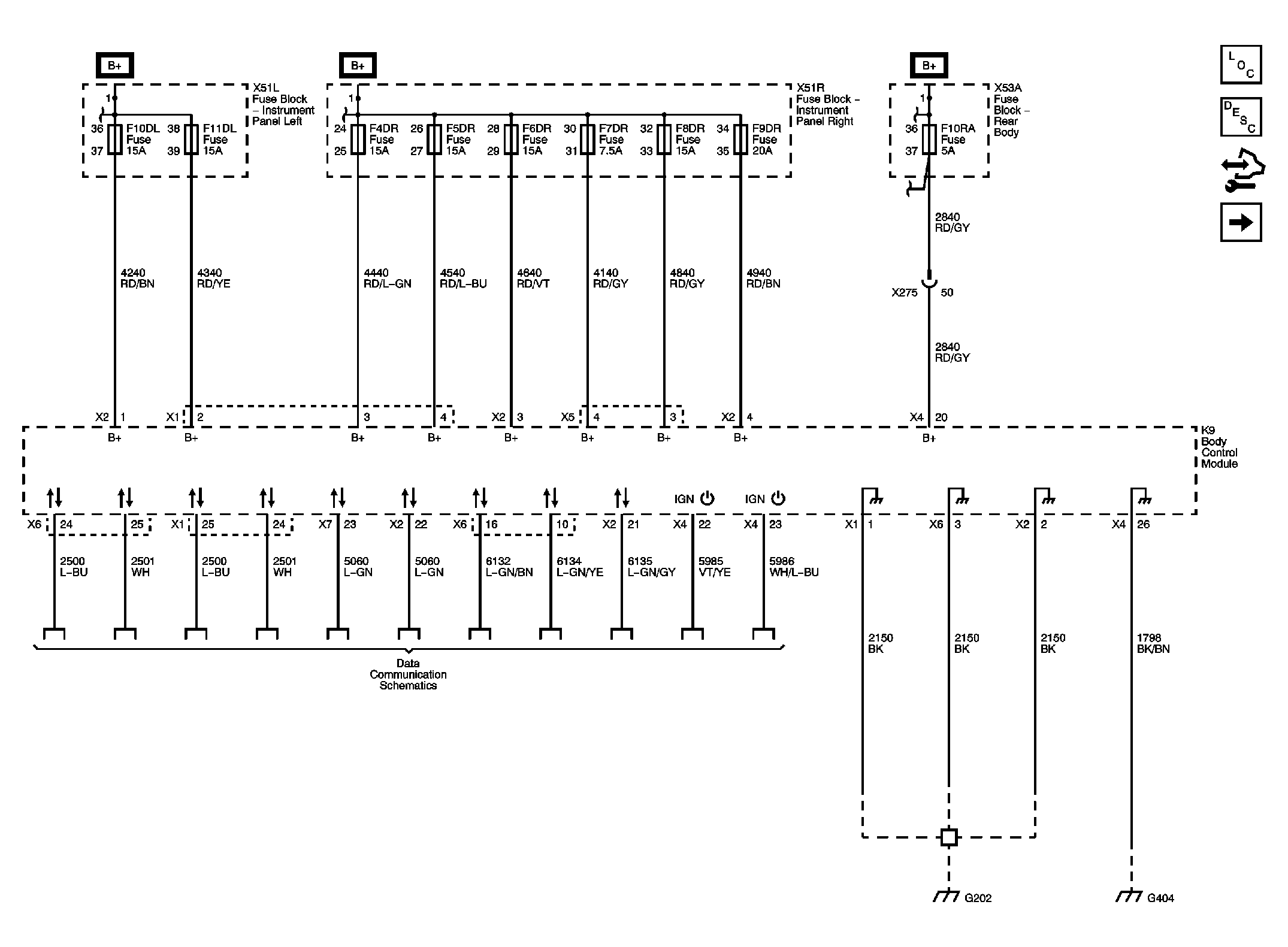

Fig 1: Power, Ground And Data Communication Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

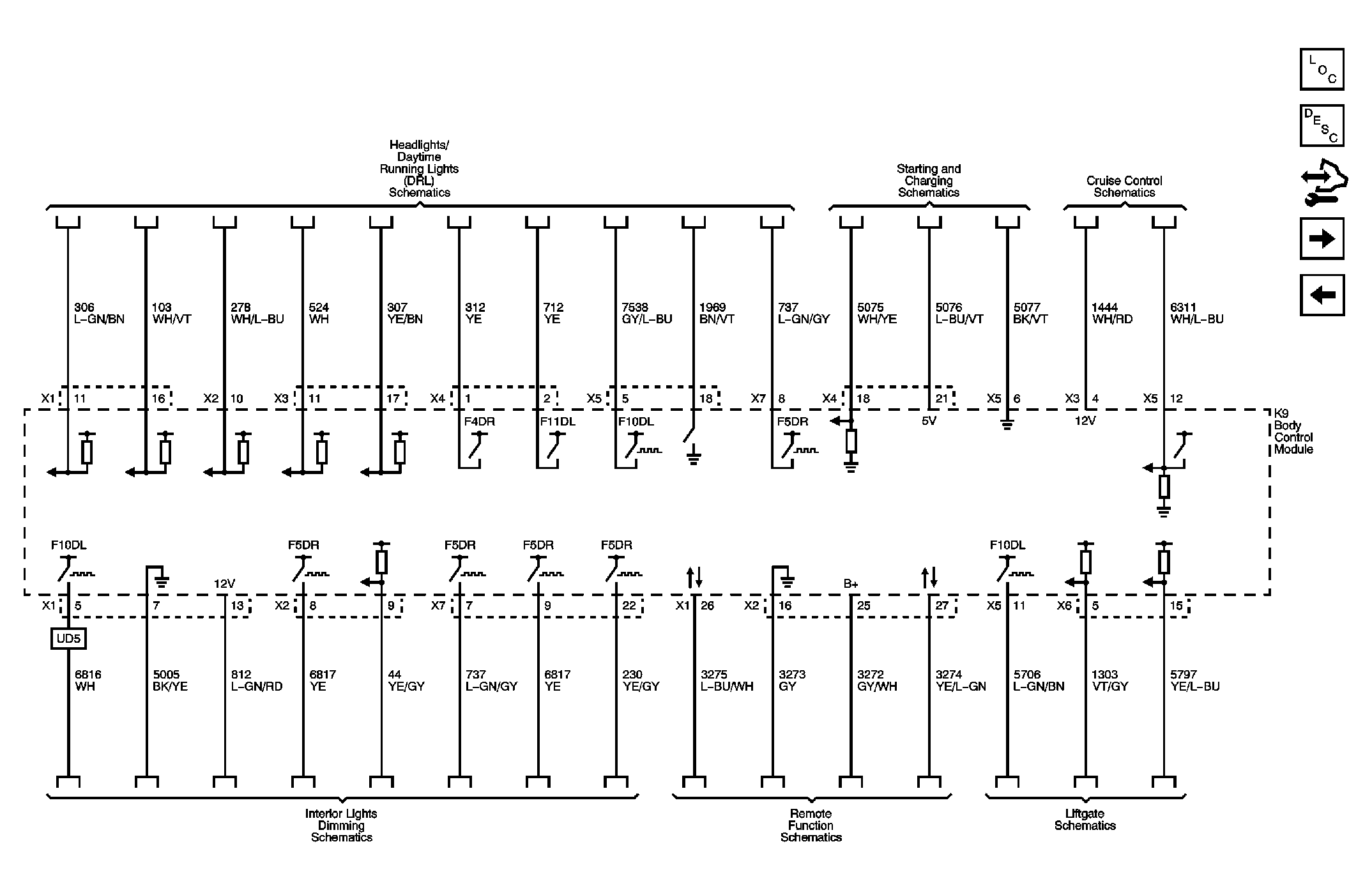

Fig 2: Headlights/Daytime Running Lights (DRL), Starting And Charging, Cruise Control, Interior Lights Dimming, Remote Function And Liftgate References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

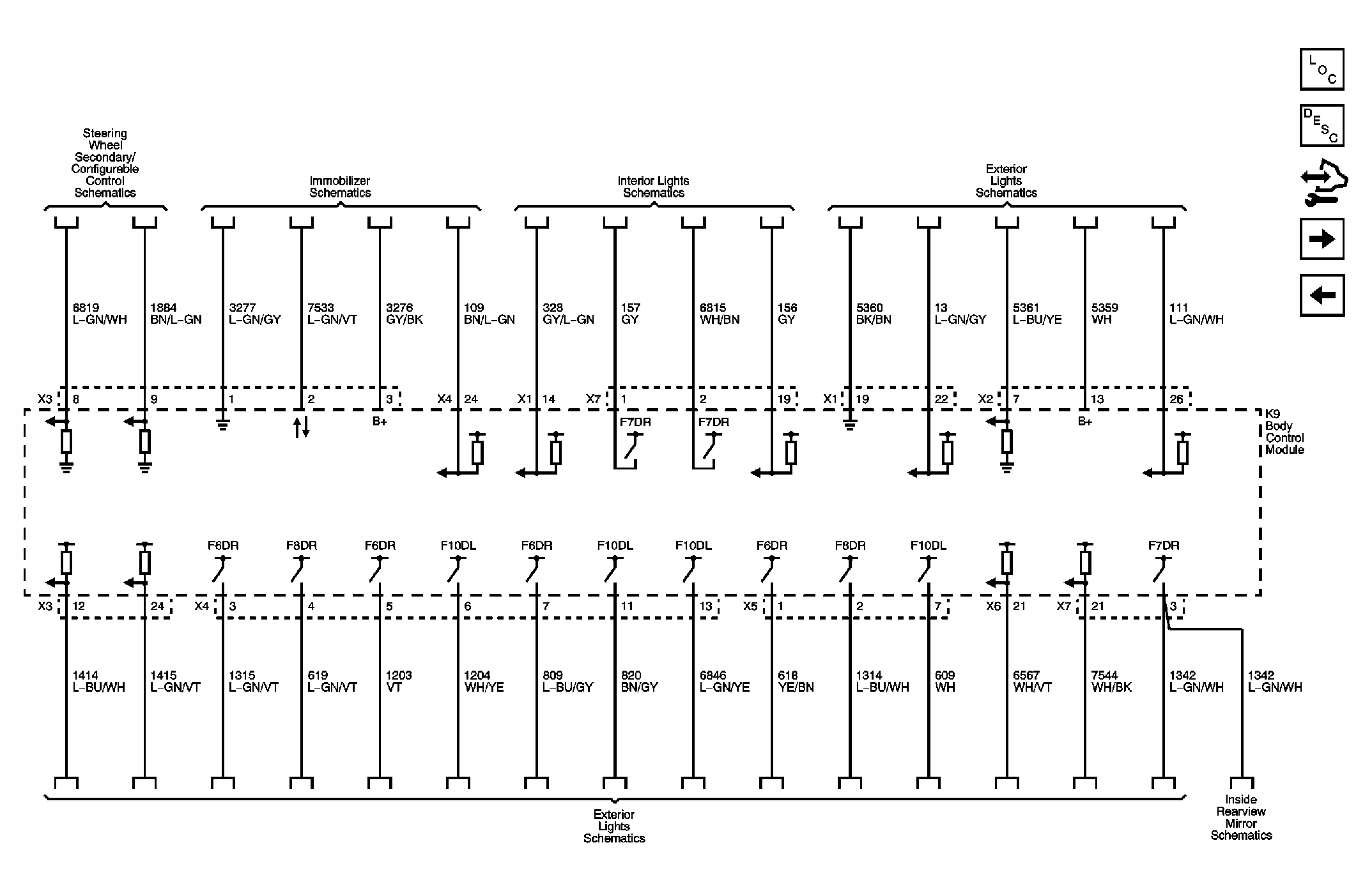

Fig 3: Steering Wheel Secondary/Configurable Control, Immobolizer, Interior Lights, Exterior Lights And Inside Rearview Mirror References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

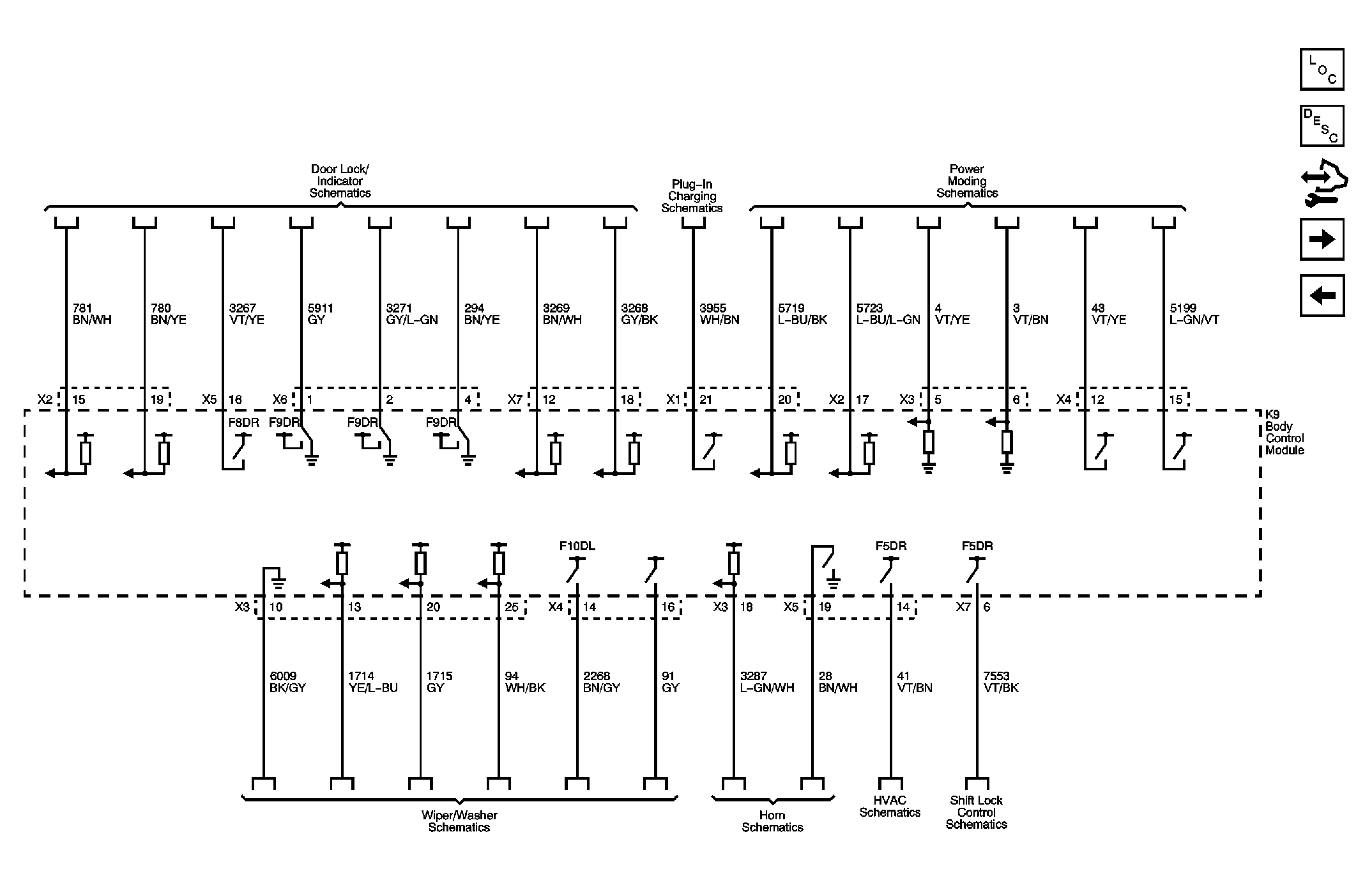

Fig 4: Door Lock/Indicator, Plug-In Charging, Power Moding, Wiper/Washer, Horn, HVAC And Shift Lock Control References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
