Data Communication Wiring Schematics

Fig 1: High Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

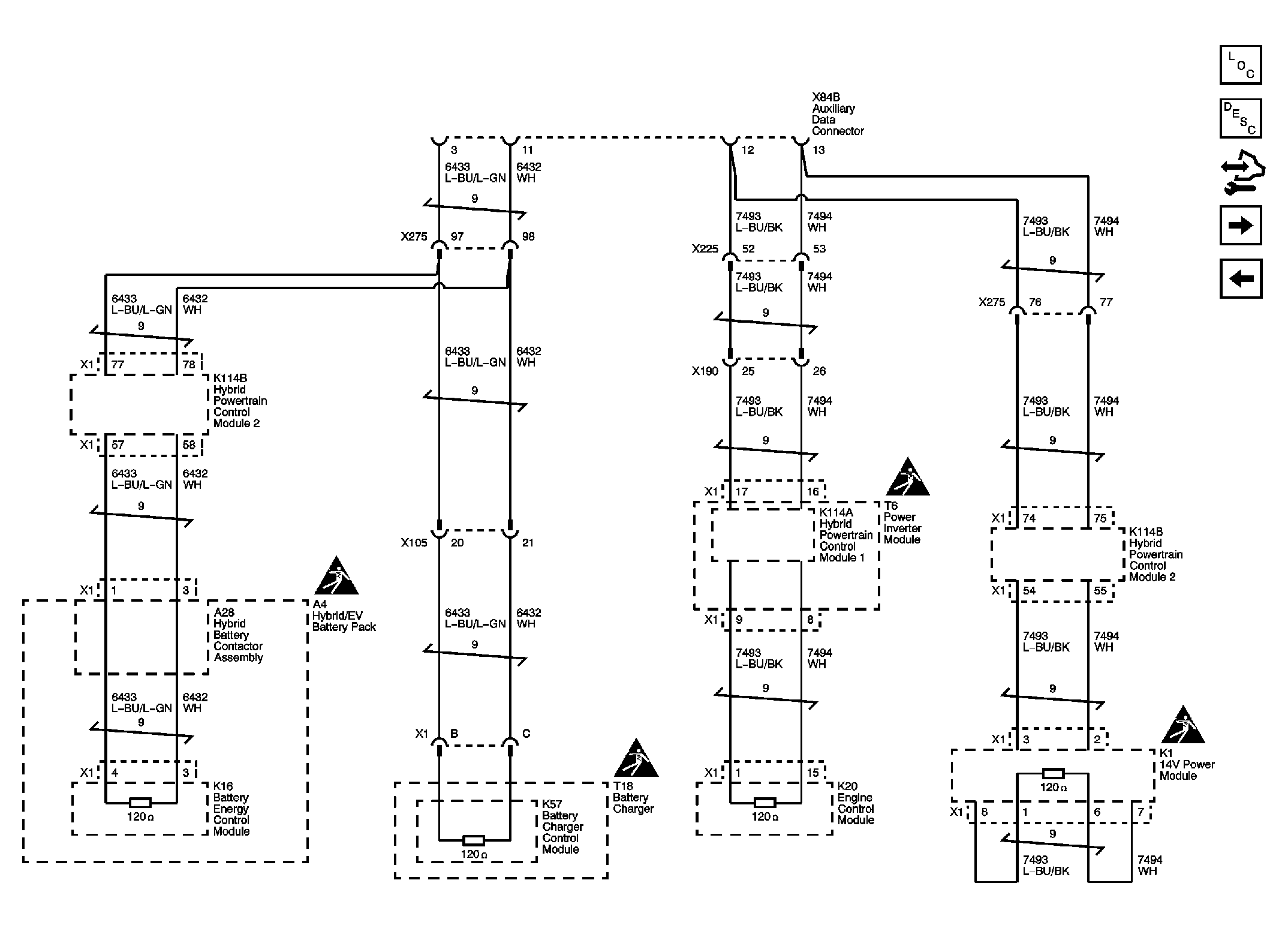

Fig 2: High Voltage Management And Powertrain Expansion Busses Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

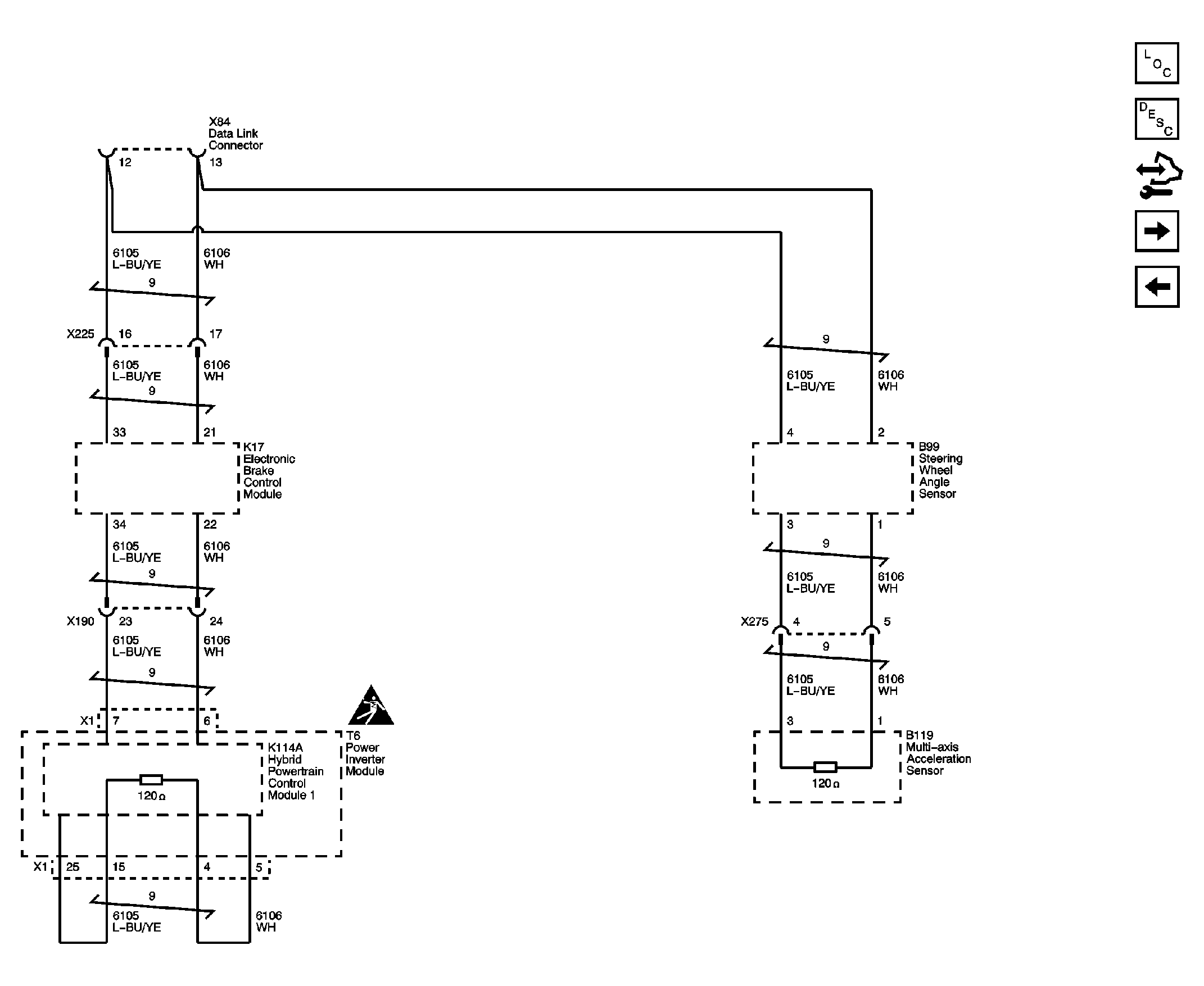

Fig 3: Chassis Expansion Bus Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

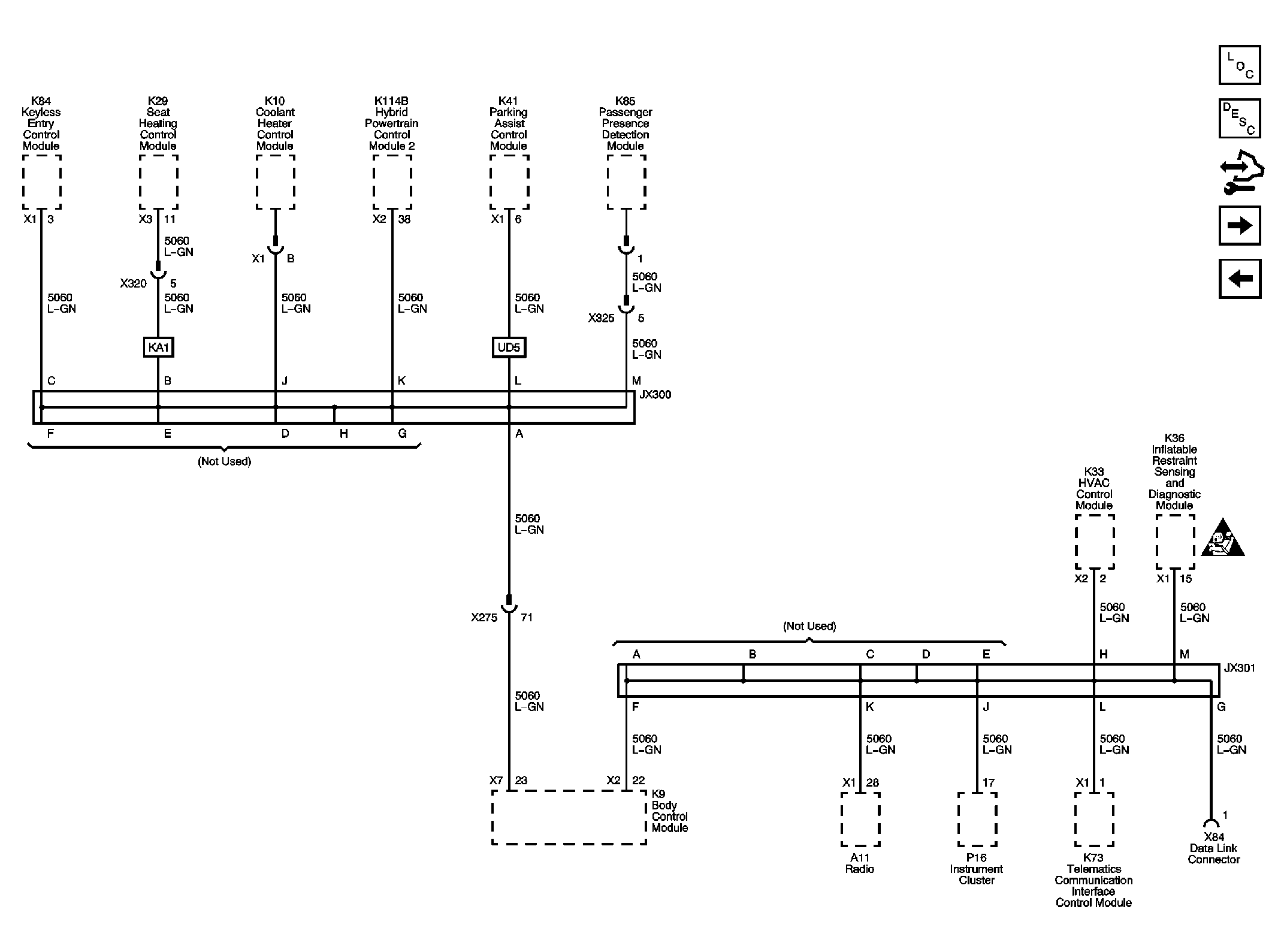

Fig 4: Low Speed CAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

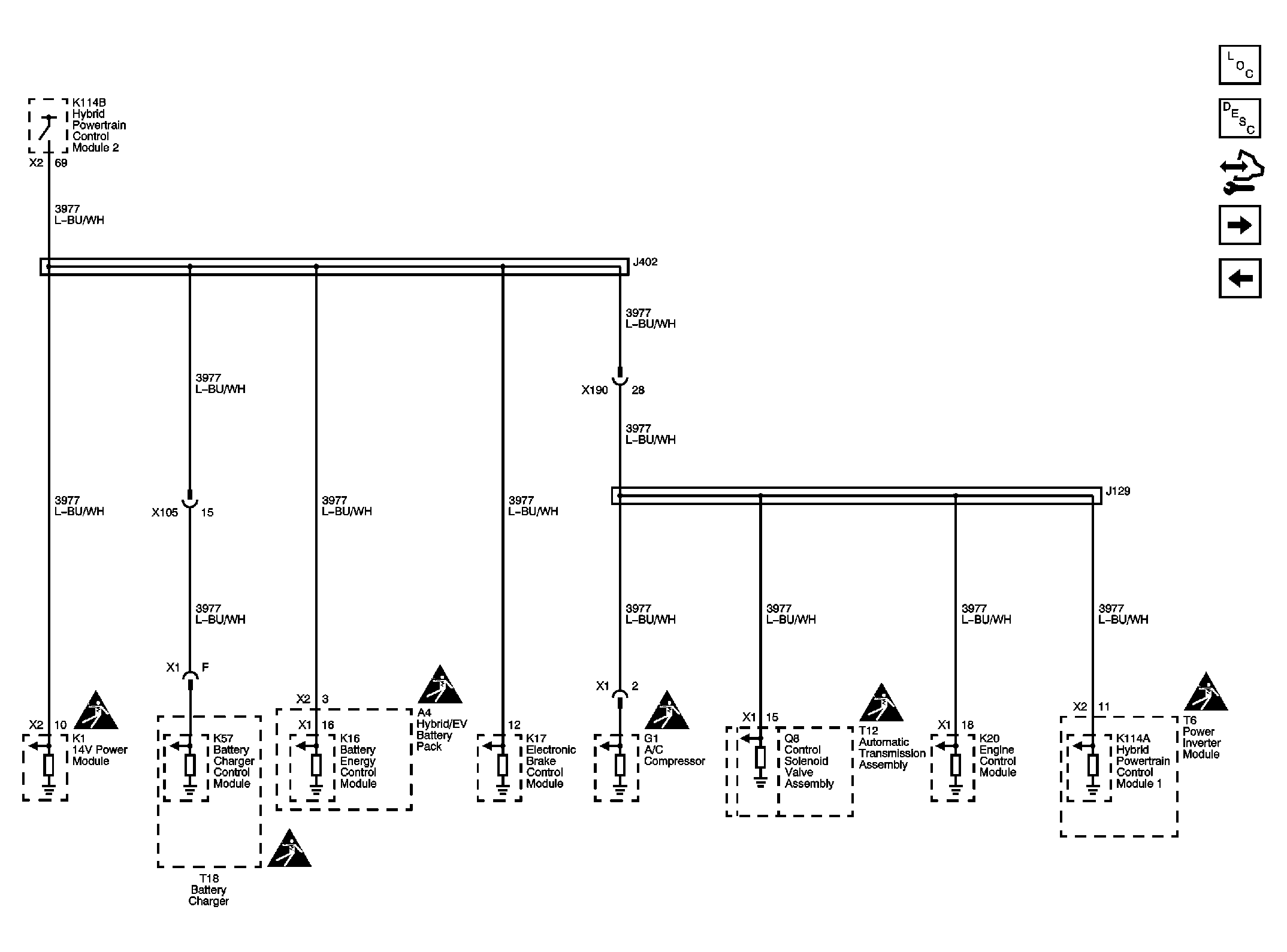

Fig 5: Communications Enable Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

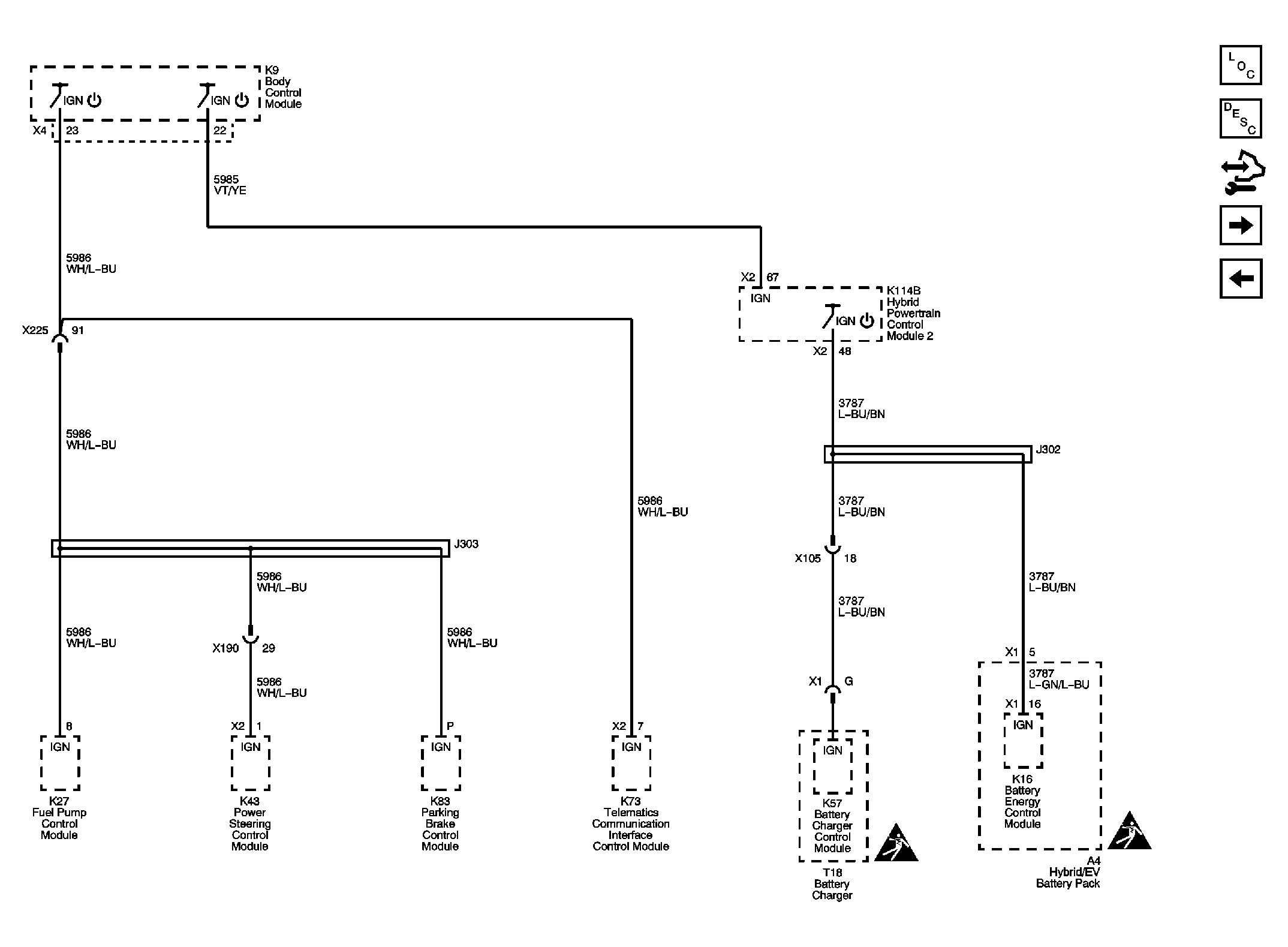

Fig 6: Serial Data Wake-Up

Courtesy of GENERAL MOTORS CORP.

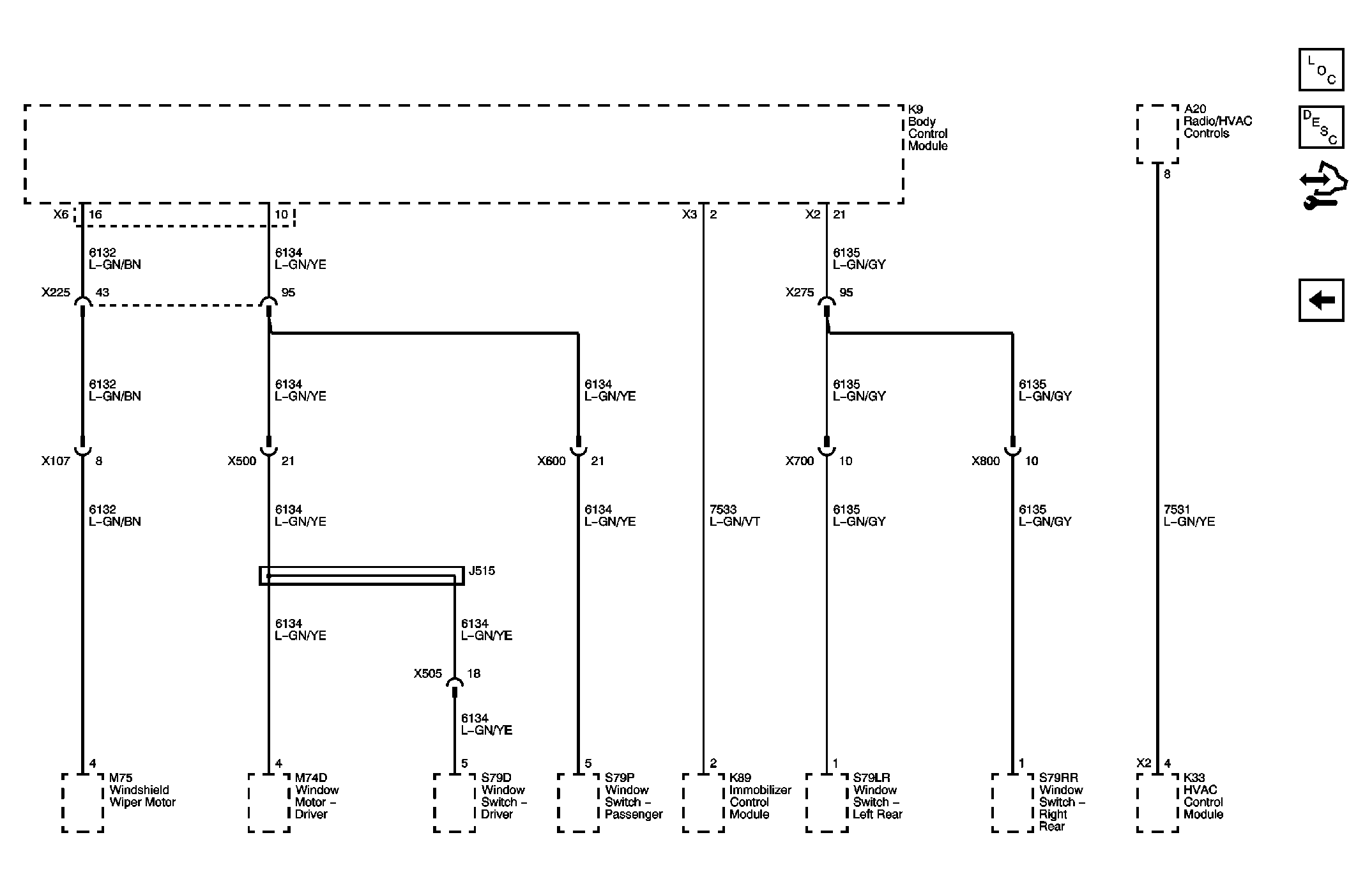

Fig 7: Linear Interconnect Network (LIN) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
