Power Steering Wiring Schematics

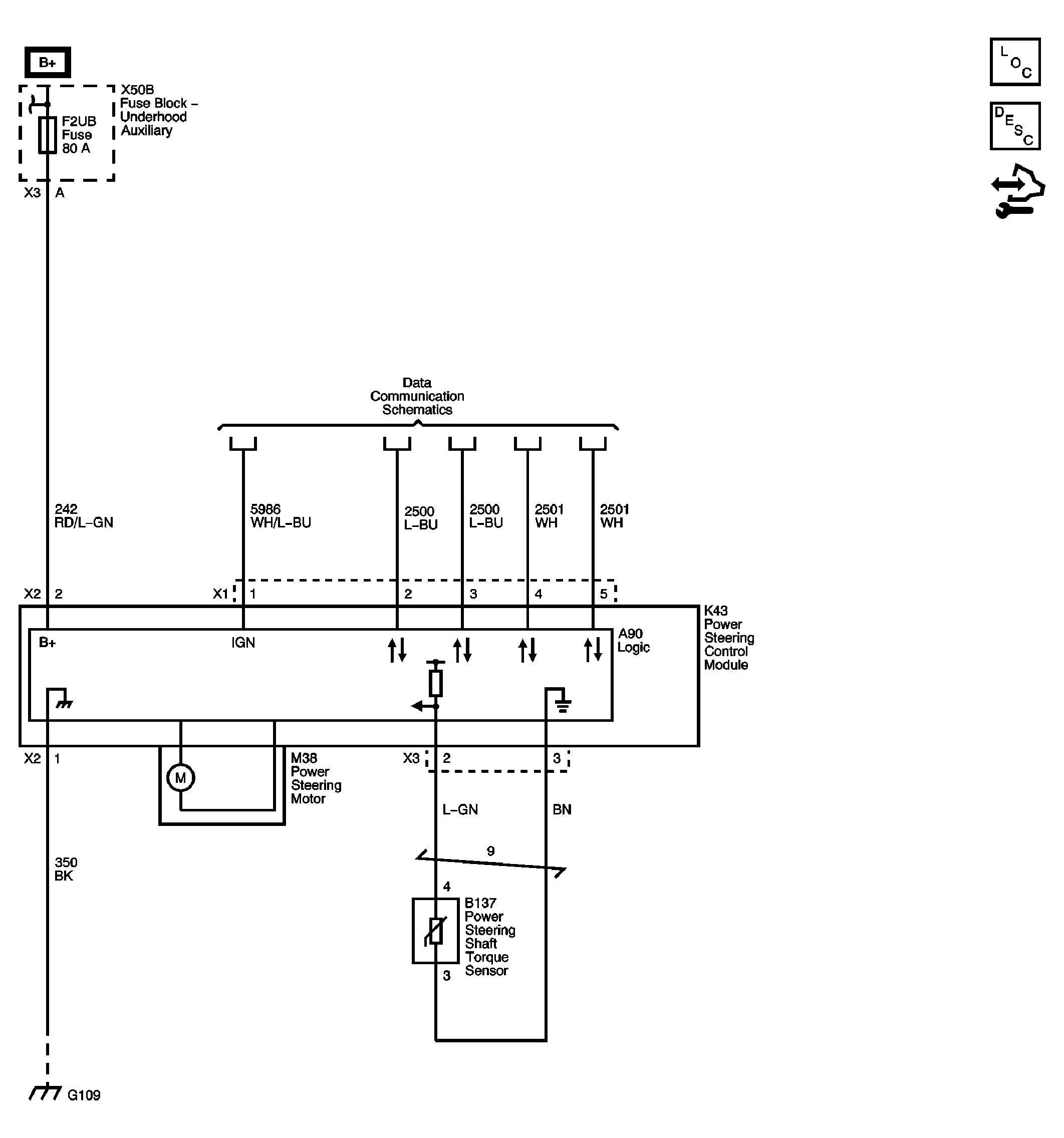

Fig 1: Power Steering Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
