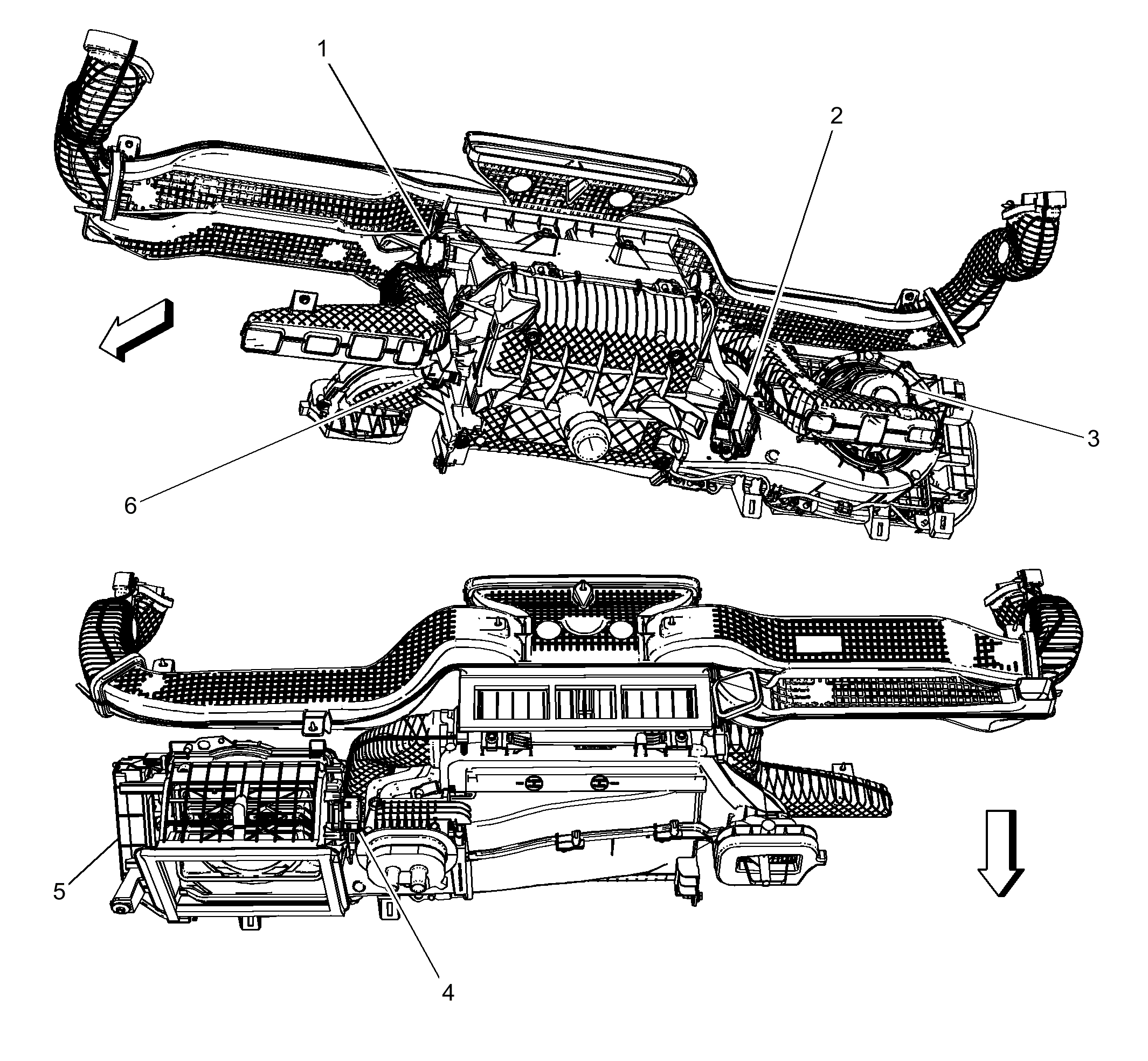

Front of Passenger Compartment HVAC Module Components
Front of Passenger Compartment HVAC Module Components
| Component Name |
Callout |
| M37 Mode Door Actuator |
1 |
| K8 Blower Motor Control Module |
2 |
| M8 Blower Motor |
3 |
| M46 Air Recirculation Door Actuator |
4 |
| K33 HVAC Control Module |
5 |
| M6 Air Temperature Door Actuator |
6 |
Courtesy of GENERAL MOTORS COMPANY
