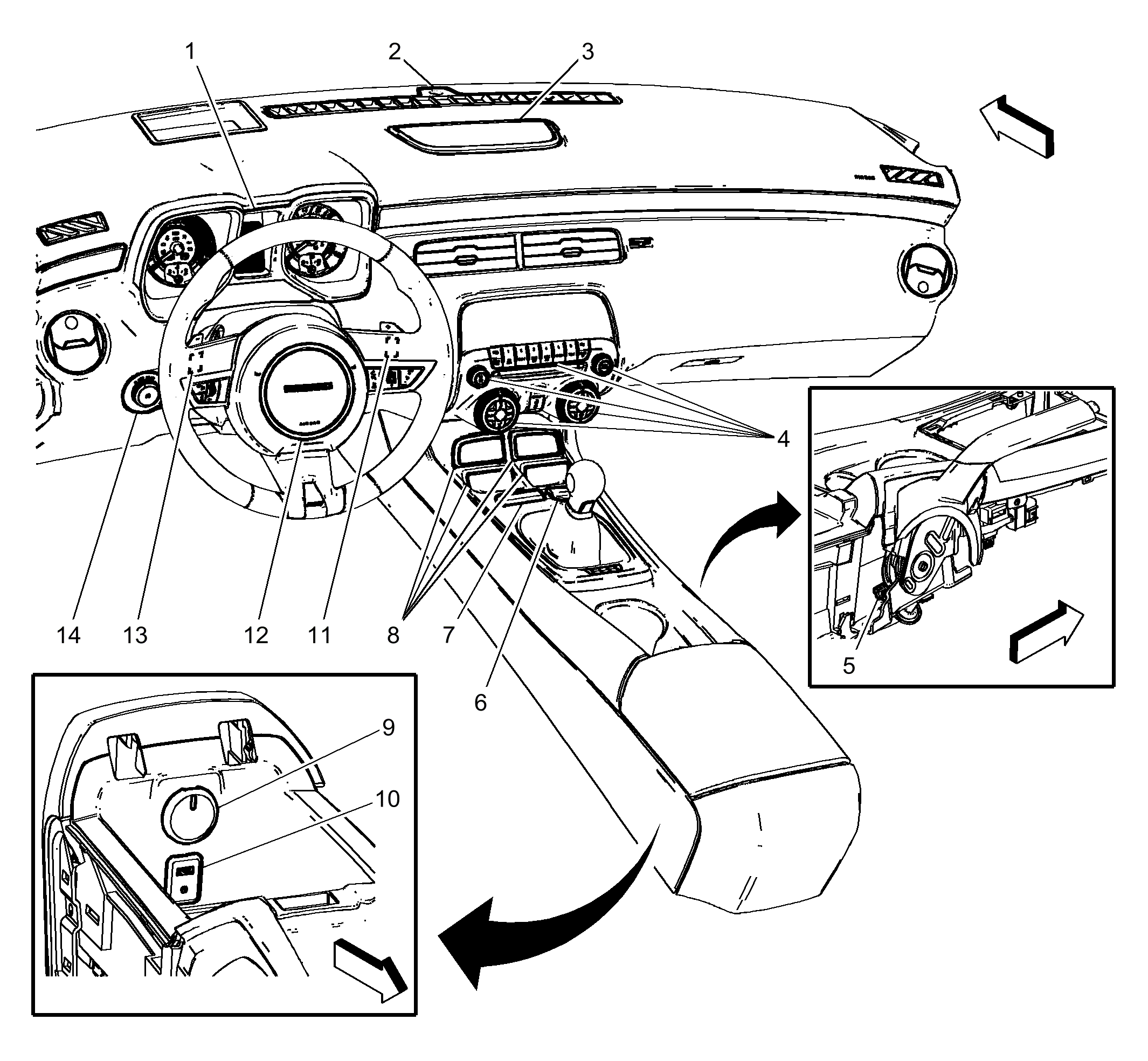

Instrument Panel and Center Console Components
Instrument Panel and Center Console Components
| Component Name | Callout |
|---|---|
| P16 Instrument Cluster | 1 |
| B10 Ambient Light Sensor | 2 |
| P19A Speaker - Center Instrument Panel (UQA) | 3 |
| A20 Radio/HVAC Controls | 4 |
| B80 Park Brake Switch | 5 |
| X80H Accessory Power Receptacle - Center Console | 6 |
| S75 Traction Control Switch without F55, or S48E Multifunction Switch Center Console with F55 | 7 |
| P26 Auxiliary Gauge Module (UMQ) | 8 |
| X80D Accessory Power Receptacle - Center Console Compartment | 9 |
| X83 Auxiliary Audio Input (USR) | 10 |
| S2R Automatic Transmission Manual Shift Switch - Right (MYB/MYC) | 11 |
| F107 Steering Wheel Air Bag | 12 |
| S2L Automatic Transmission Manual Shift Switch - Left (MYB/MYC) | 13 |
| S30 Headlamp Switch | 14 |
