Removal Procedure
- Remove the closeout/insulator panel from under the dashboard on the drivers side.

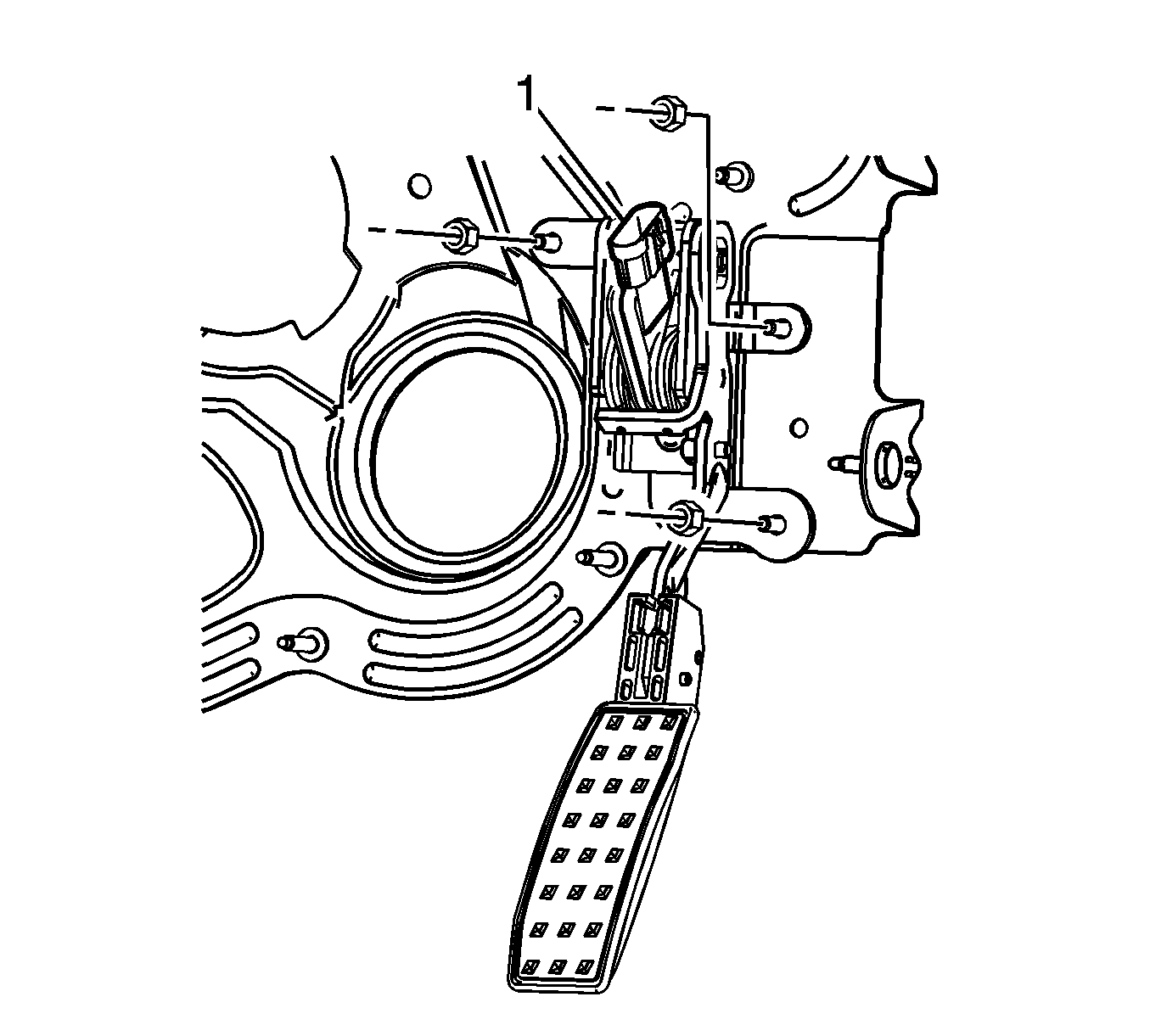

- Disconnect the accelerator pedal position (APP) sensor electrical connector from the accelerator pedal module.
- Remove the nuts from the APP sensor and remove the APP sensor from the front of dash.
CAUTION:
Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.
